DAILY INSPECTION A-5
4. SUPPLYING OIL IN DAILY MAINTENANCE

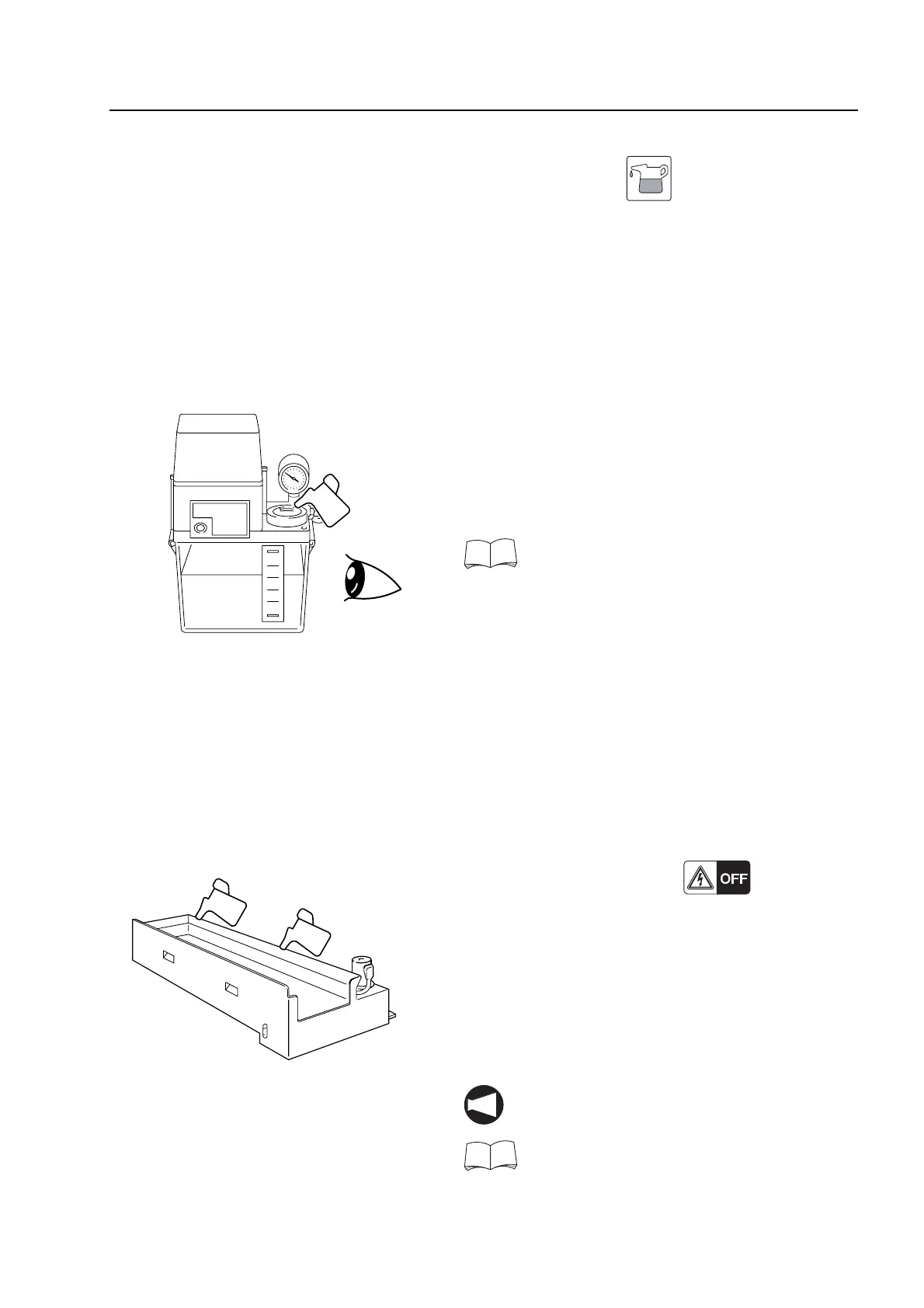

4.1 Supplying Oil to the Lubricating Oil Tank
If the oil level in the lubricating oil tank drops, an alarm indication is given. If this low lubricating oil
level alarm is given, supply lubricating oil.
<Procedure>
(Example: Showa Yuki 2 L)
1) Check the volume of oil in the lubricating oil tank with
the oil level gage installed on the lubricating oil tank.
2) Remove the cap on the oil supply port.
3) Supply the specified lubricating oil by using the oil jug
while checking the oil level with the oil level gage.
For the name and volume of the cooling oil,
refer to the OILING CHARTS in the
MAINTENANCE INFORMATION published
separately.
4.2 Supplying Coolant to the Coolant Tank
If the coolant level drops, an insufficient amount of coolant is supplied to the cutting tool. If cutting
is continued under such conditions, accuracy will be impaired and tool life shortened. If coolant
level drops, supply coolant to the coolant tank.
<Procedure>
1) Turn OFF the main power.
2) Wait until the coolant level is stabilized after all of the
remaining coolant inside machine is returned to the
coolant tank.
3) Check the volume of coolant in the coolant tank using
the oil level gage.
4) When coolant level is close to the red line on the oil
level gage
Supply coolant to the red line on the oil level gage.
Do not fill above the red line.
For the capacity of the coolant tank, refer to the
OILING CHARTS in the MAINTENANCE
INFORMATION published separately.
NOTE
To Next Page
