Moro PM 80A User Manual

Rev. 00 of 01.01.2009 13 / 29
3.6 CORRECT POSITIONING OF THE DIVERTER VALVE
For the correct positioning of the diverter valve follow this procedure:
 remove the valve handle.
 remove the valve cover.
 verify that the flat section of the diverter valve is at an angle of 45° in relation to the drive
side shaft.
 refit (and replace gasket and seal) the valve cover and handle.

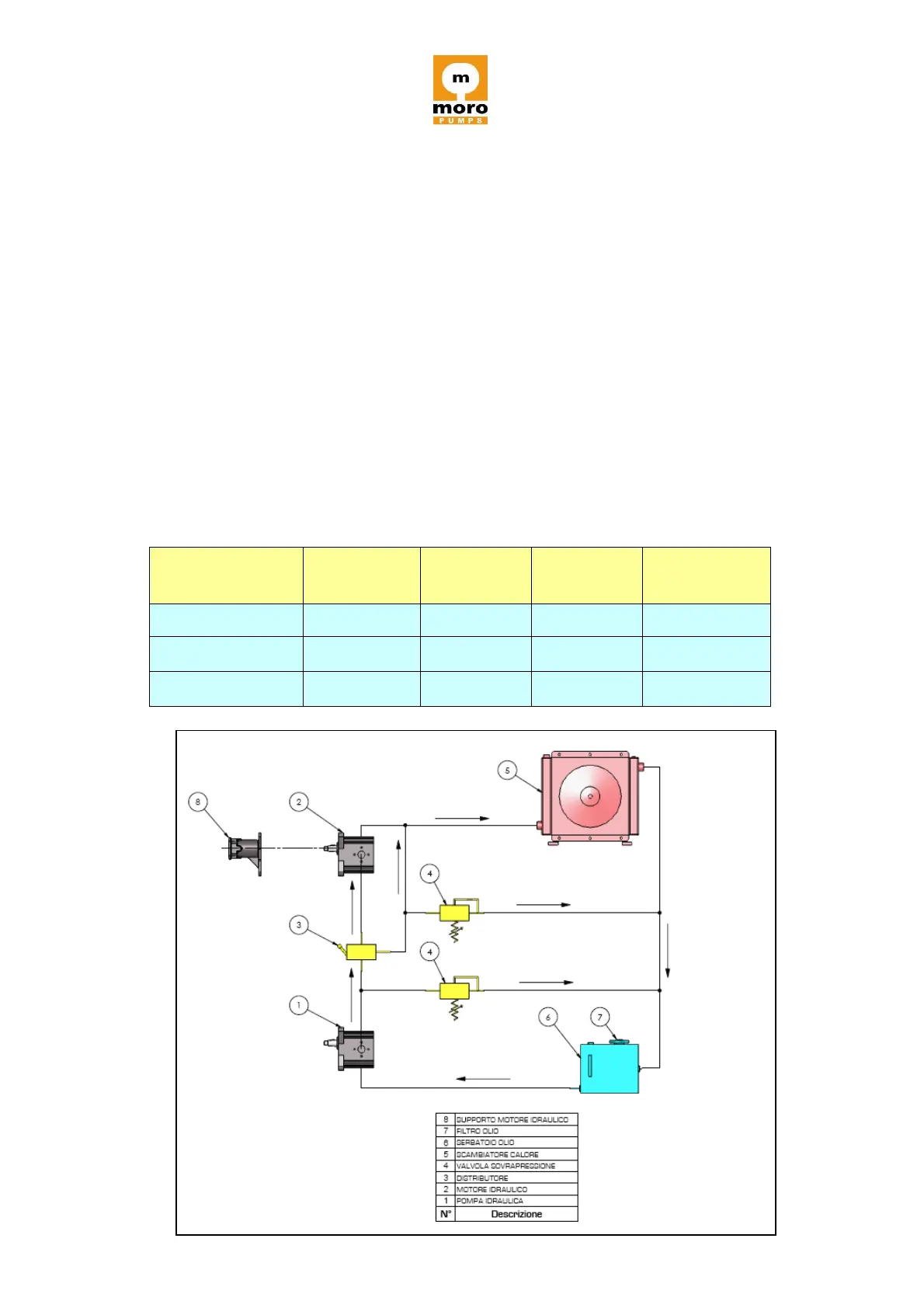

4. HYDRAULIC LAYOUT (VERSION AH)
The layout of the hydraulic system required for the operation of the vacuum pump version …AH
is indicated in Figure 2 and the technical features of the hydraulic motor in Table 2.
The keying of the hydraulic motor is of type DIN 5482 - Z=23.
Vacuum pump
Hydraulic
motor P/N
Flow rate
Pressure
Transmitted
power
PM 60 /AH
KM 40.73
28.27 gpm
2244 p.s.i.
28.16 hp
PM 70 /AH
KM 40.73
28.27 gpm
2457 p.s.i.
30.80 hp
PM 80 /AH
KM 40.109
36.19 gpm
2485 p.s.i.
40.22 hp
Table 2
