Motorola APX 3000 Quick Reference Guide

English
m
ASTRO
®
APX™ 3000
Digital Portable Radios
Quick Reference Card
RF Energy Exposure and Product Safety
Guide for Portable Two-Way Radios
ATTENTION!
This radio is restricted to Occupational use only.
Before using the radio, read the RF Energy Exposure
and Product Safety Guide for Portable Two-Way Radios
which contains important operating instructions for safe
usage and RF energy awareness and control for
Compliance with applicable standards and Regulations.

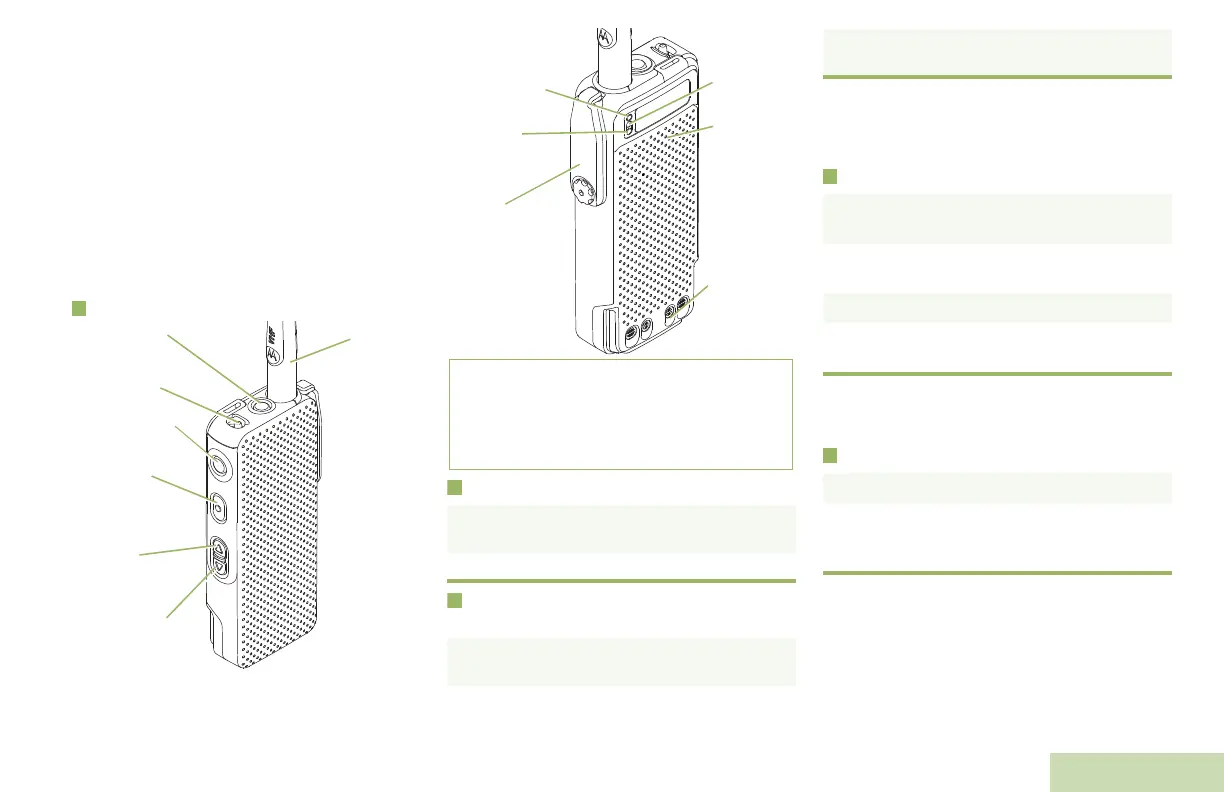

Radio Controls
Turning Radio On/Off
Control Buttons for Channels, Zone or
Volume
* MFB can be programmed to Top, Top Side and
Middle Side button. It can be configured to
support two features out of Volume, Channel or
Zone mode.
Making a Call
You may hear Channel Voice Announcement
upon entering channel or zone mode if
preprogrammed.
Sending an Emergency Alarm
***Default emergency button press timer is
set to 1 second. This timer is programmable,
see “Sending an Emergency Alarm” section in
the user guide for details.
To exit emergency at any time, press and hold
the Emergency button.
Top Button*
_______________
Up Arrow
Button**
____________
Antenna
Top Side Button*
______________
Middle Side
Button*
______________
Down Arrow
Button**
____________
On/Off Switch
IMPORTANT!
You must connect a speaker microphone,
earpiece or headset to hear the audio
indicators; and a GCAI DRSM to see the strings
and icons of your radio.
• On – Push the On/Off Switch downwards. You
see a Green Dot.
• Off – Push the On/Off Switch upwards.
• Multi-Functional Button (MFB)* – To toggle
between Volume, Channel or Zone mode.
• Up Arrow Button** – To increase volume; to
toggle the channels or zones up.
Side
Connector
Cover
Battery
Connector
Transmit/
Receive LED
Battery
Bluetooth
®
Pairing
Spot
Bluetooth
LED
• Down Arrow Button** – To decrease volume;
to toggle the channels or zones down.
1 Press the Multi-Functional Button* to the
desirable channel or zone mode.
2 Press the Up/Down Arrow Button to change
the channel/zone.
3 Adjust volume, if necessary.
4 Press the PTT button to transmit; release to
receive.
1 Press and release the Emergency button***.
2 When acknowledgment is received, you hear
four beeps; alarm ends; and radio exits
emergency.
