7 CONNECTING YOUR DCH RECEIVER
Connecting Your DCH Receiver to a Stereo TV (SDTV) and Stereo VCR

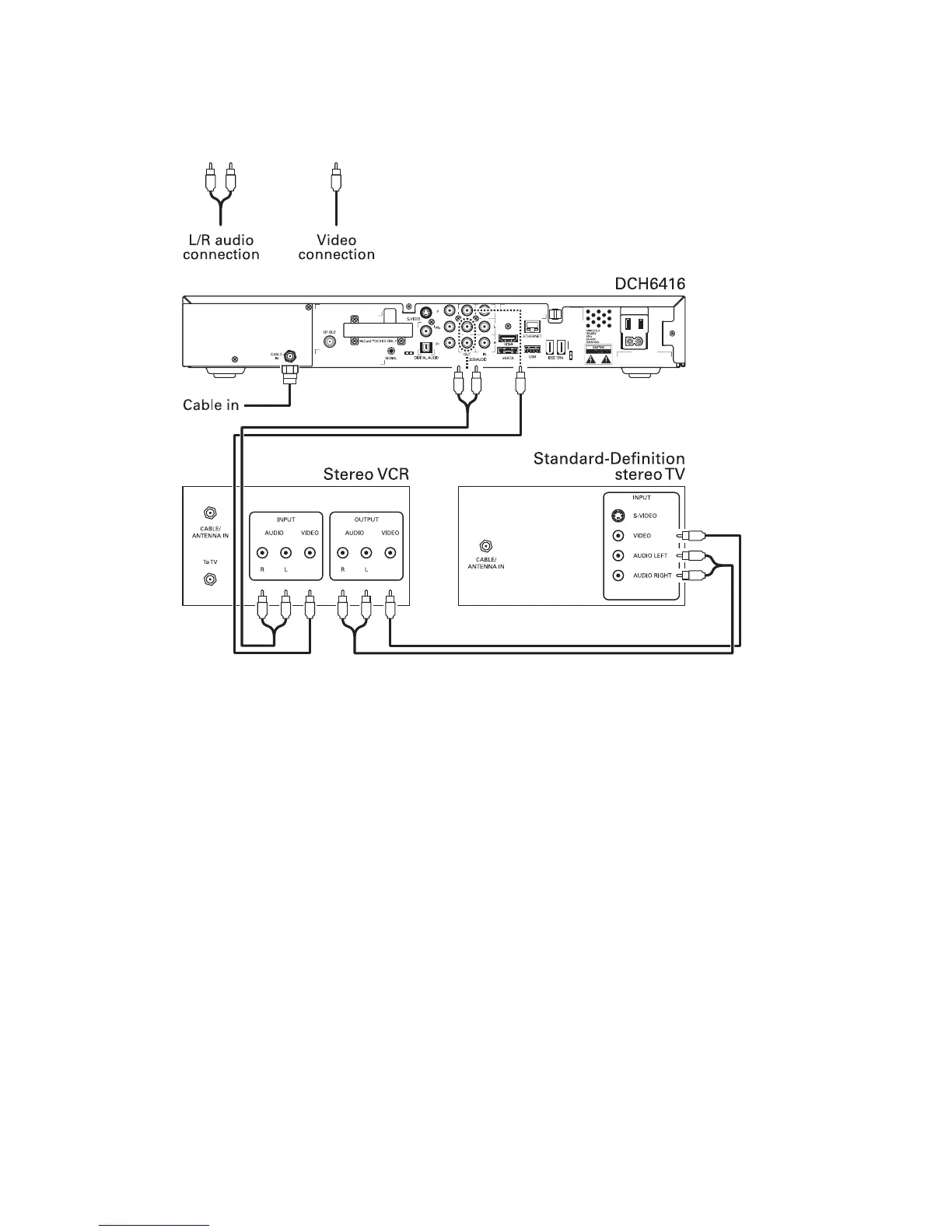

Connecting a Stereo TV (SDTV) and Stereo VCR
1. Connect a stereo audio cable to the AUDIO OUT L and R connectors on the
DCH6416 receiver and the
INPUT AUDIO L and R connectors on the stereo VCR.
2. Connect a video cable to the
VIDEO OUT connector on the DCH6416 receiver and
the
INPUT VIDEO connector on the stereo VCR.
3. Connect a stereo audio cable to the
OUTPUT AUDIO L and R connectors on the
Stereo VCR and the
INPUT AUDIO LEFT and RIGHT connectors on the Stereo TV
(SDTV).
4. Connect a video cable to the output video connector on the stereo VCR and the
input video connector on the Stereo TV (SDTV).
Note: You can also connect using the S-Video connectors if supported by your stereo
VCR.
These video connection methods do not support HD video. If you have an HDTV, see
Connecting your DCH Receiver to an HDTV — Video Only on page 19.
26
