SBV5220 VoIP Cable Modem User Guide 37

Wall Mounting the SBV5220

If you mount your SBV5220 on the wall, you must:

• Locate the unit as specified by the local or national codes governing residential or business cable TV and

communications services.

• Follow all local standards for installing a network interface unit/network interface device (NIU/NID).

If possible, mount the SBV5220 to concrete, masonry, a wooden stud, or other very solid wall material. Use

anchors if necessary, for example, if you must mount the unit on drywall.

To mount your SBV5220 on the wall:

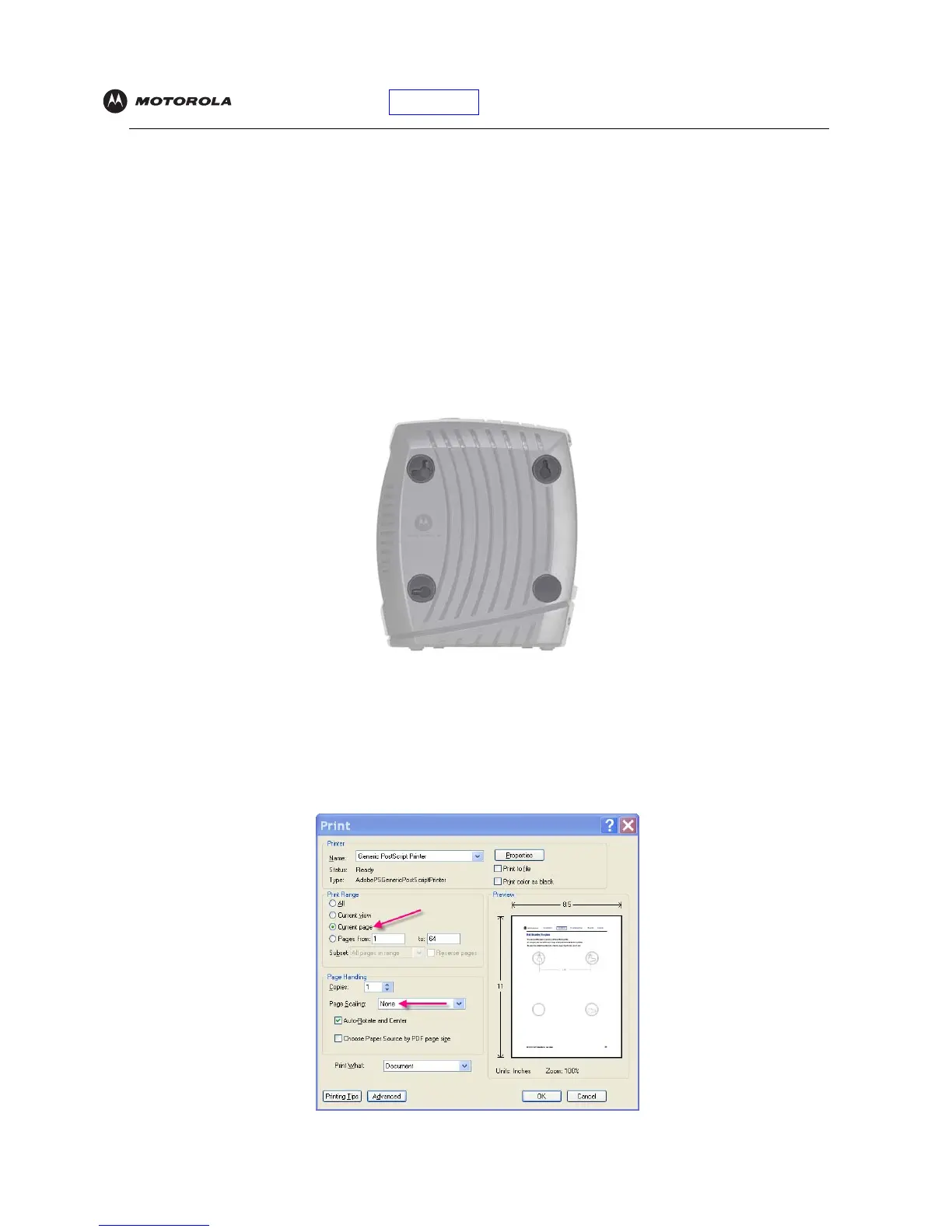

1 If present, remove the four rubber chassis feet on the bottom of the SBV5220 as indicated.

2 Print the Wall Mounting Template on page 39.

While viewing the Wall Mounting Template, click the Print icon or choose Print from the File menu to display

the Print dialog box. (The following image is from Adobe

Acrobat

Reader

running on Windows XP; there

may be slight differences in your version).

Under Print Range, select Current page. Be sure you print the template at 100% scale. Page scaling should

be set to None (100%). Click OK to print the template.
