21

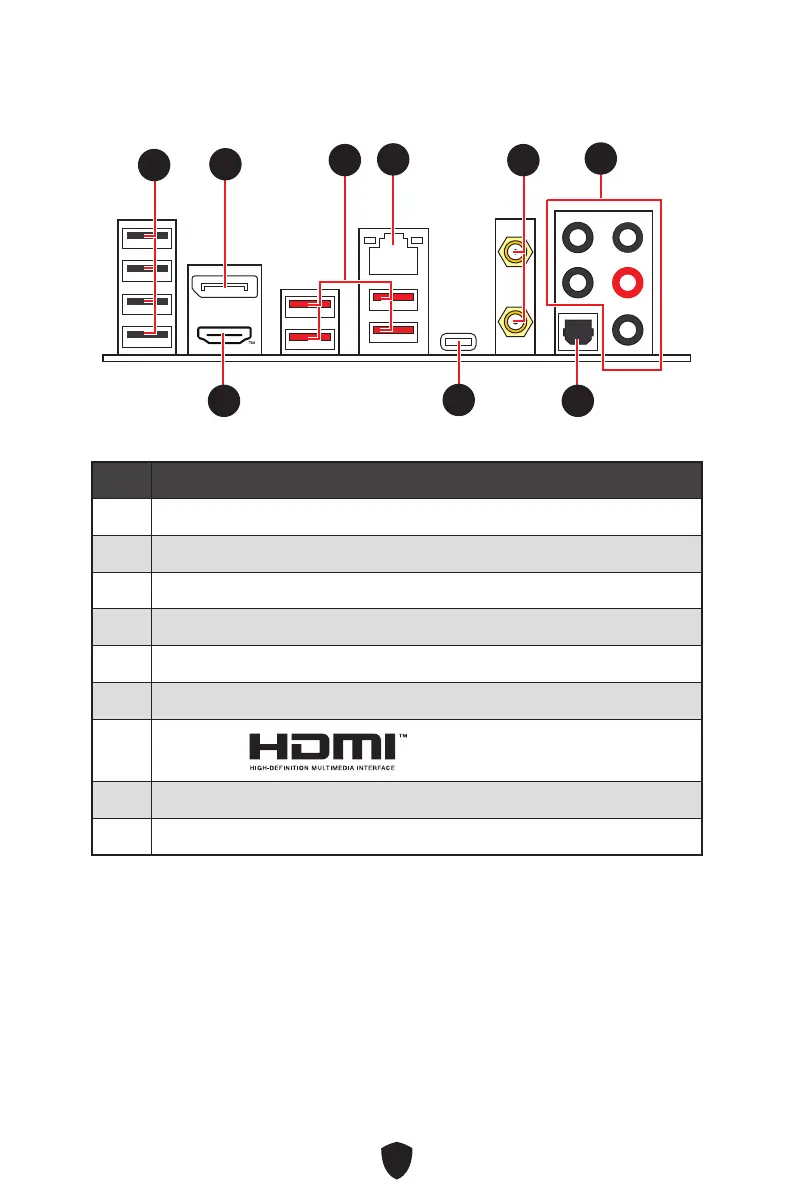

Back Panel Connectors
Item
Description
1
USB 2.0 Type-A ports (From Hub GL850G)
2
DisplayPort
3
USB 3.2 Gen 2 10Gbps Type-A ports (From GL3590 Hub)
4
2.5 Gbps LAN (RJ45) port
5
Wi-Fi antenna connectors
6
Audio jacks
7
HDMI™ port
8
USB 3.2 Gen 2x2 20Gbps Type-C port (From B760 chipset)
9
Optical S/PDIF Out connector
2
2
4
4
7
7
8
8
9
9
6
6
3
3
5
5
1
1
22
24
Table of Contents
Table of Contents
3
Quick Start
5
Specifications
17
Special Features
21
Package Contents
22
Back Panel Connectors
23
LAN Port LED Status Table
24
Audio Jacks Connection
24
Overview of Components
27
CPU Socket
28
DIMM Slots
29
PCI_E1~3: Pcie Expansion Slots
30
SATA_5~8: SATA 6Gb/S Connectors
30
M2_1~3: M.2 Slots (Key M)
31
JAUD1: Front Audio Connector
36
JFP1, JFP2: Front Panel Connectors
36
JCI1: Chassis Intrusion Connector
37
CPU_PWR1~2, ATX_PWR1: Power Connectors
38
JTBT1: Thunderbolt Add-On Card Connector
39
JTPM1: TPM Module Connector
39
JUSB4: USB 3.2 Gen 2 Type-C Front Panel Connector
40
JUSB3: USB 3.2 Gen 1 Connector
40
JUSB1~2: USB 2.0 Connectors
41
JDASH1 : Tuning Controller Connector
41
CPU_FAN1, PUMP_FAN1, SYS_FAN1~5: Fan Connectors
42
JBAT1: Clear CMOS (Reset BIOS) Jumper
43
BAT1: CMOS Battery
43
JRGB1~2: RGB LED Connectors
44
JARGB_V2_1~2: A-RAINBOW V2 (ARGB Gen2) LED Connectors
45
Onboard Leds
47
EZ Debug LED
47
Installing OS, Drivers & MSI Center
48
MSI Center
51
Uefi Bios
52
BIOS Setup
53
Resetting BIOS
54
Updating BIOS
54
