MSI 7D96-003R User Manual

29

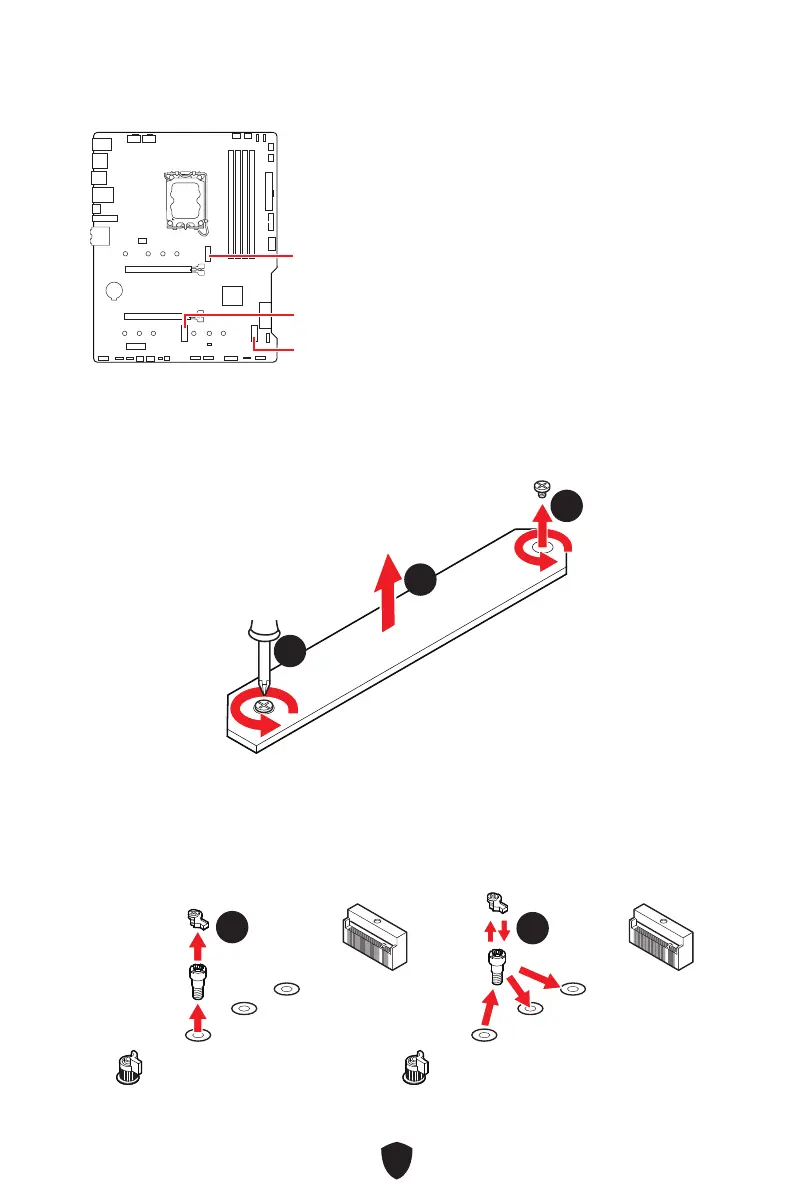

M2_1~3: M.2 Slots (Key M)
M2_1
M2_2
M2_3
⚠
Important
∙ Intel® RST only supports PCIe M.2 SSD with
UEFI ROM.
∙ If your M.2 SSD equips its own heatsink, please
remove the M.2 plates or rubber cubes in the
M.2 slots before installing M.2 SSD. Do not
re-install the heatsinks supplied with your
motherboard.
Installing M.2 module into M2_1 slot
1. Loosen the screws of M.2 Shield Frozr heatsink.
2. Lift up the M.2 Shield Frozr heatsink and remove it.
22
11
11
3. Remove or exchange the screws according to your SSD length. Skip this step, if you
install 2280 SSD.
33
33
22110
2260
2242
