MSI 865PE/G Neo2-P MS-6728 User Manual

2-14
MS-6728 ATX Mainboard
RJ-45 LAN Jack: 10/100 LAN (8100C) /Giga-bit LAN (8110S)
(Optional)
The mainboard provides two standard RJ-45 jacks for connection to
Local Area Network (LAN). Giga-bit LAN enables data to be transferred at
1000, 100 or 10Mbps. You can connect a network cable to either LAN jack.

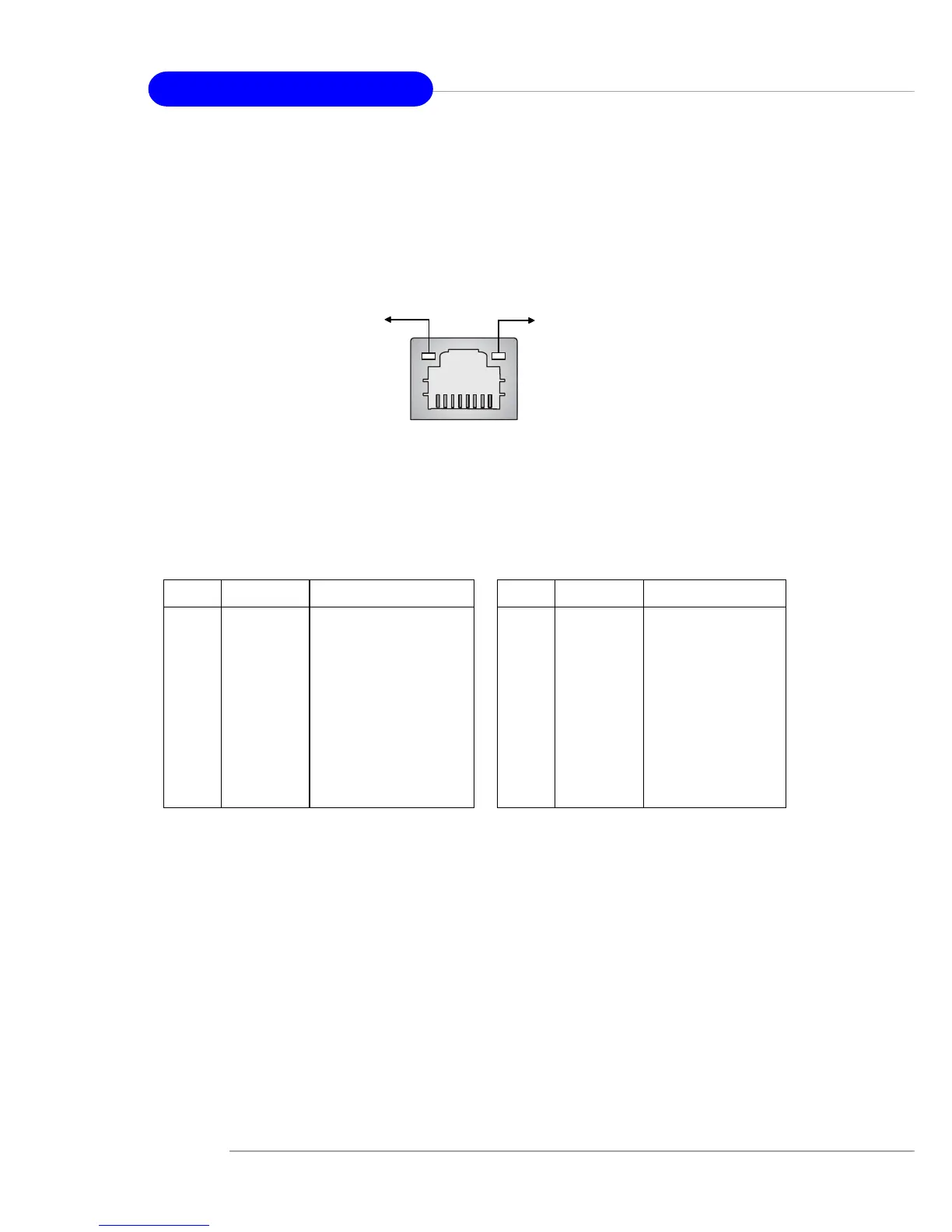

RJ-45 LAN Jack
Link Indicator
8 1
Activity Indicator
The pin assignments vary depending on the transfer rates: 10/100Mbps
or 1000Mbps. Note that Pin 1/2, 3/6, 4/5, 7/8 must work in pairs. Please refer
to the following for details:
10/100 LAN Pin Definition Giga-bit LAN Pin Definition
PIN SIGNAL DESCRIPTION
1 D0P Differential Pair 0+
2 D0N Differential Pair 0-
3 D1P Differential Pair 1+
4 D2P Differential Pair 2+
5 D2N Differential Pair 2-
6 D1N Differential Pair 1-
7 D3P Differential Pair 3+
8 D3N Differential Pair 3-
PIN SIGNAL DESCRIPTION
1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used
