MSI A320M gaming pro User Manual

15
󴘭󸉕 󴘭󸉕

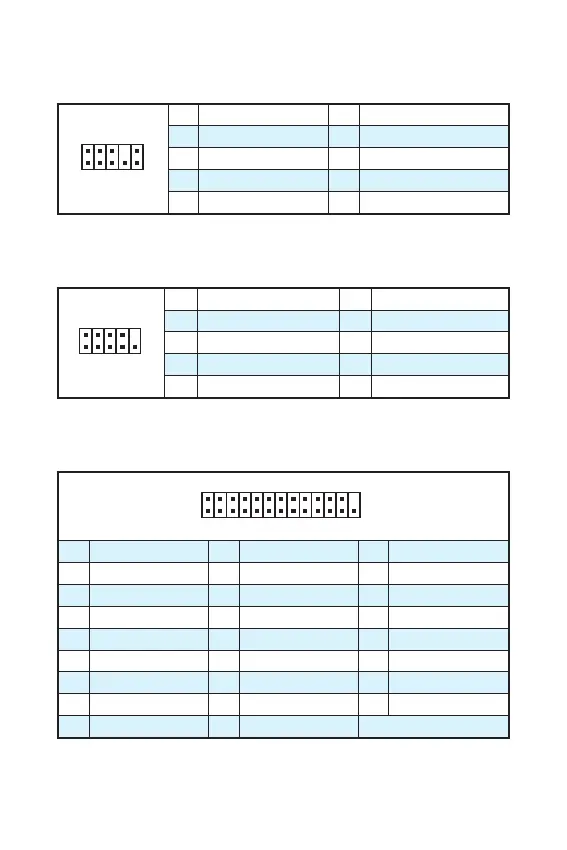

JAUD1: 
󳰙󶪓
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
JCOM1: 
󱝑󳰛󶪔
1
2 10
9
1 DCD 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No Pin
1
2 26
25
1 RSTB# 2 AFD# 3 PRND0
4 ERR# 5 PRND1 6 PINIT#
7 PRND2 8 LPT_SLIN# 9 PRND3
10 Ground 11 PRND4 12 Ground
13 PRND5 14 Ground 15 PRND6
16 Ground 17 PRND7 18 Ground
19 ACK# 20 Ground 21 BUSY
22 Ground 23 PE 24 Ground
25 SLCT 26 No Pin
JLPT1: 
󱝑󳰙󶪓

MSI A320M gaming pro Specifications

General

Form Factor	Micro ATX
Chipset	AMD A320
Socket	AM4
Memory Slots	2 x DIMM
Maximum Memory	32 GB
Storage Interface	4 x SATA 6Gb/s
LAN	Realtek 8111H Gigabit LAN
Memory Speed	3200(OC) MHz
PCIe Slots	1 x PCIe 3.0 x16
USB Ports	6 x USB 2.0
Audio	Realtek ALC887
Video Outputs	1 x HDMI
