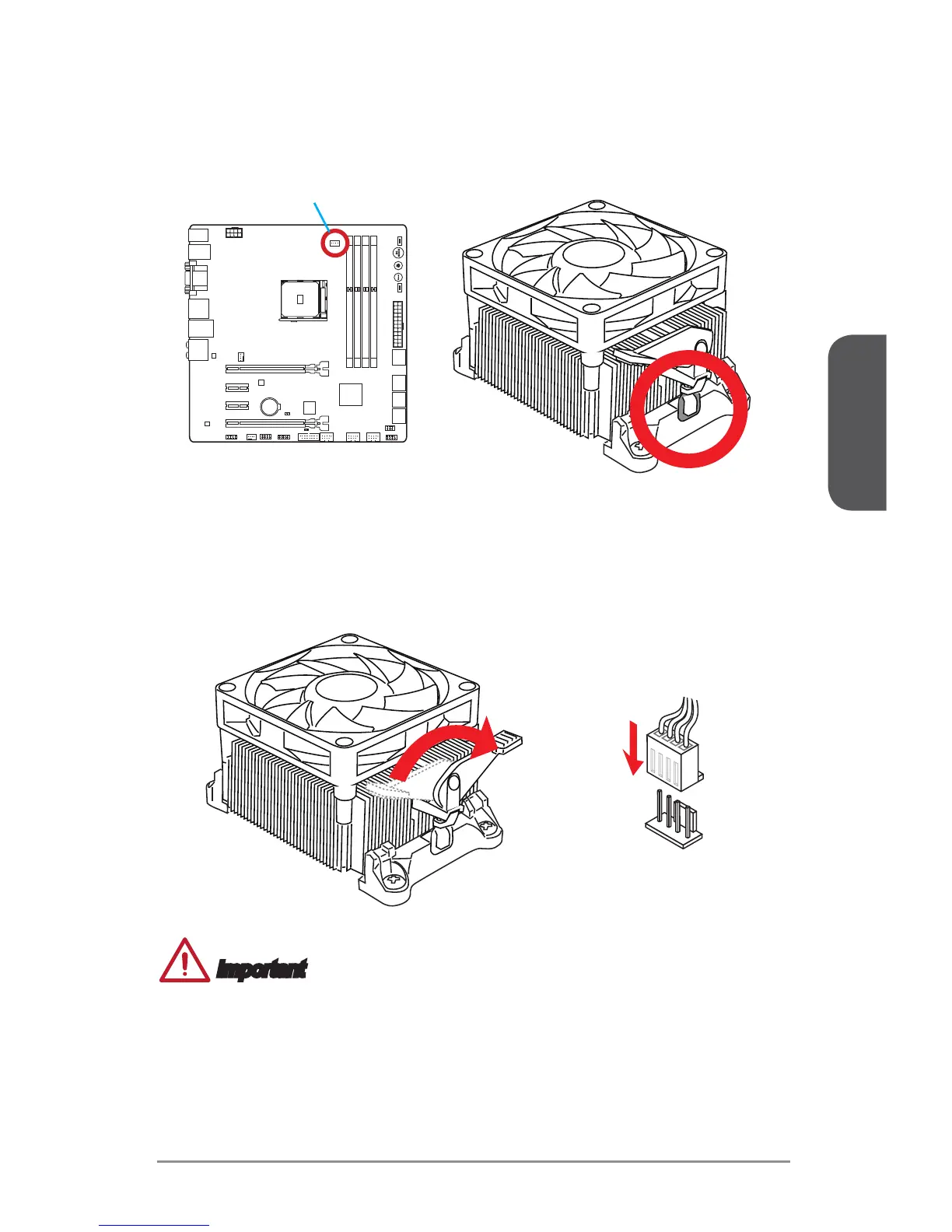

5. Locate the APU fan connector on the motherboard.

6. Position the cooling set onto the retention mechanism. Hook one end of the clip to

hook 󰘰rst.

Important

While disconnecting the Safety Hook from the 󰘰xed bolt, it is necessary to keep an

eye on your 󰘰ngers, because once the Safety Hook is disconnected from the 󰘰xed

bolt, the 󰘰xed lever will spring back instantly.

Con󰘰rm that the APU cooler has formed a tight seal with the APU before booting

your system.

Please refer to the documentation in the APU cooler package for more details about

APU cooler installation.

•

APU fan connector

7. Then press down the other end of the clip to fasten the cooling set on the top of

the retention mechanism. Locate the Fix Lever and lift up it.

8. Fasten down the lever.

9. Attach the APU Fan cable to the APU fan connector on the motherboard.
