MSI A88XM GAMING User Manual

Chapter 1
1-16Getting Started

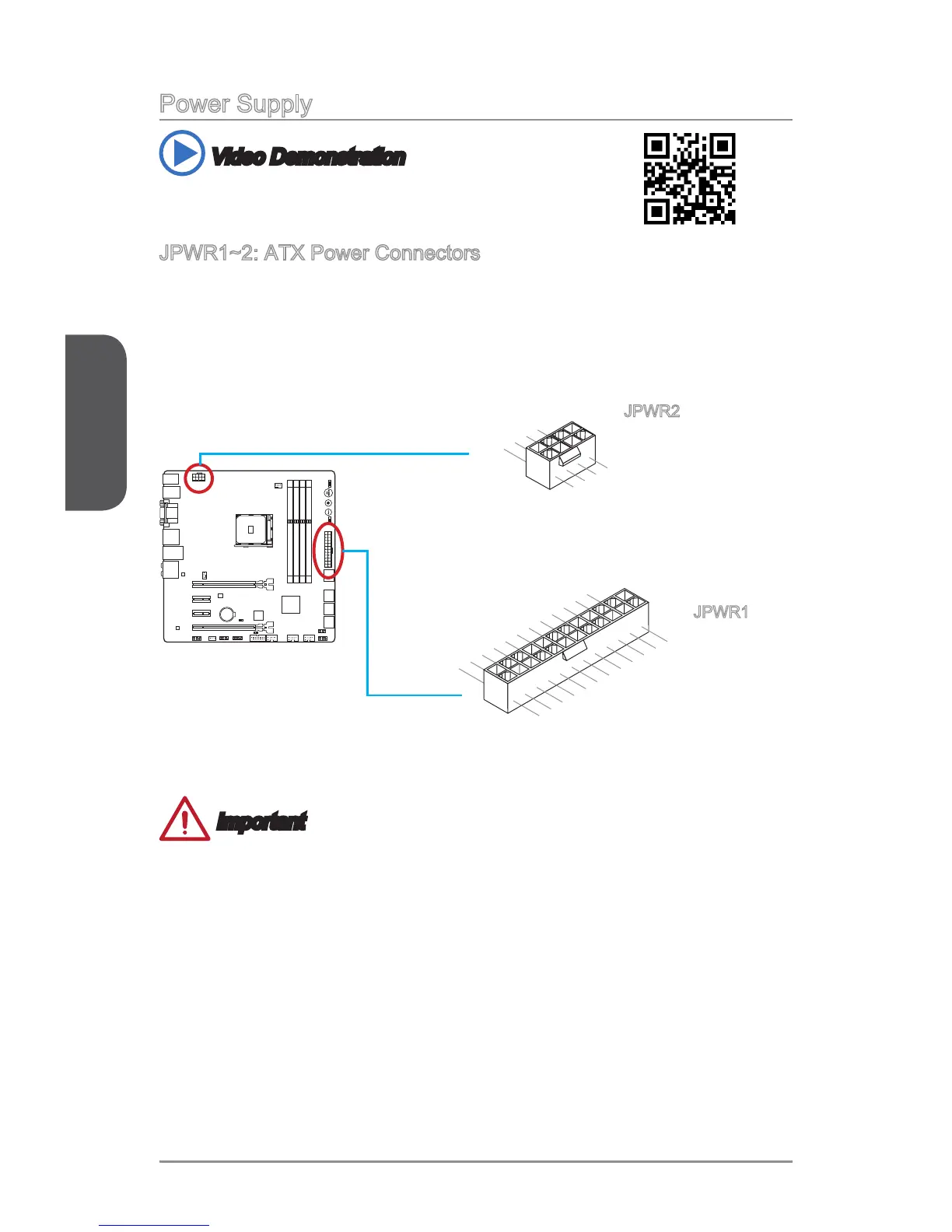

Power Supply
Video Demonstration
Watch the video to learn how to install power supply connectors.
http://youtu.be/gkDYyR_83I4
JPWR1~2: ATX Power Connectors
These connectors allow you to connect an ATX power supply. To connect the ATX
power supply, align the power supply cable with the connector and 󰘰rmly press the
cable into the connector. If done correctly, the clip on the power cable should be
hooked on the motherboard’s power connector.
13.+3.3
V
1.+3.3
V
14.-12V
2.+3.3
V
15.Ground
3
.Ground
16.PS-ON
#
4.+5
V
17.Ground
5
.Ground
18.Ground
6.+5
V
19.Ground
7
.Ground
22.+5
V
10.+12V
20.Res
8.PW
R O
K
23.+5
V
11
.+12V
21.+5
V
9.5VSB
24.Ground
12.+3.3
V
7.+12V
3.Ground
5.+12V
1.
Ground
8.+12V
4
.Ground
6.+12V
2
.Ground
JPWR2
JPWR1
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.

MSI A88XM GAMING Specifications

General

Form Factor	Micro ATX
Chipset	AMD A88X
Socket	FM2+
Memory Slots	4 x DIMM
Max Memory	64 GB
PCIe Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16 (x4 mode), 2 x PCIe 2.0 x1
SATA Ports	8 x SATA 6Gb/s
Multi-GPU Support	AMD CrossFireX
Audio	Realtek ALC1150
LAN	Killer E2205 Gigabit LAN
USB Ports	8 x USB 2.0
