Introductions

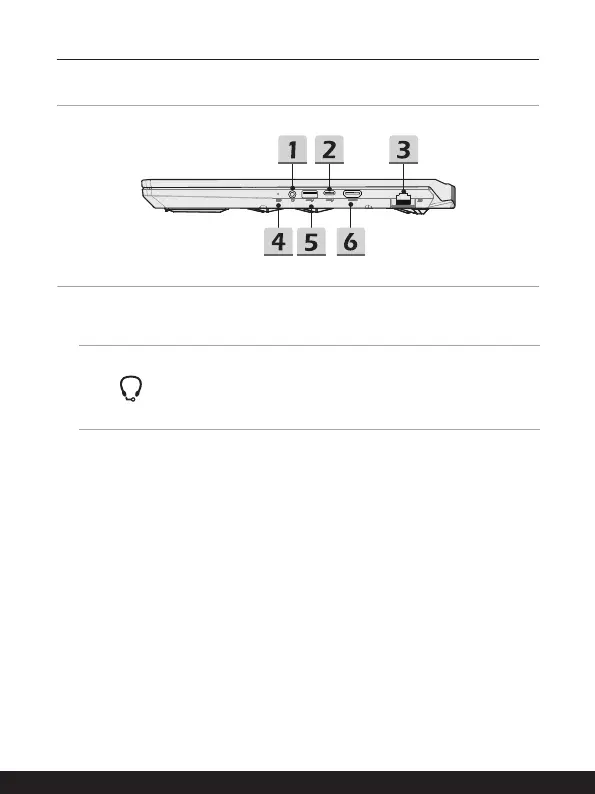

Right Side View
1. Audio Port Connectors
Make high quality sound blaster with stereo system.
Combo Audio Connector
• A connector for headsets with attached microphones
• The Combo Audio Connector supports 4-Pole 3.5mm
headphone jack.
2. USB 3.2 Gen 2 Port (Type C)
USB 3.2 Gen 2, the SuperSpeed USB 10Gbps, supports high-speed data transfer for
the connected devices, such as storage devices, hard drives, or video cameras.
The slim and sleek USB Type C connector offers reversible plug orientation, and
supports 5V/3A portable charging power when AC power is connected. However,
the maximum portable charging power limitation may up to 5V/1.5A while battery DC
power is connected.
3. RJ-45 Connector
The Ethernet connector, with optionally supported transmitting rate of
10/100/1000/10000 megabits per second, is used to connect a LAN cable for network
connection.
