MSI B360M MORTAR User Manual

36
Overview of Components

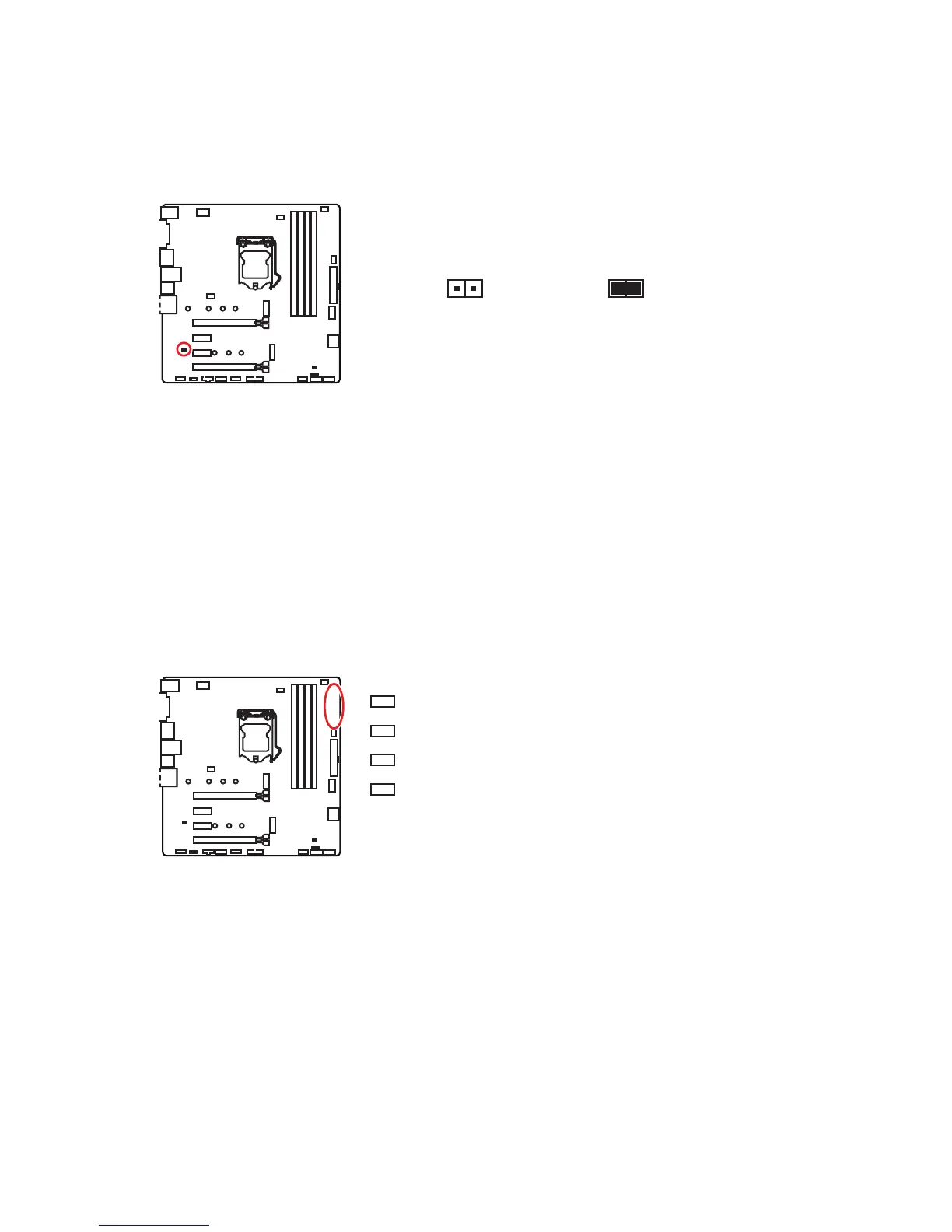

JBAT1: Clear CMOS (Reset BIOS) Jumper
There is CMOS memory onboard that is external powered from a battery located on
the motherboard to save system configuration data. If you want to clear the system
configuration, set the jumpers to clear the CMOS memory.
Keep Data
(default)
Clear CMOS/
Reset BIOS
Resetting BIOS to default values
1. Power off the computer and unplug the power cord
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and power on the computer.
EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected
or fail.

MSI B360M MORTAR Specifications

General

Form Factor	Micro ATX
Chipset	Intel B360
Socket	LGA 1151
Memory Slots	4
Max Memory	64 GB
PCIe x1 Slots	2
SATA Ports	6
M.2 Slots	2
Audio	Realtek ALC892
USB Ports	6 x USB 2.0
LAN	Realtek RTL8111H Gigabit LAN Controller
RAID Support	RAID 0, 1, 5, 10
PCIe x16 Slots	2
Integrated Graphics	Supported with Intel CPU
