MSI B360M MORTAR User Manual

92
Intel® Optane™ Memory Configuration
Removing the Intel
®
Optane™ memory
If you no longer want to use Intel
®
Optane™ memory, you have to disable the Intel
®
Optane™ memory before removing the Intel
®
Optane™ memory module to avoid
operating system damage. Please follow the steps below to remove the Intel
®
Optane™
memory.
1. Disable Intel
®
Optane™ Memory.

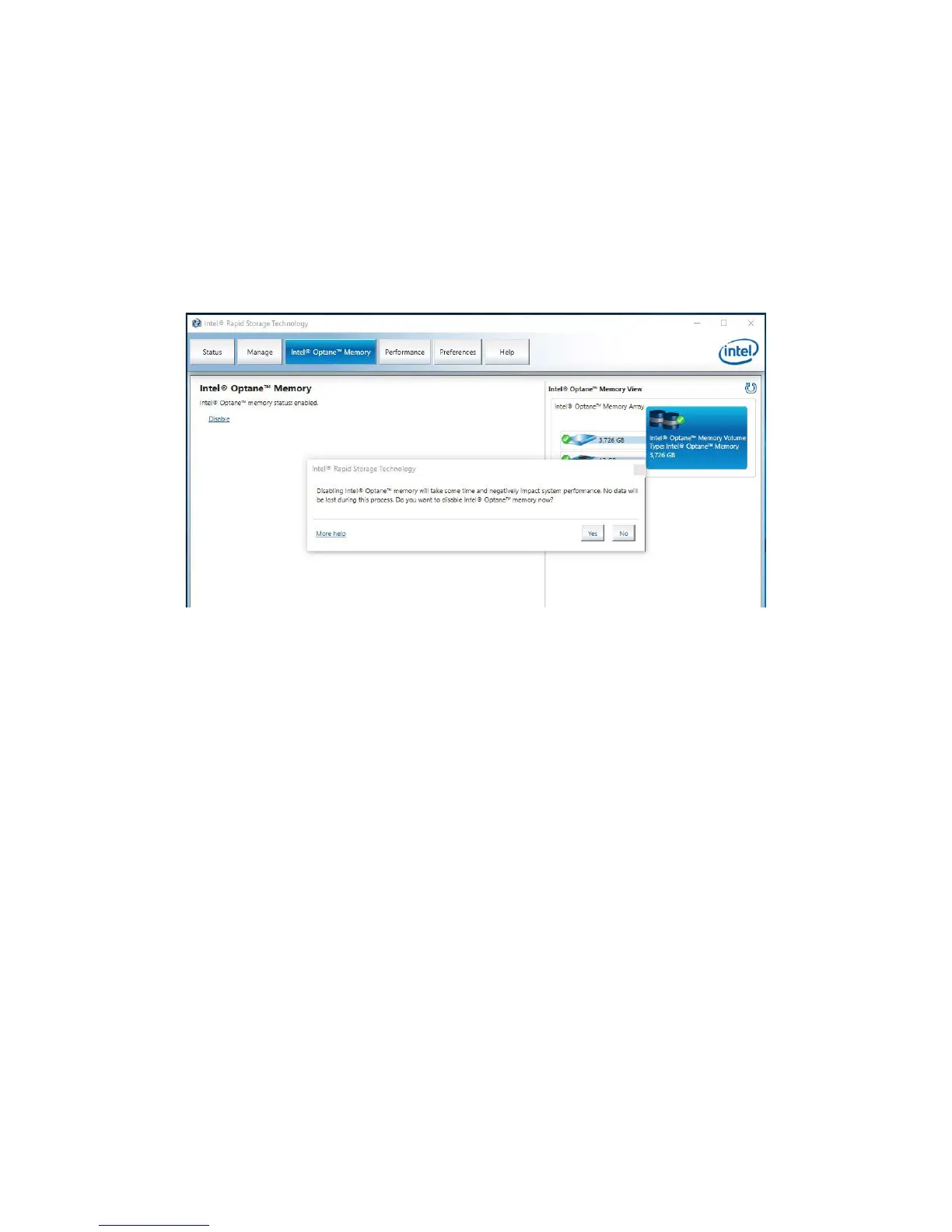

 Disable Intel
®
Optane™ Memory via the Intel
®
Optane™ memory application
(Intel
®
Rapid Storage Technology).
 Click Yes in the dialog.
 Reboot System.
2. Disable M.2/Optane Genie
 Press Delete key to enter BIOS Setup menu during POST.
 Disable M.2/Optane Genie by clicking M.2/Optane Genie item.
 Click Ok in the dialog.
 Press F10 to save configuration and exit.
3. Remove the Intel
®
Optane™ memory module.
 Power off the system.
 Remove the Intel
®
Optane™ memory module.

MSI B360M MORTAR Specifications

General

Form Factor	Micro ATX
Chipset	Intel B360
Socket	LGA 1151
Memory Slots	4
Max Memory	64 GB
PCIe x1 Slots	2
SATA Ports	6
M.2 Slots	2
Audio	Realtek ALC892
USB Ports	6 x USB 2.0
LAN	Realtek RTL8111H Gigabit LAN Controller
RAID Support	RAID 0, 1, 5, 10
PCIe x16 Slots	2
Integrated Graphics	Supported with Intel CPU
