MSI B360M PRO-VDH User Manual

16
I/O
EZ Debug LED
LED󸀭󶆺
CPU - CPU󴕼󱲡󸑃󸗰󲢀󳼢󶆻
DRAM - DRAM󴕼󱲡󸑃󸗰󲢀󳼢󶆻
VGA - GPU󴕼󱲡󸑃󸗰󲢀󳼢󶆻
BOOT - 󴕼󱲡󸑃󸗰󲢀󳼢󶆻

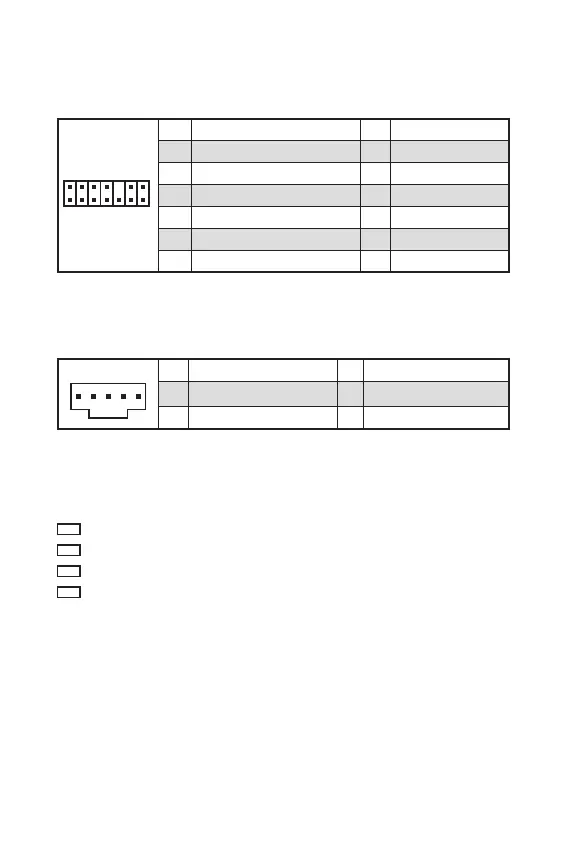

JTPM1: TPM
   TPM (Trusted Platform Module)󳰛󶪔󸐍󶧄TPM
󱾍󵐲󱘕
1
2 14
13
1 LPC Clock 2 3V Standby power
3 LPC Reset 4 3.3V Power
5 LPC address & data pin0 6 Serial IRQ
7 LPC address & data pin1 8 5V Power
9 LPC address & data pin2 10 No Pin
11 LPC address & data pin3 12 Ground
13 LPC Frame 14 Ground
JTBT1: Thunderbolt󸵥 󱶨
󸵥󱶨Thunderbolt I/O (  )󳰙󶪓󵫞
1
1 FORCE_PWR 2 SCI_EVENT
3 SLP_S3# 4 SLP_S5#
5 GND

MSI B360M PRO-VDH Specifications

General

Form Factor	Micro ATX
Chipset	Intel B360
Socket	LGA 1151
Memory Slots	4 x DIMM
Maximum Memory	64 GB
Memory Speed	DDR4 2666/2400/2133 MHz
SATA Ports	6 x SATA 6Gb/s
LAN	Realtek 8111H Gigabit LAN
Video Outputs	1 x HDMI, 1 x DVI-D, 1 x VGA
PCIe Slots	1 x PCIe 3.0 x16
M.2 Slots	1 x M.2
Audio	Realtek ALC887
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
