MSI B450M BAZOOKA MAX WIFI User Manual

31

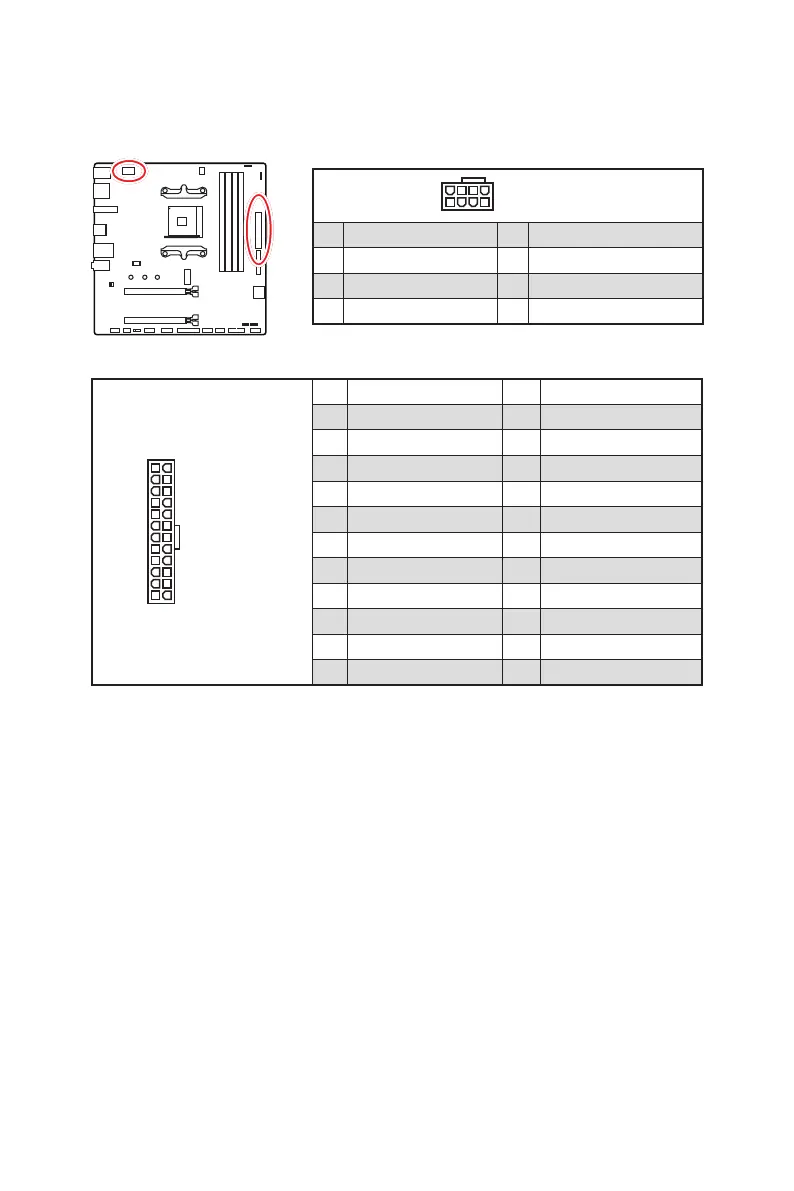

Overview of Components
24
131
12
ATX_PWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4 1
8
CPU_PWR1
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
⚠
Important
∙ Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.
∙ It is recommended to connect two 8-pin connectors or at least one 8-pin and one
4-pin power connectors to the CPU_PWR1 and CPU_PWR2 to optimize system stability
and prevent the motherboard from overheating under heavy load.
CPU_PWR1, ATX_PWR1: Power Connectors
These connectors allow you to connect an ATX power supply.

MSI B450M BAZOOKA MAX WIFI Specifications

General

Processor manufacturer	AMD
Compatible processor series	AMD Athlon, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Supported processor sockets	Socket AM4
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3733, 3866, 4100, 4133 MHz
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	5
Supported storage drive interfaces	M.2, SATA III
Maximum resolution	3840 x 2160 pixels
Maximum graphics card memory	2048 MB
Parallel processing technology support	2-Way CrossFireX
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111H
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 3168
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC892 / Realtek ALC897
Component for	PC
Motherboard chipset	AMD B450
PC health monitoring	FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Number of mounting holes	8
Windows operating systems supported	Windows 10 x64, Windows 7 x64
BIOS type	UEFI AMI
ACPI version	6.2
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.0
Cables included	SATA

Weight and Dimensions

Width	244 mm
