BIOS Setup

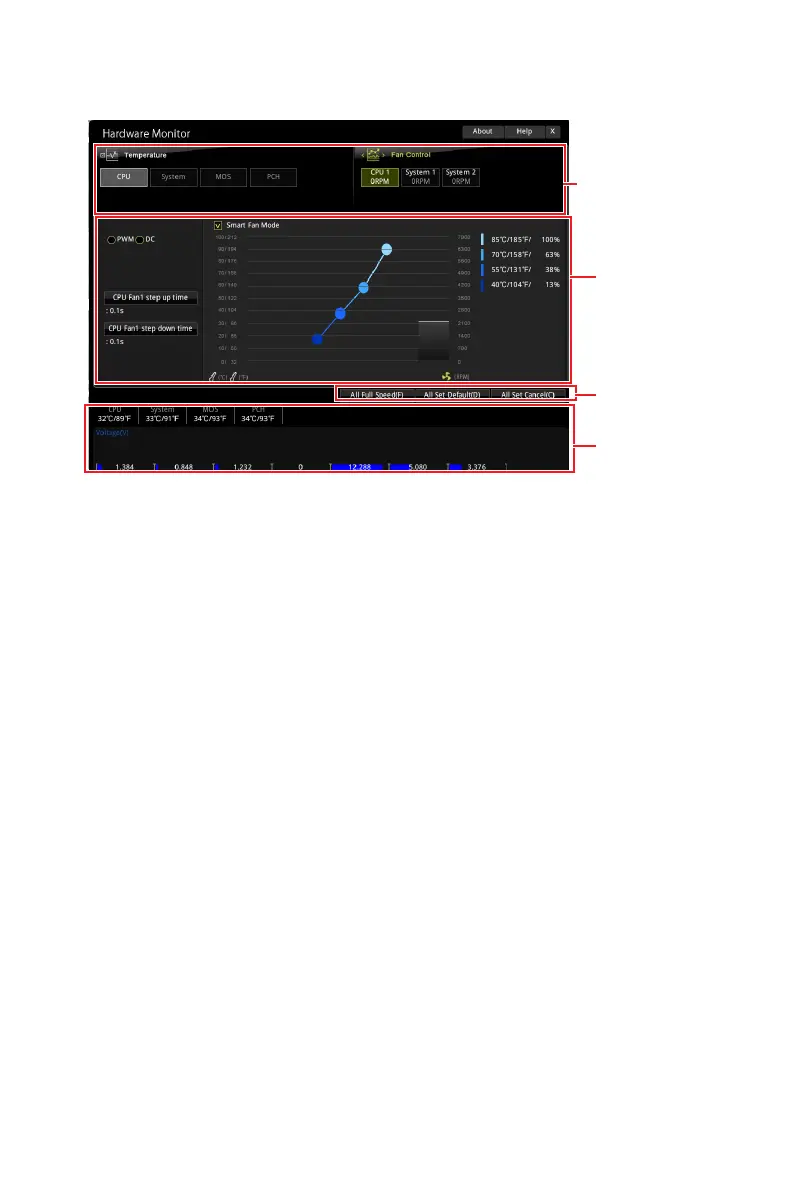

HARDWARE MONITOR
Temperature
& Speed
Fan Manage
Temperature/
Voltage display
Setting
Buttons
▶ Temperature & Speed
Shows the current CPU temperature, system temperature and fans' speeds.
▶ Fan Manage
▪ PWM - allows you to select the PWM mode for fan operation.
▪ DC - allows you to select the DC mode for fan operation.
▪ Fan step up/ down time - allows you to set the period of fan step up/ down.
▪ Smart Fan Mode field - allows you to drag the gradient points to configure
the fan target values for Smart Fan mode. Smart Fan can control the fan speed
automatically depending on the CPU temperature to keep it with in a specific
range. If the current CPU temperature reaches to the target value, the Smart Fan
function will be activated.
⚠
Important
∙ The changing will achieve after you save the changes and reboot the system.
∙ Make sure fans are working properly after switching the PWM/ DC mode.
▶ Settings Buttons
▪ All Full Speed - configures all fans to run at full operating speed.
▪ All Set Default - configures all fans to run at default operating speed.
▪ All Set Cancel - discards current changes and restores previous operating fan
speeds .
▶ Temperature/ Voltage display
Shows CPU/ system temperature and the current voltages of CPU, system and
memory.

MSI B450M BAZOOKA MAX WIFI Specifications

General

Processor manufacturer	AMD
Compatible processor series	AMD Athlon, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Supported processor sockets	Socket AM4
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3733, 3866, 4100, 4133 MHz
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	5
Supported storage drive interfaces	M.2, SATA III
Maximum resolution	3840 x 2160 pixels
Maximum graphics card memory	2048 MB
Parallel processing technology support	2-Way CrossFireX
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111H
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 3168
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC892 / Realtek ALC897
Component for	PC
Motherboard chipset	AMD B450
PC health monitoring	FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Number of mounting holes	8
Windows operating systems supported	Windows 10 x64, Windows 7 x64
BIOS type	UEFI AMI
ACPI version	6.2
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.0
Cables included	SATA

Weight and Dimensions

Width	244 mm
