Vue d󾙓ensemble des composants Vue d󾙓ensemble des composants

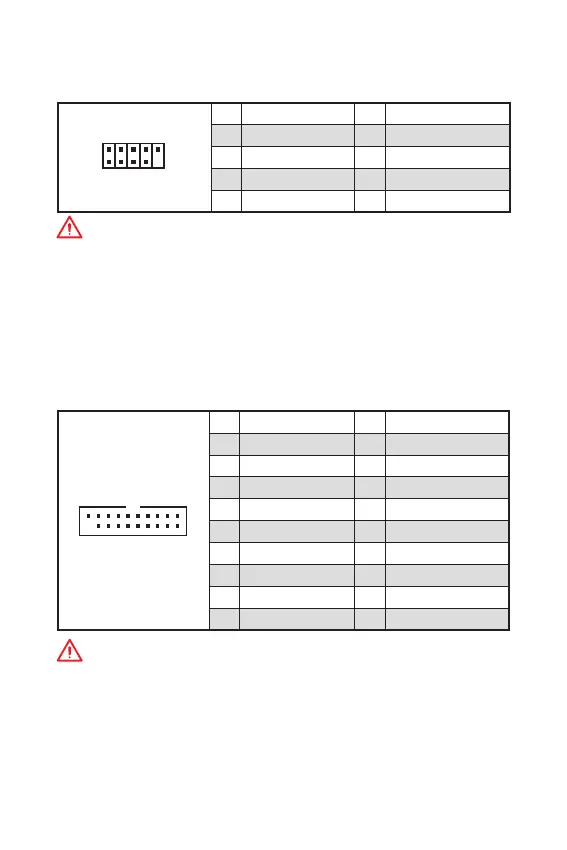

JUSB3~4 : Connecteurs USB 3.1 Gen1
Ces connecteurs vous permettent de relier un port USB 3.1 Gen1 sur le panneau
avant.
1 10
1120
1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 NC 20 No Pin
Important
Notez que les câbles d󾙓alimentation et de terre doivent être branchés correctement
afin d󾙓éviter d󾙓endommager la carte.
JUSB1~2 : Connecteurs USB 2.0
Ces connecteurs vous permettent de relier des ports USB 2.0 sur le panneau avant.
1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
Important
y Notez que les broches VCC et Terre doivent être branchées correctement afin
d󾙓éviter tout dommage sur la carte mère.
y Pour recharger votre iPad, iPhone ou iPod par l󾙓intermédiaire d󾙓un port USB,
veuillez installer l󾙓utilitaire MSI
®
SUPER CHARGER.

MSI B450M GAMING PLUS Specifications

General

Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Motherboard chipset	AMD B450
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Number of mounting holes	6
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10, Windows 7
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466 MHz
Processor socket	Socket AM4
Compatible processor series	AMD Athlon, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Maximum graphics card memory	2048 MB
Number of SATA II connectors	0
Number of SATA III connectors	4
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Cables included	SATA
BIOS type	UEFI

Weight and Dimensions

Depth	210 mm
Width	244 mm
