MSI B460M PRO-VDH WIFI User Manual

58
UEFI BIOS
HARDWARE MONITOR Menu

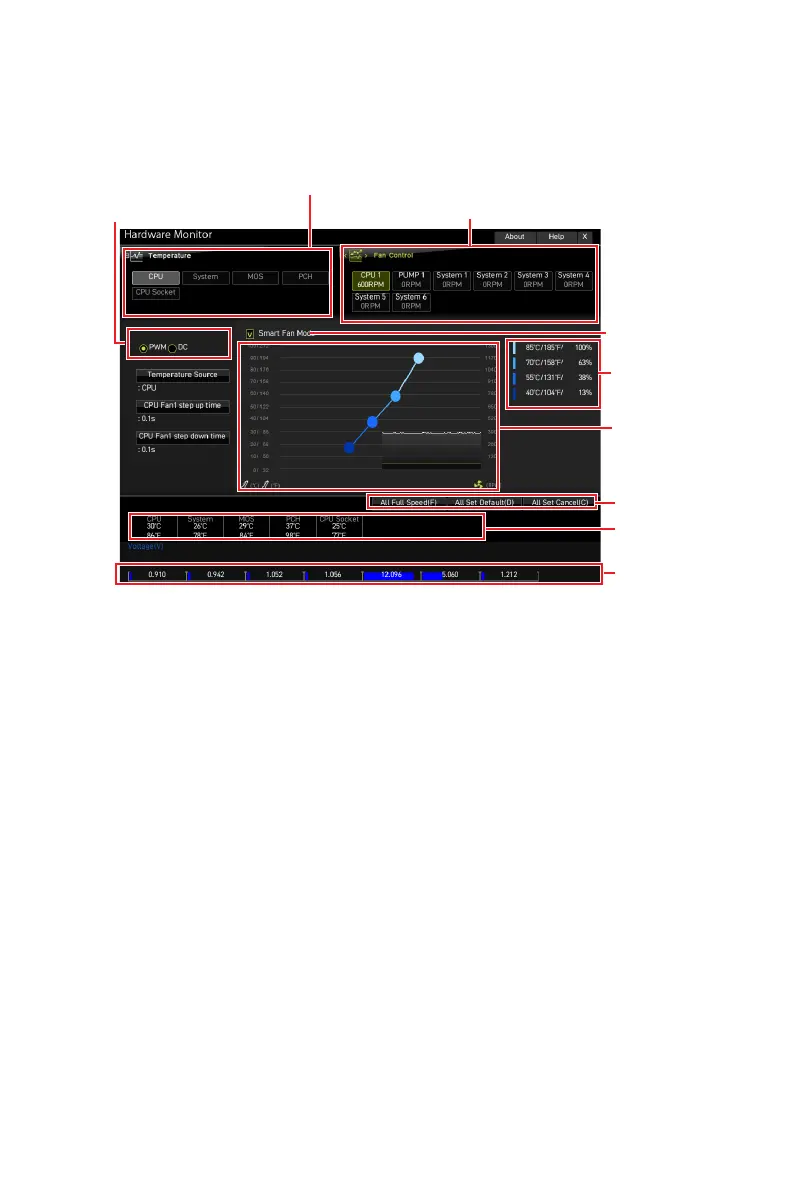

This menu allows you to adjust the fan speed manually and monitor CPU/ system
voltage.
Fan operating
window
Smart Fan duty
information
Click to enable
the Smart Fan
Temperature
information
Setting Buttons
Select a fan to be configured
Select a temperature curve line (white)
to be showed in Fan operating window
Select a fan mode for target fan
Voltage
information
∙ Smart Fan - This setting enables/disables the Smart Fan function. Smart Fan is an
excellent feature which will adjust the CPU/system fan speed automatically depending
on the current CPU/system temperature, avoiding the overheating to damage your
system.
▶ Settings Buttons
▪ All Full Speed - configures all fans to run at full operating speed.
▪ All Set Default - configures all fans’ speeds return the BIOS default values.
▪ All Set Cancel - discards current changes and restores previous settings for all
fan .
⚠
Important
Make sure fans are working properly after adjusting the fan speed and switching the
fan mode.
