MSI B550M PRO-VDH WIFI User Manual

33

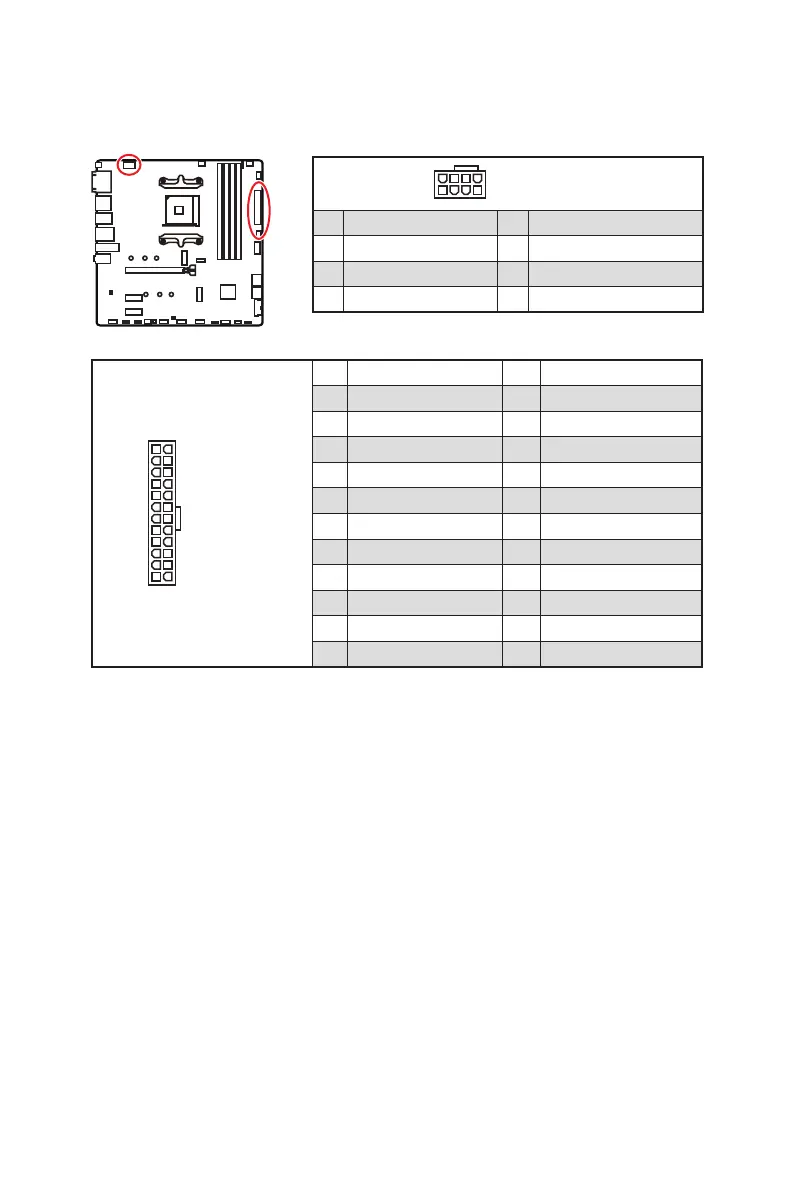

Overview of Components
24
131
12
ATX_PWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4 1
8
CPU_PWR1
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
⚠
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.
CPU_PWR1, ATX_PWR1: Power Connectors
These connectors allow you to connect an ATX power supply.

MSI B550M PRO-VDH WIFI Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	-
Audio chip	Realtek ALC892 / Realtek ALC897
Component for	PC
Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64
Bluetooth	Yes
LAN controller	Realtek RTL8111H
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 3168
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speed (max)	4400 MHz
RAID levels	0, 1, 10
Supported storage drive interfaces	M.2, SATA III
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
DirectX version	12.0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
