MSI B75A-G43 series User Manual

En-25
Englsh

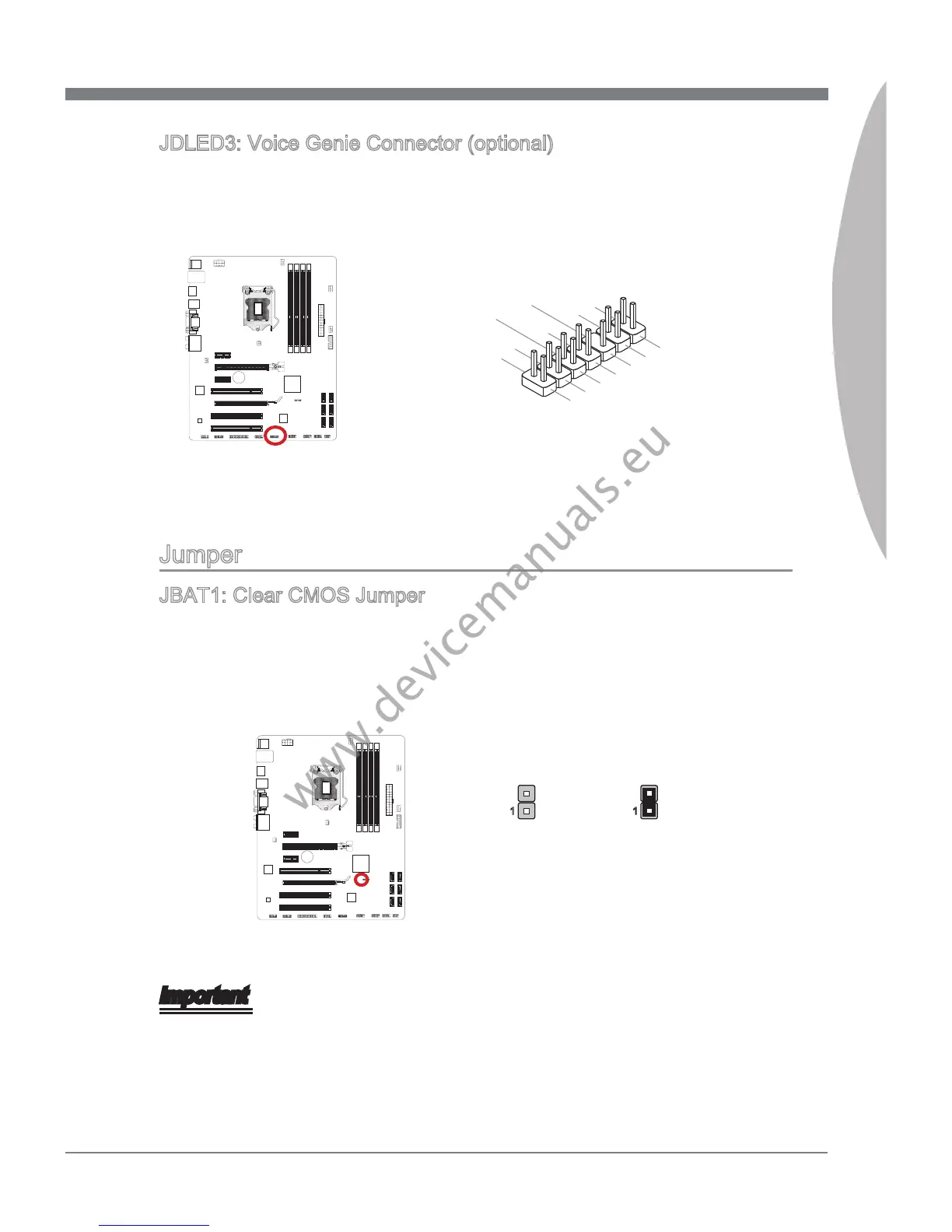

JDLED3: Voce Gene Connector (optonal)
Ths connector s used to lnk to the voce control module (optonal). Please refer to ts
user gude for more detals and usages.
10.No Pin
14.Control pin
8.Control pin
12.Control pin
6.VCC3
4.Control pin
2.Control pin
1.5VSB
3.Control pin
5.Control pin
7.Control pin
9.Ground
11.Reserved pin
13.Ground
Jumper
JBAT1: Clear CMOS Jumper
There s CMOS RAM onboard that s external powered from a battery located on the
manboard to save system con󰘰guraton data. Wth the CMOS RAM, the system can
automatcally boot nto the operatng system (OS) every tme t s turned on. If you want
to clear the system con󰘰guraton, set the jumpers to clear the CMOS RAM.
Keep Data Clear Data
1 1
Important
You can clear the CMOS RAM by shortng ths jumper whle the system s o󰘯. Afterwards,
open the jumper . Do not clear the CMOS RAM whle the system s on because t wll
damage the manboard.
