Chapter 1
1-9 Getting Started

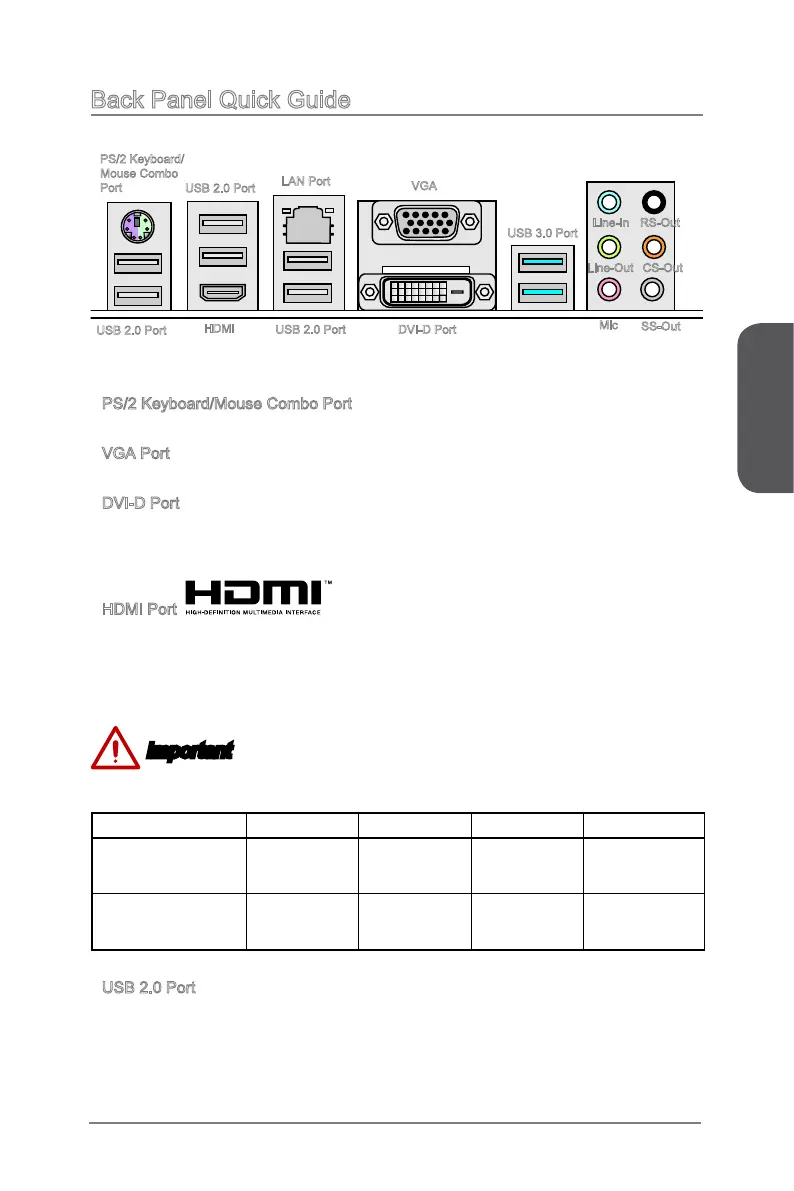

Back Panel Quick Guide
PS/2 Keyboard/Mouse Combo Port
A combination of PS/2
®
mouse/keyboard DIN connector for a PS/2
®
mouse/keyboard.
VGA Port
The DB15-pin female connector is provided for monitor.
DVI-D Port
The DVI-D (Digital Visual Interface- Digital) connector can be connected to a LCD
monitor, or a CRT monitor with an adapter. To connect a monitor, please refer to the
monitors manual for more information.
HDMI Port
The High-Denition Multimedia Interface (HDMI) is an all-digital audio-video interface
that is capable of transmitting uncompressed streams. HDMI supports all types of TV
formats, including standard, enhanced, or high-denition video, plus multi-channel
digital audio on a single cable.
Important
This platform supports dual-display or triple-display function by integrated graphics
output ports.
VGA+DVI-D DVI-D+HDMI HDMI+VGA HDMI+VGA+DVI-D
Extend mode
(Extend the desktop to
the other monitors)
Clone mode
(Monitors have the same
screen)
USB 2.0 Port
The USB 2.0 port is for attaching USB 2.0 devices such as keyboard, mouse, or other
USB 2.0-compatible devices.
Line-In
Line-Out
Mic
RS-Out
CS-Out
SS-Out
USB 3.0 Port
LAN Port
PS/2 Keyboard/
Mouse Combo
Port
USB 2.0 Port
DVI-D Port
HDMI
USB 2.0 Port
VGA
USB 2.0 Port
