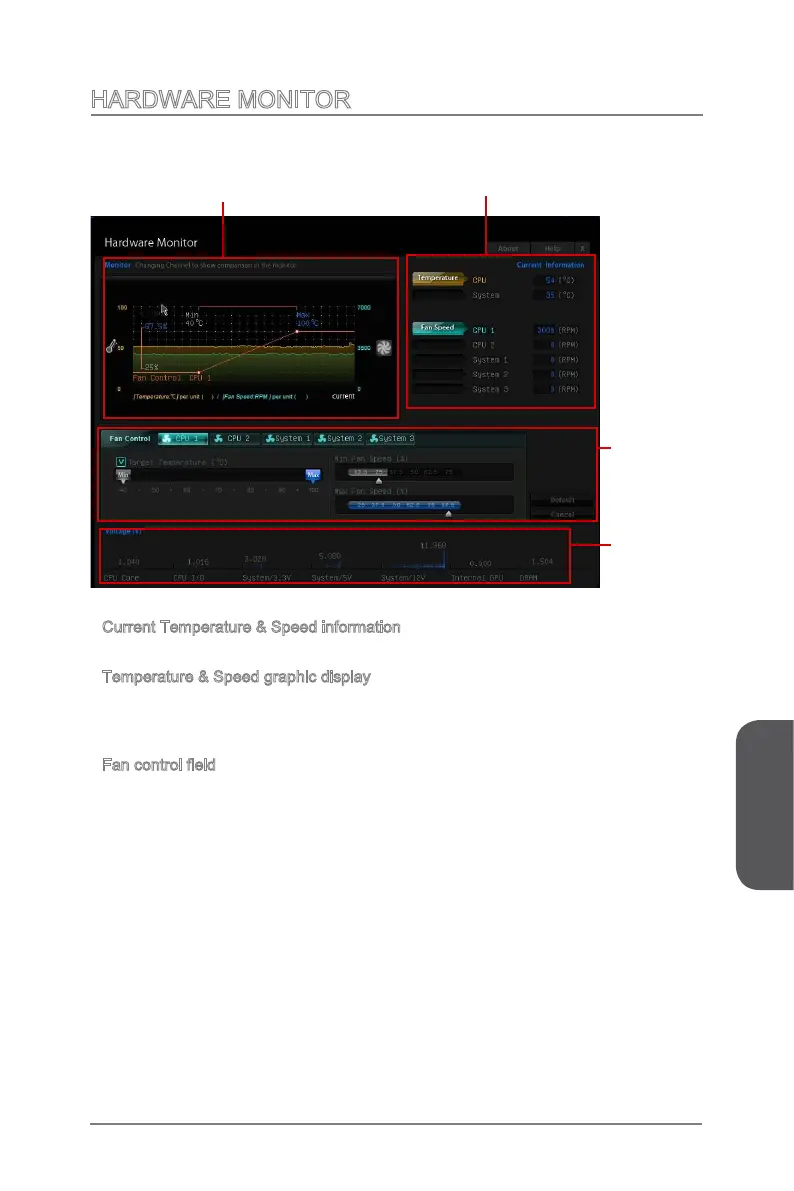

HARDWARE MONITOR
Temperature &
Speed
graphic display
Current
Temperature & Speed
information
Fan
control eld
Voltage
display
Current Temperature & Speed information
Shows the current CPU temperature, system temperature and fans' speeds.
Temperature & Speed graphic display
The red graph shows the minimum and maximum temperatures that be set on the
Fan control field. The yellow graph shows current CPU/ system temperature. The
green shows current CPU/ System fan speed.
Fan control field
This motherboard provides a fan speed control feature call Smart Fan Control.
Smart Fan Control automatically controls fan speed depending on the current CPU/
system temperature and to keep it with a specific operating speed. When the current
CPU/ system temperature is over the maximum temperature, the CPU/ system fan
will run at the maximum speed. When the current CPU/ system temperature is under
the minimum temperature, the CPU/ system fan will run at the minimum speed. In this
field, you can set the CPU and system fans speeds and target temperatures.
