MSI GS70 User Manual

2-13

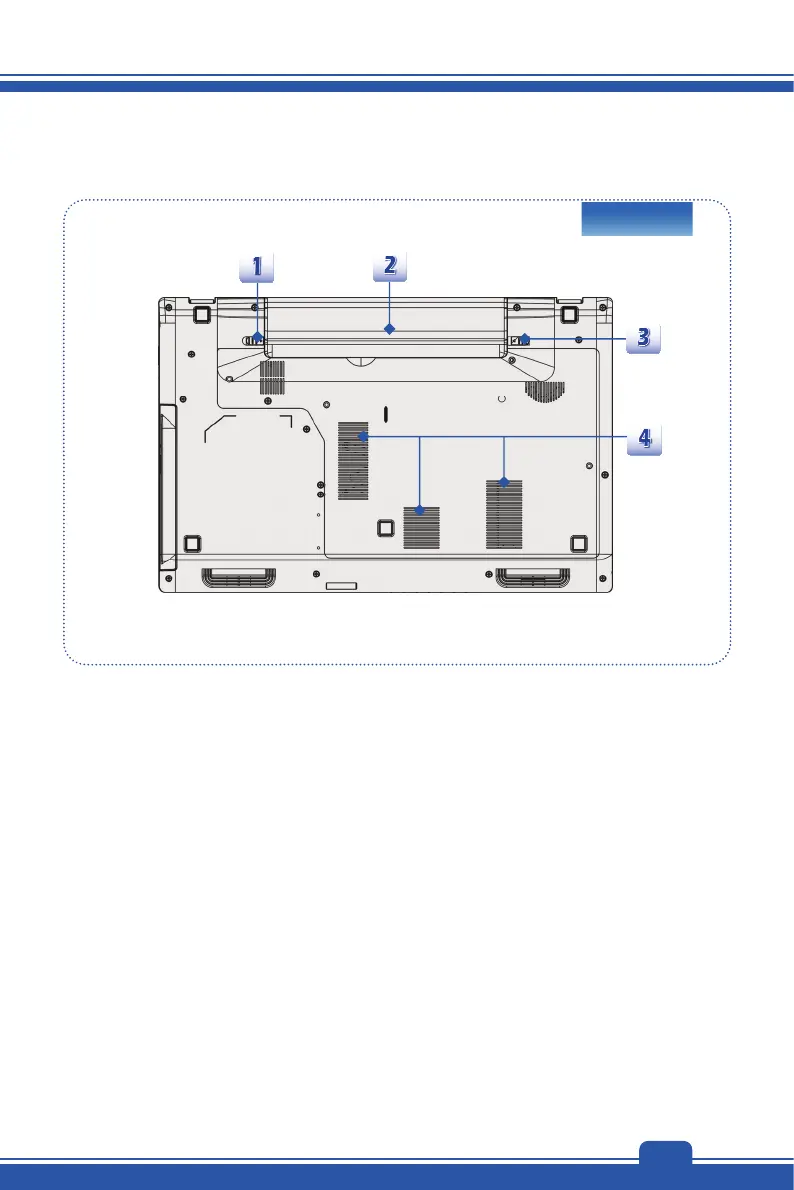

Bottom Side View
1. Battery Release Button
It is a bounce-back device as a preparation for releasing the battery pack. Slide it with one
hand and pull the battery pack carefully with the other.
2. Battery Pack
This notebook will be powered by the battery pack when the AC/DC adapter is disconnected.
3. Battery Lock/Unlock Button
Battery cannot be moved when the button is positioned on lock status. Once the button is
slid to unlock position, the battery is removable.
4. Ventilator
The ventilator is designed to cool the system. DO NOT block the ventilator for air circulation.

MSI GS70 Specifications

General

CPU	Intel Core i7-4700HQ
GPU	NVIDIA GeForce GTX 765M
RAM	16GB DDR3
Display	17.3-inch, 1920x1080 (Full HD)
Storage	128GB SSD + 1TB HDD
Operating System	Windows 8.1
Weight	2.6 kg (5.7 lbs)
Battery	6-Cell
Ports	3x USB 3.0, 1x USB 2.0, HDMI, Mini DisplayPort, SD card reader, Ethernet
