MSI H310M PRO-VH User Manual

7

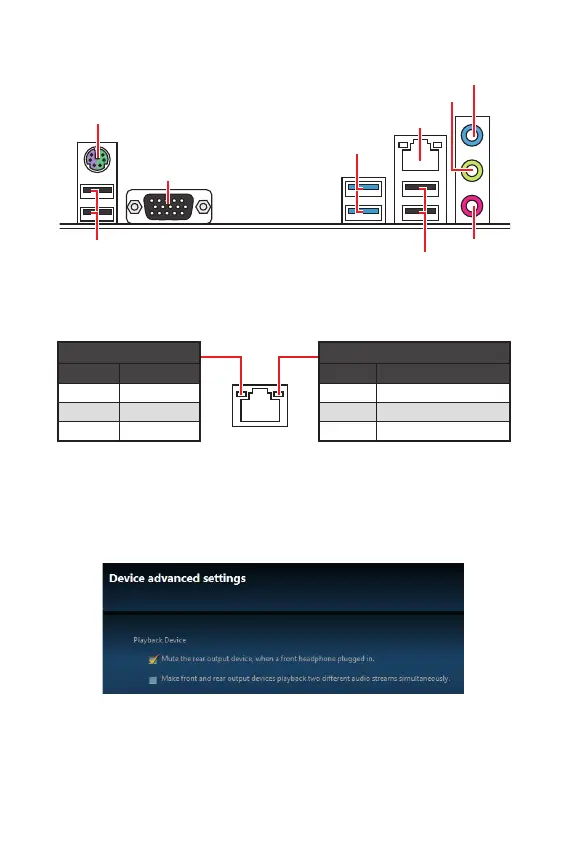

Rear I/O Panel Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio 7.1-channel Configuration
To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog
below.
2. Select Mute the rear output device, when a front headphone plugged in.
3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device is
current connected.
PS/2 Keyboard/ Mouse
LAN
Line-in
Mic in
Line-out
USB 3.1 Gen1
VGA
USB 2.0
USB 2.0
H310M PRO-NANO/ H310M WIND

MSI H310M PRO-VH Specifications

General

Form Factor	Micro-ATX
Chipset	Intel H310
CPU Socket	LGA 1151
Maximum Memory	32 GB
Expansion Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
Storage Interfaces	4 x SATA 6Gb/s
LAN	Realtek 8111H Gigabit LAN
Memory Slots	2 x DIMM
Memory Speed	2666/ 2400/ 2133 MHz
USB Ports	4 x USB 3.1 Gen1
Graphics Output	1 x VGA, 1 x HDMI
Audio	Realtek ALC887
M.2 Slots	1 x M.2 (Key M)
