MSI K8N Neo4-F User Manual

Hardware Setup
E-2-11

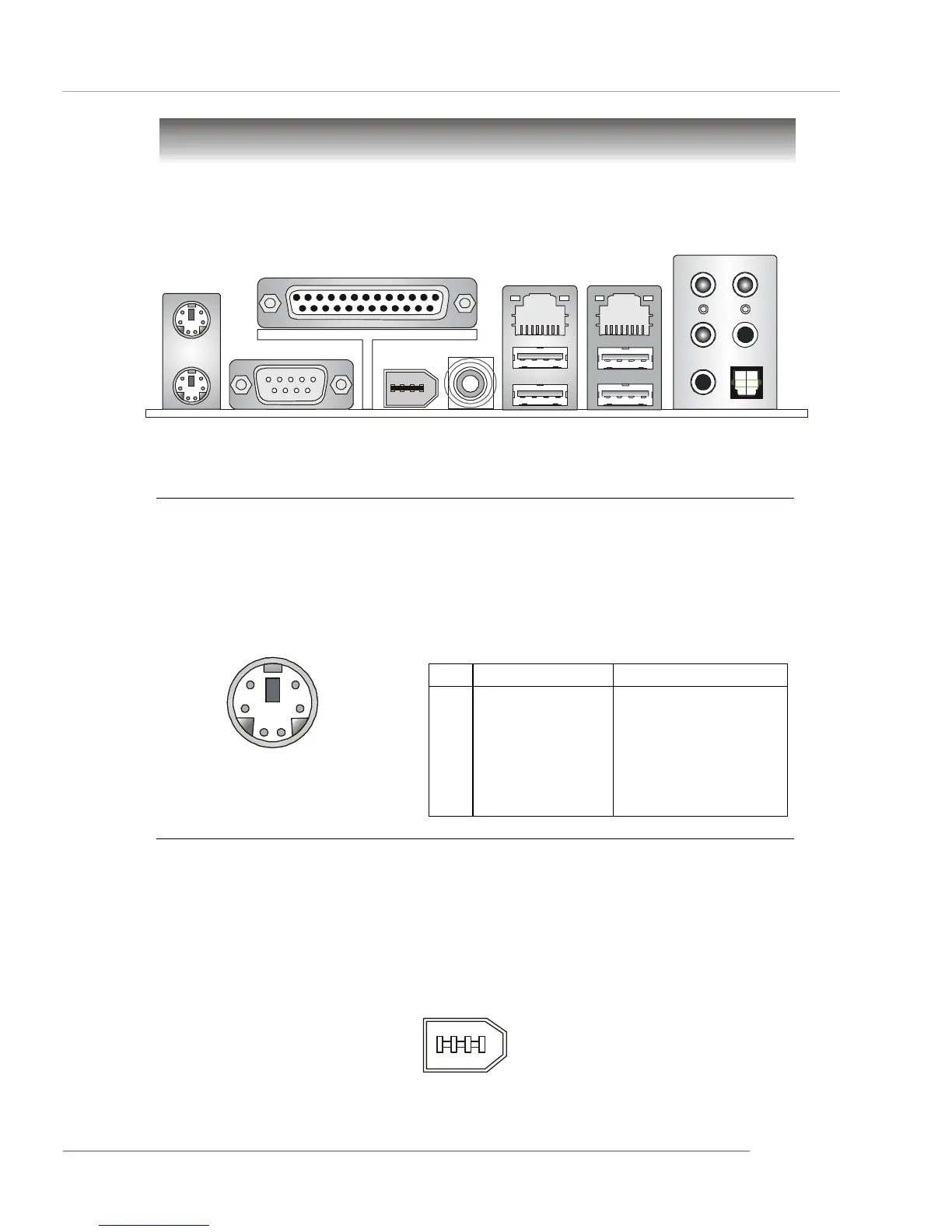

The back panel provides the following connectors:
Back Panel
Mouse Connector (Green) / Keyboard Connector (Purple)
The mainboard provides a standard PS/2
®
mouse/keyboard mini DIN connector for
attaching a PS/2
®
mouse/keyboard. You can plug a PS/2
®
mouse/keyboard directly
into this connector. The connector location and pin assignments are as follows:
PS/2 Mouse / Keyboard
(6-pin Female)
2
1
3
4
5
6
PIN SIGNAL DESCRIPTION
1 Mouse/Keyboard Data Mouse/Keyboard data
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse/Keyboard Clock Mouse/Keyboard clock
6 NC No connection
Pin Definition
Keyboard
COM Port
USB Ports
L-Out
Mic
L-In
Mouse
Parallel
LAN
(Optional)
1394 Port
(Optional)
SPDIF
Out
(Coaxial)
RS-Out
CS-Out
SPDIF Out
(Optical)
IEEE1394 Port (Optional)
The back panel provides one standard IEEE 1394 port. The standard IEEE1394 port
connects to IEEE1394 devices without external power. The IEEE1394 high-speed
serial bus complements USB by providing enhanced PC connectivity for a wide range
of devices, including consumer electronics audio/video (A/V) appliances, storage
peripherals, other PCs, and portable devices.
IEEE1394 Port
LAN
(Optional)
