MSI K9AG Neo2-Digital User Manual

2-6
MS-7368 Mainboard
Memory

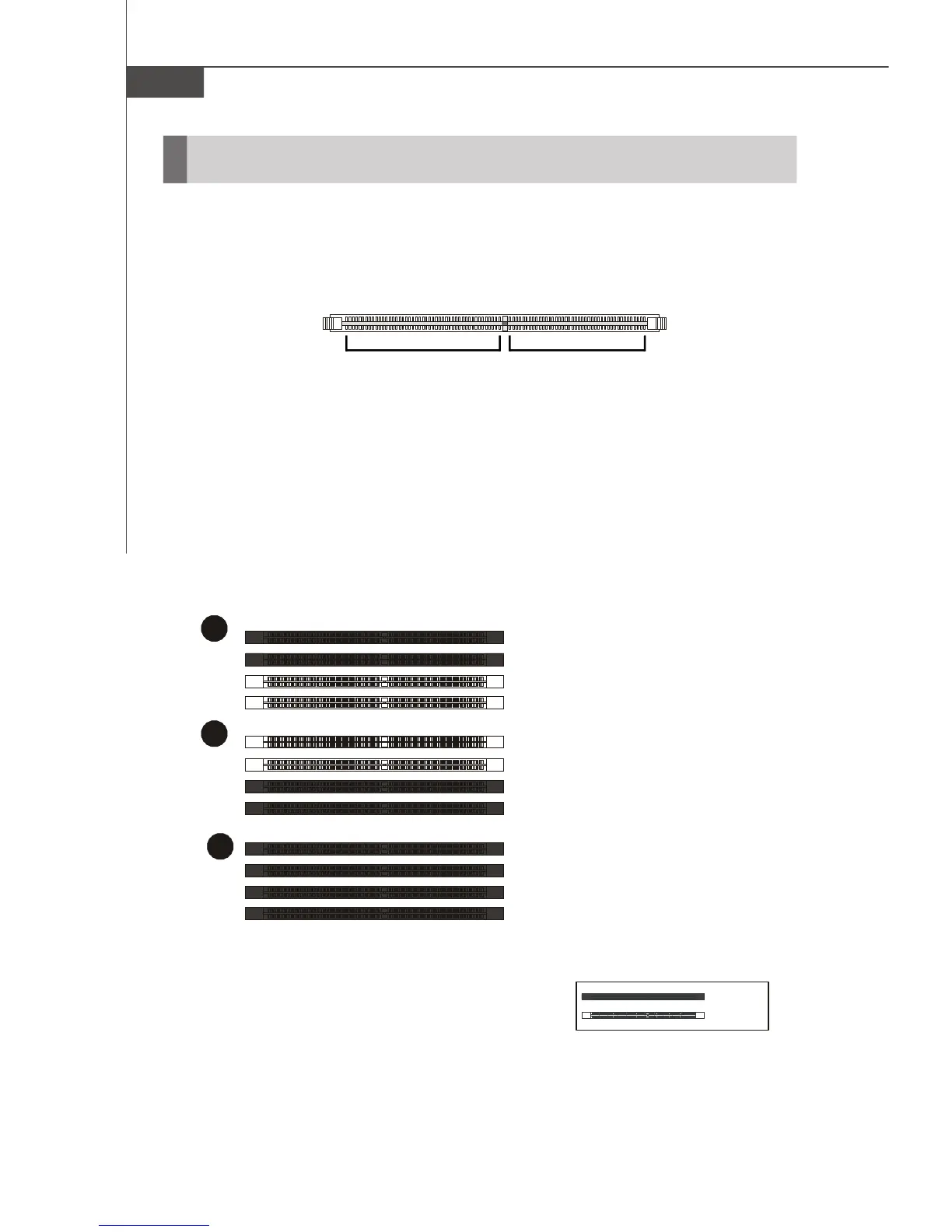

Dual-Channel mode Population Rule
In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. Please refer to the following illustrations for population rules under
Dual-Channel mode.
64x2=128 pin 56x2=112 pin
DDR2
240-pin, 1.8V
Single-Channel: All DIMMs in GREEN
Dual-Channel: Channel A in GREEN; Channel B in ORANGE
These DIMM slots are used for installing memory modules.
For more information on compatible components, please visit
http://global.msi.com.tw/index.php?func=testreport
1
DIMM2
DIMM1
DIMM4
DIMM3
2
DIMM2
DIMM1
DIMM4
DIMM3
DIMM2
DIMM1
DIMM4
DIMM3
Empty
Installed
3
