MSI MAG B560 TOMAHAWK WIFI User Guide

21

BAT1


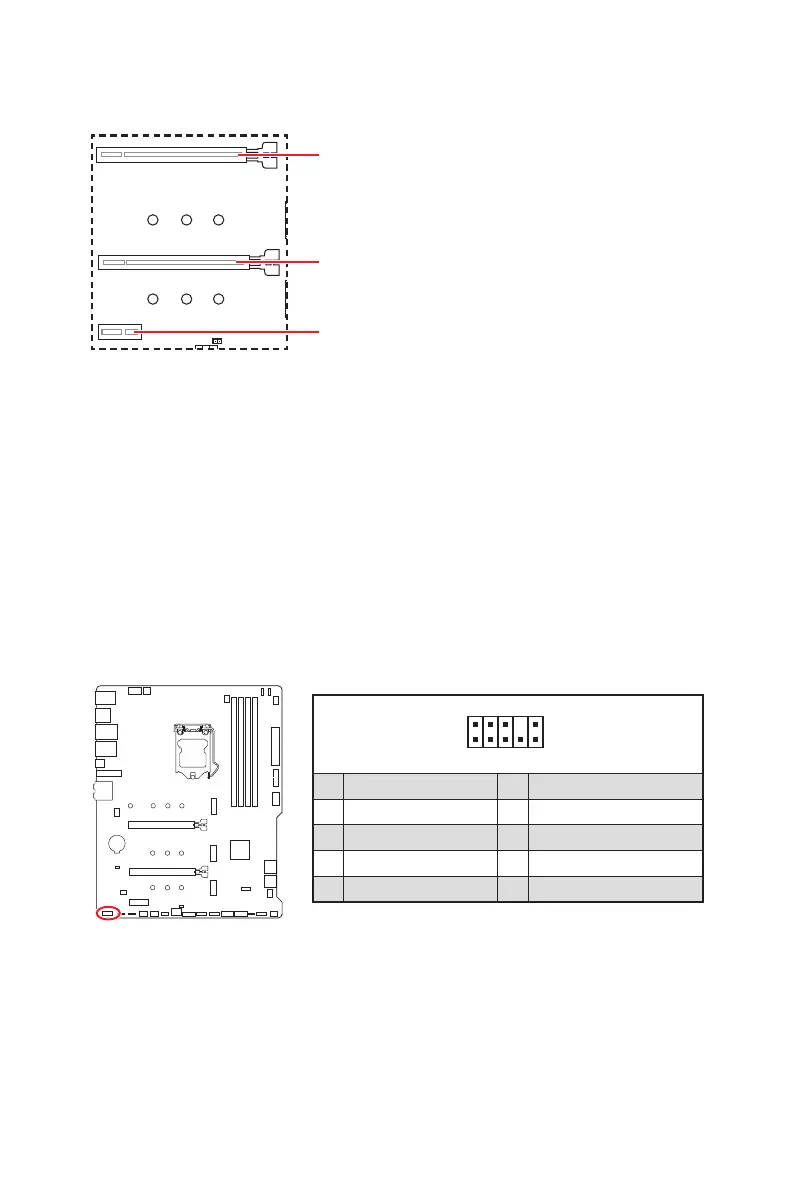

: PCIe 4.0 x16 (From CPU)
: PCIe 3.0 x1 (From B560 chipset)
: PCIe 3.0 x4 (From B560 chipset)

Important
 If you install a large and heavy graphics card, you need to use a tool such as MSI
 to support its weight to prevent deformation of the slot.
 For a single PCIe x16 expansion card installation with optimum performance, using
the  slot is recommended.
 When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.

This connector allows you to connect audio jacks on the front panel.
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection

MSI MAG B560 TOMAHAWK WIFI Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel B560
Audio output channels	7.1 channels
Motherboard form factor	ATX
Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2666, 2933, 3200, 4000, 4266, 4600 MHz
PCI Express x16 slots	2
Number of M.2 (M) slots	3
PCI Express x1 (Gen 3.x) slots	1
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of SATA II connectors	0
Number of SATA III connectors	6
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX210
Ethernet interface type	2.5 Gigabit Ethernet
BIOS type	UEFI AMI
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Width	244 mm
Height	70 mm
