MSI MAG B560M MORTAR WIFI User Guide

27

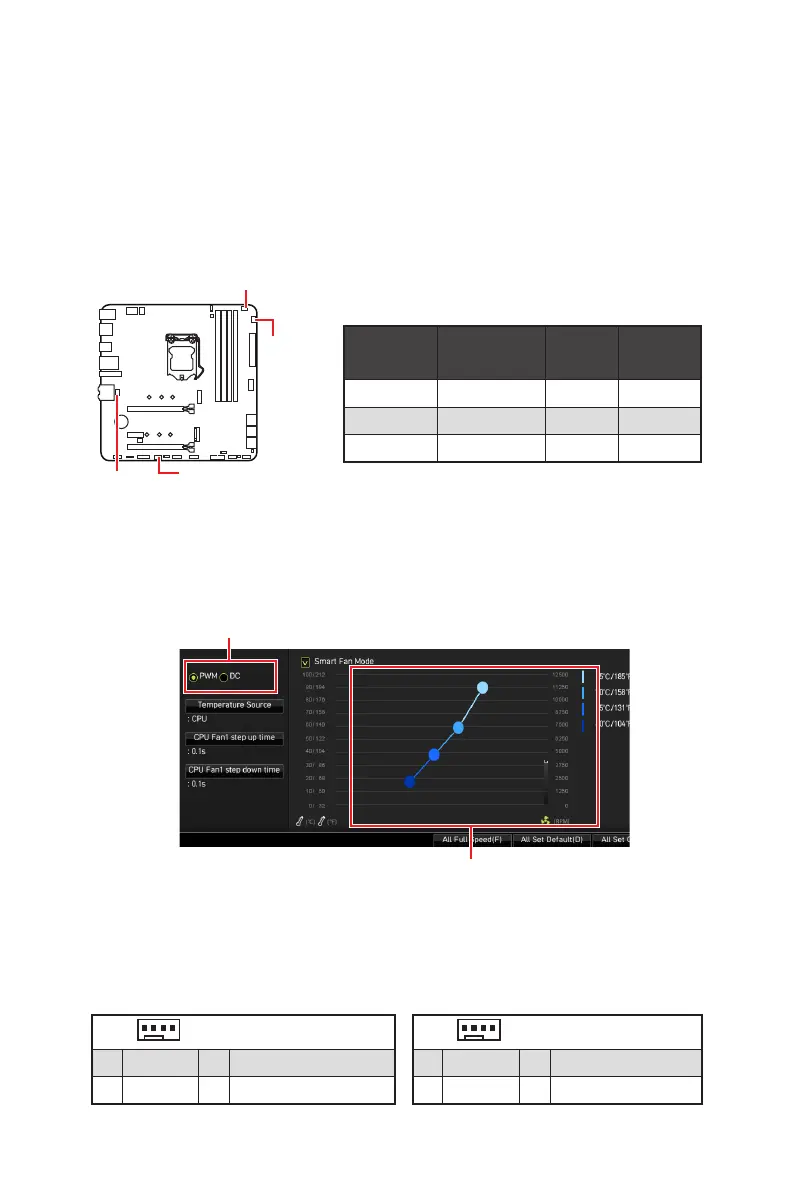

Übersicht der Komponenten


Diese Anschlüsse können im PWM (Pulse Width Modulation) Modus

Lüfteranschlüsse konstante 12V Ausgang und regeln die Lüftergeschwindigkeit




Sie können unter 
umschalten und die Lüfterdrehzahl ändern.
Wählen Sie den PWM

Wichtig
Überprüfen Sie die ordnungsgemäße Funktion der Lüfter nach dem Umschalten des

Die Gradientenpunkte des Lüfterverlaufs erlauben die

Temperatur.

Anschluss
Standard-

Max.
Strom
Max.
Leistung
CPU_FAN1 PWM Modus 2A 24W
PUMP_FAN1 PWM Modus 3A 36W
SYS_FAN1~2 DC Modus 1A 12W
1
Pin-Belegung des PWM-Modus
1 Ground 2 +12V
3 Sense 4 Speed Control Signal
1

1 Ground 2 Voltage Control
3 Sense 4 NC
SYS_FAN1
SYS_FAN2
PUMP_FAN1
CPU_FAN1

MSI MAG B560M MORTAR WIFI Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel B560
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2666, 2933, 3200 MHz
PCI Express x16 slots	2
PCI Express x1 (Gen 3.x) slots	1
Parallel processing technology support	2-Way CrossFireX
Number of SATA II connectors	0
Number of SATA III connectors	6
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
LAN controller	Realtek RTL8125B
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX210
Ethernet interface type	2.5 Gigabit Ethernet
BIOS type	UEFI AMI
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Width	244 mm
Height	80 mm
