MSI MEG B550 UNIFY-X User Manual

63
UEFI BIOS
Advanced Mode
Press Setup Mode switch or F7 function key can switch between EZ Mode and
Advanced Mode in BIOS setup.

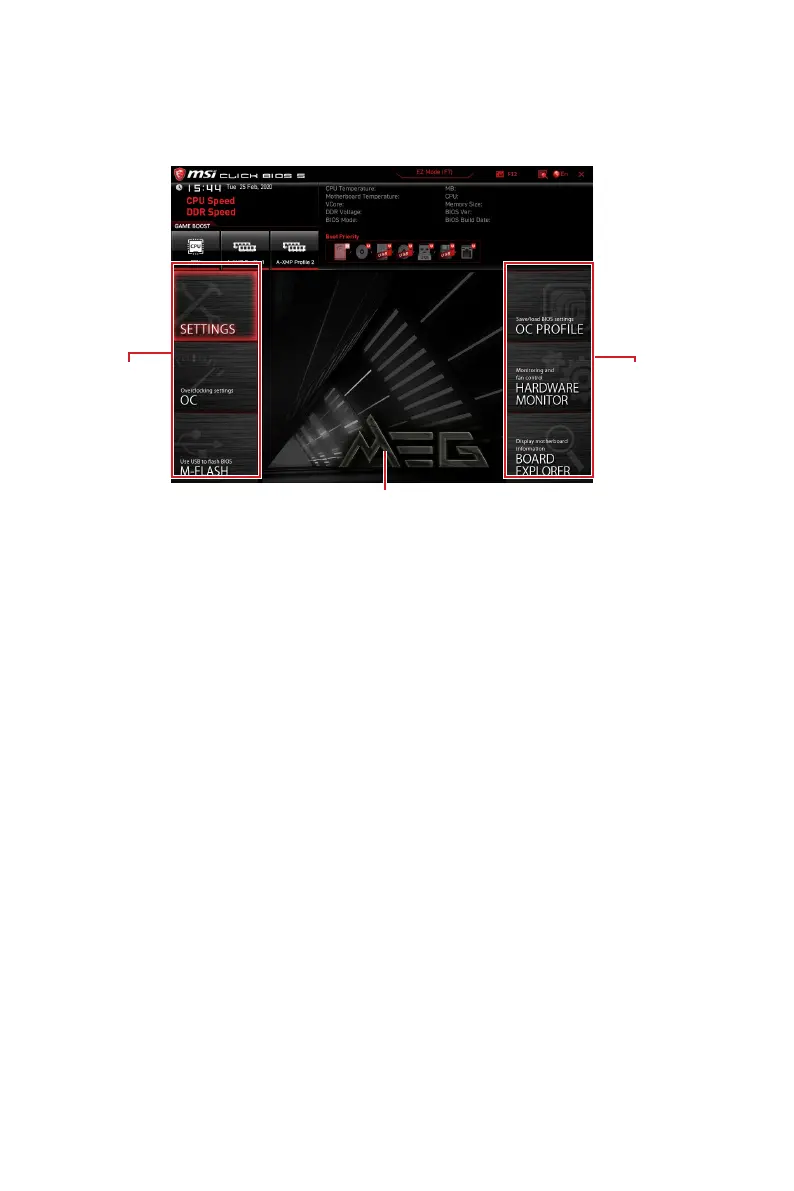

BIOS menu
selection
Menu display
BIOS menu
selection
∙ BIOS menu selection - the following options are available:
▪ SETTINGS - allows you to specify the parameters for chipset and boot devices.
▪ OC - allows you to adjust the frequency and voltage. Increasing the frequency
may get better performance.
▪ M-FLASH - provides the way to update BIOS with a USB flash drive.
▪ OC PROFILE - allows you to manage overclocking profiles.
▪ HARDWARE MONITOR - allows you to set the speeds of fans and monitor
voltages of system.
▪ BOARD EXPLORER - provides the information of installed devices on this
motherboard.
∙ Menu display - provides BIOS setting items and information to be configured.

MSI MEG B550 UNIFY-X Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 3rd Gen
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	5800, 5300, 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4733, 4800, 4866, 5000, 5100 MHz
RAID levels	0, 1, 10
Number of storage drives supported	10
Supported storage drive interfaces	M.2, SATA III
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	16384 MB
Parallel processing technology support	2-Way CrossFireX
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Headphone outputs	5
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.1
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC1220P
Component for	PC
Motherboard chipset	AMD B550
PC health monitoring	FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64
BIOS type	UEFI AMI
ACPI version	6.1
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	2.8
Cables included	SATA
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Depth	244 mm
Width	304 mm
Height	65 mm
