MSI MEG Z590 UNIFY-X User Manual

26

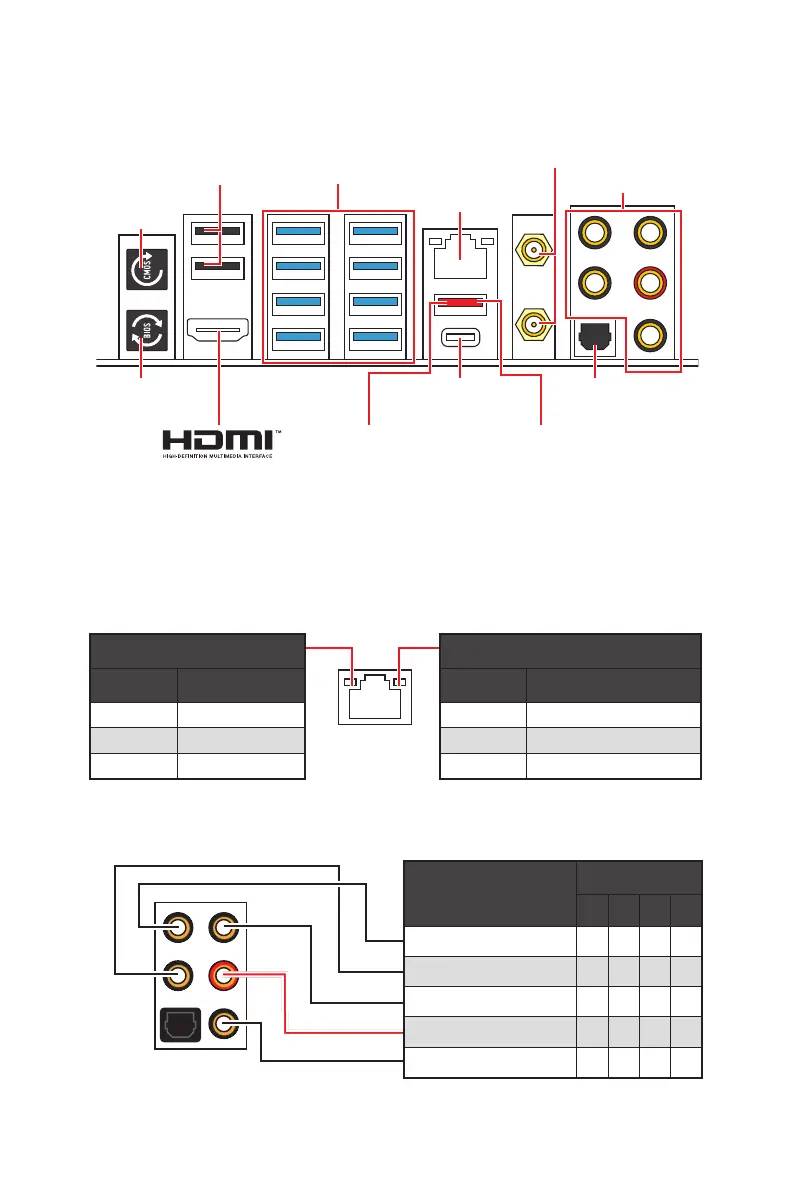

Rear I/O Panel
Rear I/O Panel
∙ Clear CMOS button - Power off your computer. Press and hold the Clear CMOS
button for about 5-10 seconds to reset BIOS to default values.
∙ Flash BIOS Port/ Button - Please refer to page 62 for Updating BIOS with Flash BIOS
Button.
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Sub-woofer Out  
Rear Speaker Out   
Line-In/ Side Speaker Out 
Line-Out/ Front Speaker Out    
Mic In
Blank: empty)
USB 3.2 Gen 2
10Gbps Type-A
USB 3.2 Gen 2x2
20Gbps Type-C
USB 3.2 Gen 1
5Gbps Type-A
2.5 Gbps LAN
Audio Ports
Optical
S/PDIF-Out
Clear CMOS
button
Wi-Fi Antenna
connectors
USB 2.0
Flash BIOS
Button
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection
Flash BIOS Port

MSI MEG Z590 UNIFY-X Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4533, 4600, 4800, 5000, 5333, 5600 MHz
Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ i9
RAID levels	0, 1, 5, 10
Number of storage drives supported	4
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Parallel processing technology support	CrossFire
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
LAN controller	Intel I225-V
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX210
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC4080
Component for	PC
Motherboard chipset	Intel Z590
Audio output channels	7.1 channels
Motherboard form factor	ATX
Number of mounting holes	9
Windows operating systems supported	Windows 10
BIOS type	-
Cables included	SATA

Weight and Dimensions

Depth	244 mm
Width	305 mm
