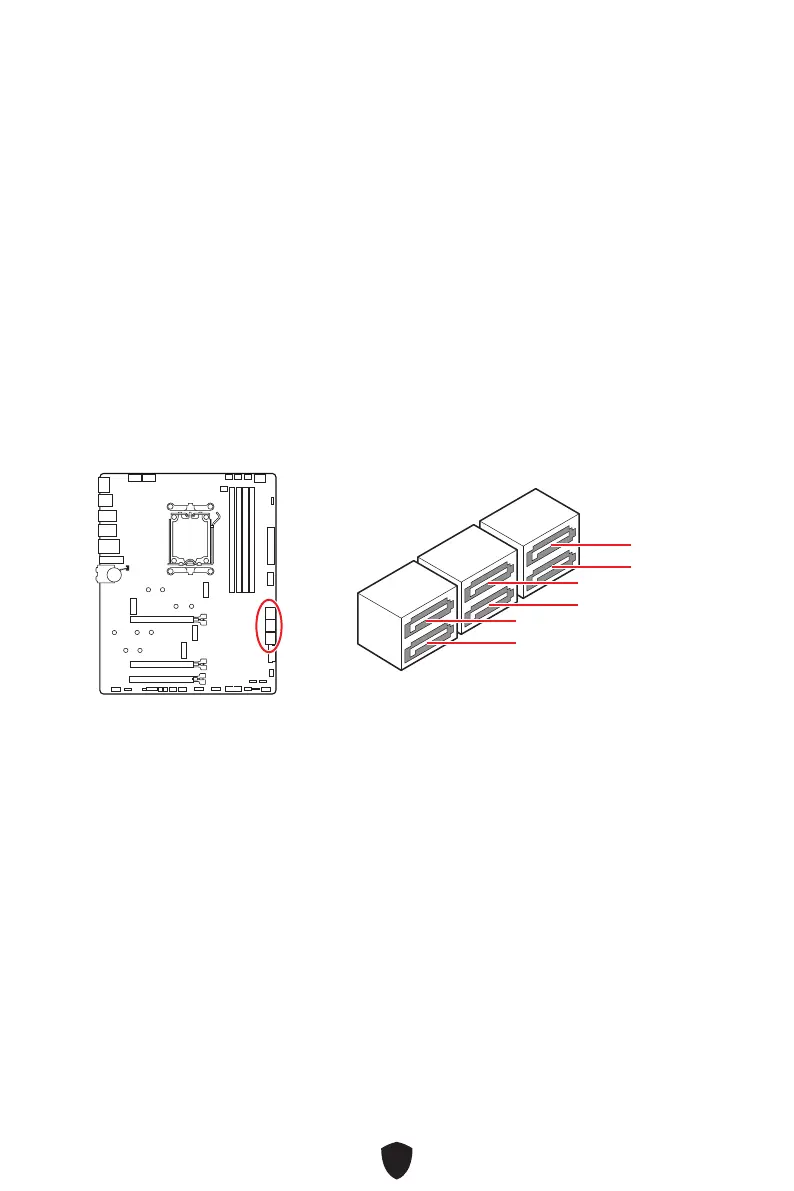

SATA_P1~2, SATA_P3~4 & SATA_S3~4: SATA 6Gb/s

Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

⚠

Important

∙

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

∙

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.

⚠

Important

∙

If you install a large and heavy graphics card, you need to use a tool such as MSI

Gaming Series Graphics Card Bolster to support its weight to prevent deformation of

the slot.

∙

For a single PCIe x16 expansion card installation with optimum performance, using

the PCI_E1 slot is recommended.

∙

When adding or removing expansion cards, always turn off the power supply and

unplug the power supply power cable from the power outlet. Read the expansion

card’s documentation to check for any necessary additional hardware or software

changes.

SATA_P1

SATA_P3

SATA_S3

SATA_P2

SATA_P4

SATA_S4
