Debug Code LED

The Debug Code LED displays progress and error codes during and after POST. Refer

to the Debug Code LED table for details.

Boot Phases

Security (SEC) – initial low-level initialization

Pre-EFI Initialization (PEI) – memory initialization

Driver Execution Environment (DXE) – main hardware initialization

Boot Device Selection (BDS) – system setup, pre-OS user interface & selecting a

bootable device (CD/DVD, HDD, USB, Network, Shell, …)

Debug Code LED Table

SEC Progress Codes

01 Power on. Reset type detection (soft/hard)

02 AP initialization before microcode loading

03 System Agent initialization before microcode loading

04 PCH initialization before microcode loading

06 Microcode loading

07 AP initialization after microcode loading

08 System Agent initialization after microcode loading

09 PCH initialization after microcode loading

0B Cache initialization

SEC Error Codes

0C - 0D Reserved for future AMI SEC error codes

0E Microcode not found

0F Microcode not loaded

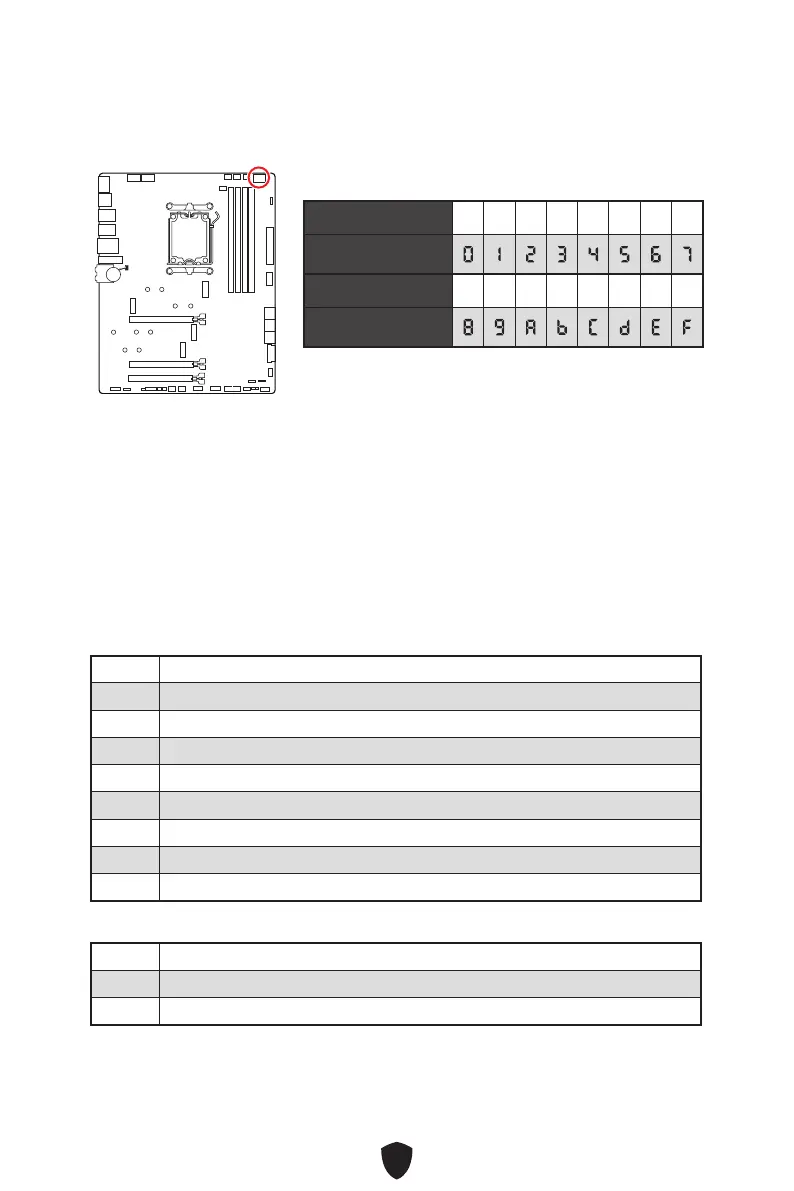

Hexadecimal Character Table

Hexadecimal 0 1 2 3 4 5 6 7

LED display

Hexadecimal 8 9 A B C D E F

LED display
