Vue d’ensemble des composants

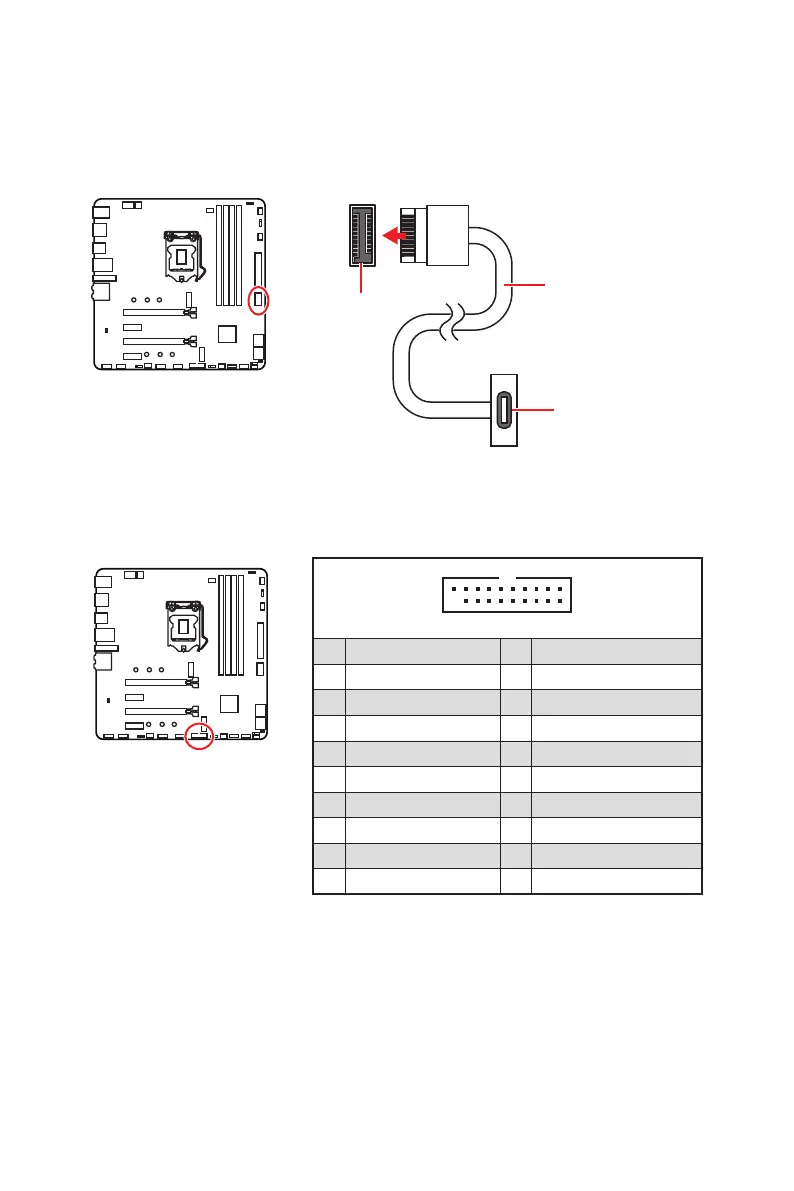

JUSB4 : Connecteur USB 3.2 Gen 2 10Gb/s Type-C



panneau avant. Pour plus de sécurité, ce connecteur a été conçu pour offrir une



dans le bon sens.

JUSB3 : Connecteur USB 3.2 Gen 1 5Gb/s

Ce connecteur vous permet de relier des ports USB 3.2 Gen 1 5Gb/s sur le panneau

avant.

⚠

Important

Notez que les câbles d’alimentation et de terre doivent être branchés correctement

afin d’éviter d’endommager la carte.

1 10

1 Power 11 USB2.0+

2 USB3_RX_DN 12 

3 USB3_RX_DP 13 Ground

4 Ground 14 USB3_TX_C_DP

5 USB3_TX_C_DN 15 USB3_TX_C_DN

6 USB3_TX_C_DP 16 Ground

7 Ground 17 USB3_RX_DP

8  18 USB3_RX_DN

9 USB2.0+ 19 Power

10 Ground 20 No Pin

JUSB4





sur le panneau

avant

Other manuals for MSI MPG Z490M GAMING EDGE WIFI

Questions and Answers:

Need help?

Do you have a question about the MSI MPG Z490M GAMING EDGE WIFI and is the answer not in the manual?

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ i9
Maximum number of SMP processors	1
Wi-Fi	Yes
LAN controller	Intel I219-V, Realtek RTL8125-CG
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.1
Ethernet interface type	2.5 Gigabit Ethernet
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4800 MHz
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
DirectX version	12.0
Maximum resolution	4096 x 2304 pixels
Number of displays supported	2
Parallel processing technology support	2-Way SLI, 3-Way CrossFireX
BIOS type	-
Cables included	SATA
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Audio chip	Realtek ALC1200
Cooling type	Passive
Certification	CE
Component for	PC
Power source type	ATX
Motherboard chipset	Intel Z490
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Number of mounting holes	9
Windows operating systems supported	Windows 10
