Hardware Setup
Memory
These DIMM slots are used for installing memory modules.
For more information on compatible components, please visit http://www.msi.com.tw/
testreport.htm
DDR2
240-pin, 1.8V
1
DIMM1
DIMM2
DIMM3
DIMM4
2
DIMM1
DIMM2
DIMM3
DIMM4
3
DIMM1
DIMM2
DIMM3
DIMM4

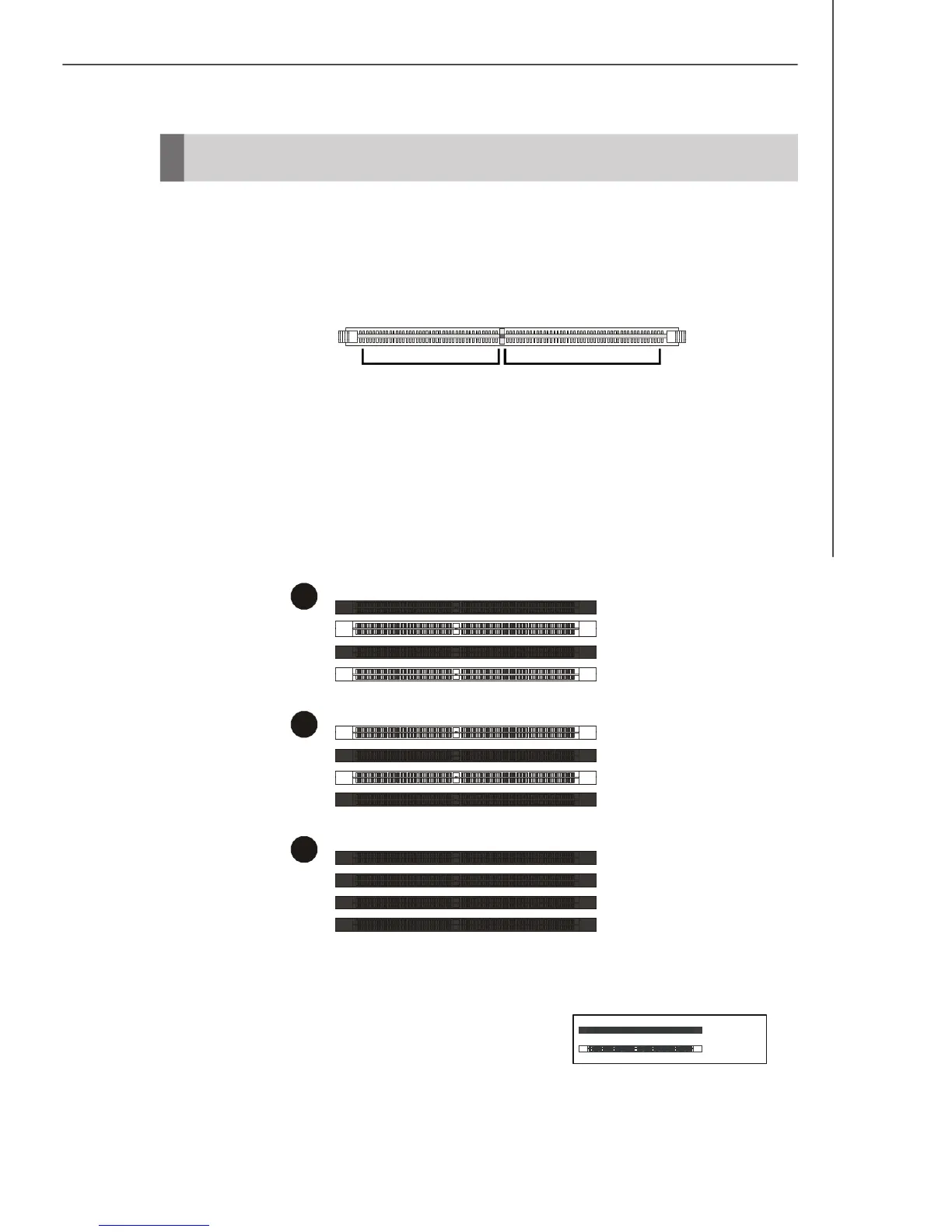

Dual-Channel Memory Population Rules
In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. Please refer to the following illustrations for population rules under
Dual-Channel mode.
64x2=128 pin56x2=112 pin
Empty
Installed
