2-11
Hardware Setup

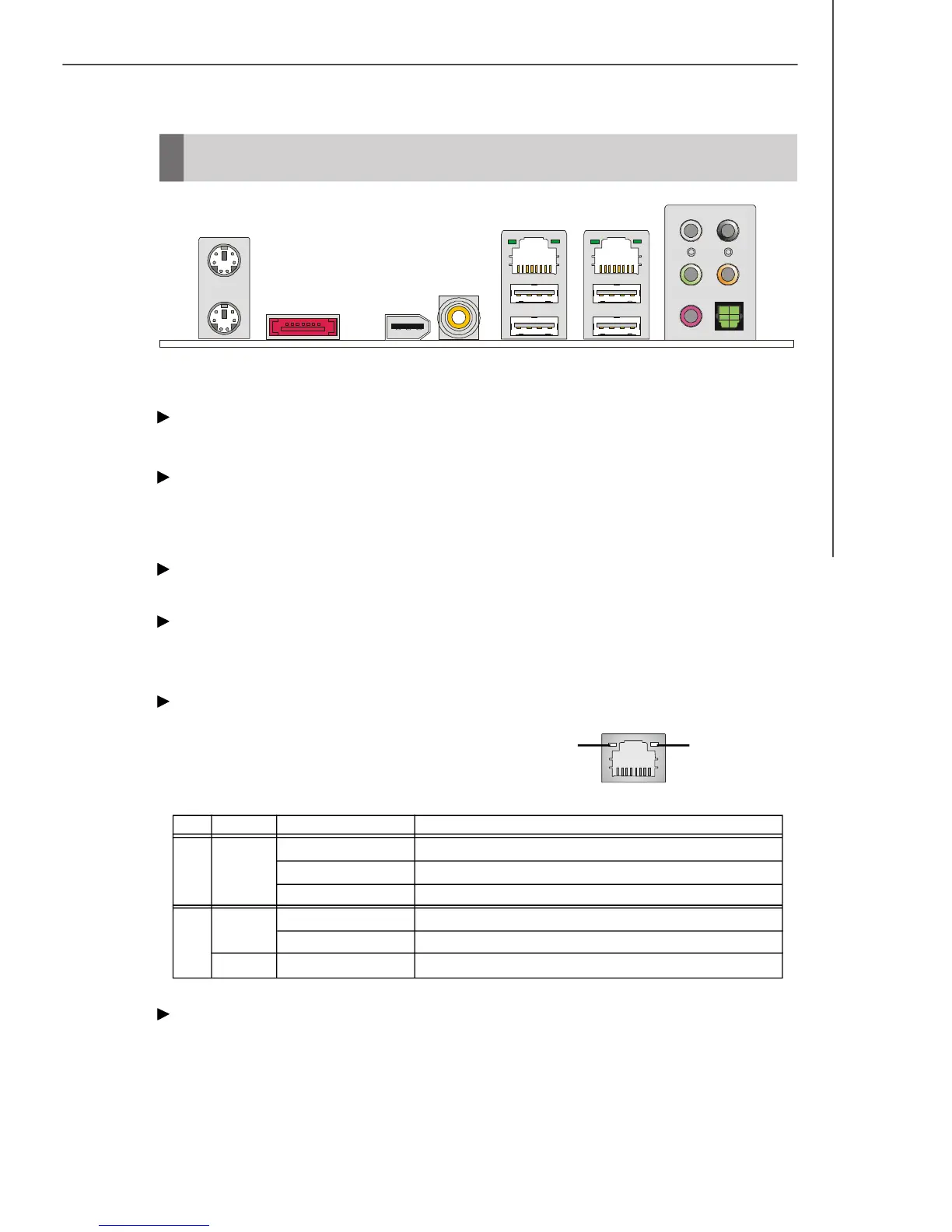

Back Panel
Mouse / Keyboard
The standard PS/2
®
mouse/keyboard DIN connector is for a PS/2
®
mouse/keyboard.
eSATA Port
This eSATA (External Serial ATA) port is used to connect the external SATA device.
You can also use the optional external SATA cable to connect SATA device and
eSATA port.
1394 Port
The IEEE1394 port on the back panel provides connection to IEEE1394 devices.
S/PDIF-Out(Coaxial)
This SPDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through a coaxial cable.
LAN
The standard RJ-45 LAN jack is for con-
nection to the Local Area Network (LAN).
You can connect a network cable to it.
Keyboard
SS-Out
Mouse
RS-Out
CS-Out
S/PDIF-Out
(Optical)
Line-Out
1394 PorteSATA Port S/PDIF-Out
(Coaxial)
LAN
USB Ports Mic/Line-In
LED Color LED State condition
Off LAN link is not established.
Left Orange On (steady state) LAN link is established.
On (brighter & pulsing)The computer is communicating with another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
Right On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.
Link IndicatorActivity Indicator
