3-7
BIOS Setup

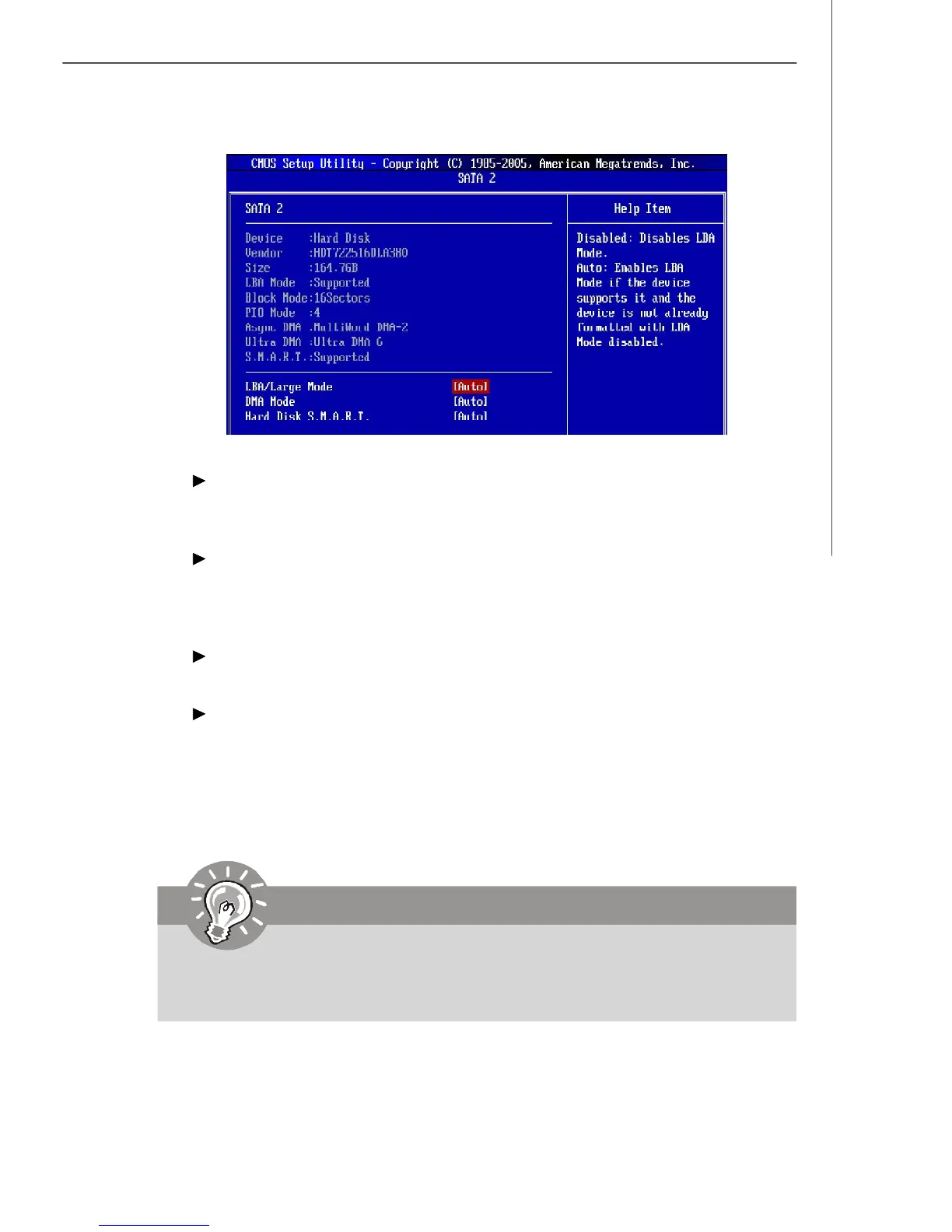

IDE Primary/ Secondary Master/ Slave, SATA 1/2/3/4 , E-SATA 1/2
It will showing the device informations that you connected to the IDE/SATA
connector.
LBA/Large Mode
This allows you to enable or disable the LBA Mode. Setting to Auto enables LBA
mode if the device supports it and the devices is not already formatted with LBA
mode disabled.
DMA Mode
Select DMA Mode.
Hard Disk S.M.A.R.T.
This allows you to activate the S.M.A.R.T. (Self-Monitoring Analysis & Reporting
Technology) capability for the hard disks. S.M.A.R.T is a utility that monitors your
disk status to predict hard disk failure. This gives you an opportunity to move
data from a hard disk that is going to fail to a safe place before the hard disk
becomes offline.
Important
IDE Primary Master/ Slave, SATA 1/2/3/4, E-SATA 1/2 are appearing
when you connect the IDE/ SATA devices to the IDE/ SATA connectors on
the mainboard.
