MSI MS-98F5 User Manual

2-9
Hardware Setup Industrial Computer Board

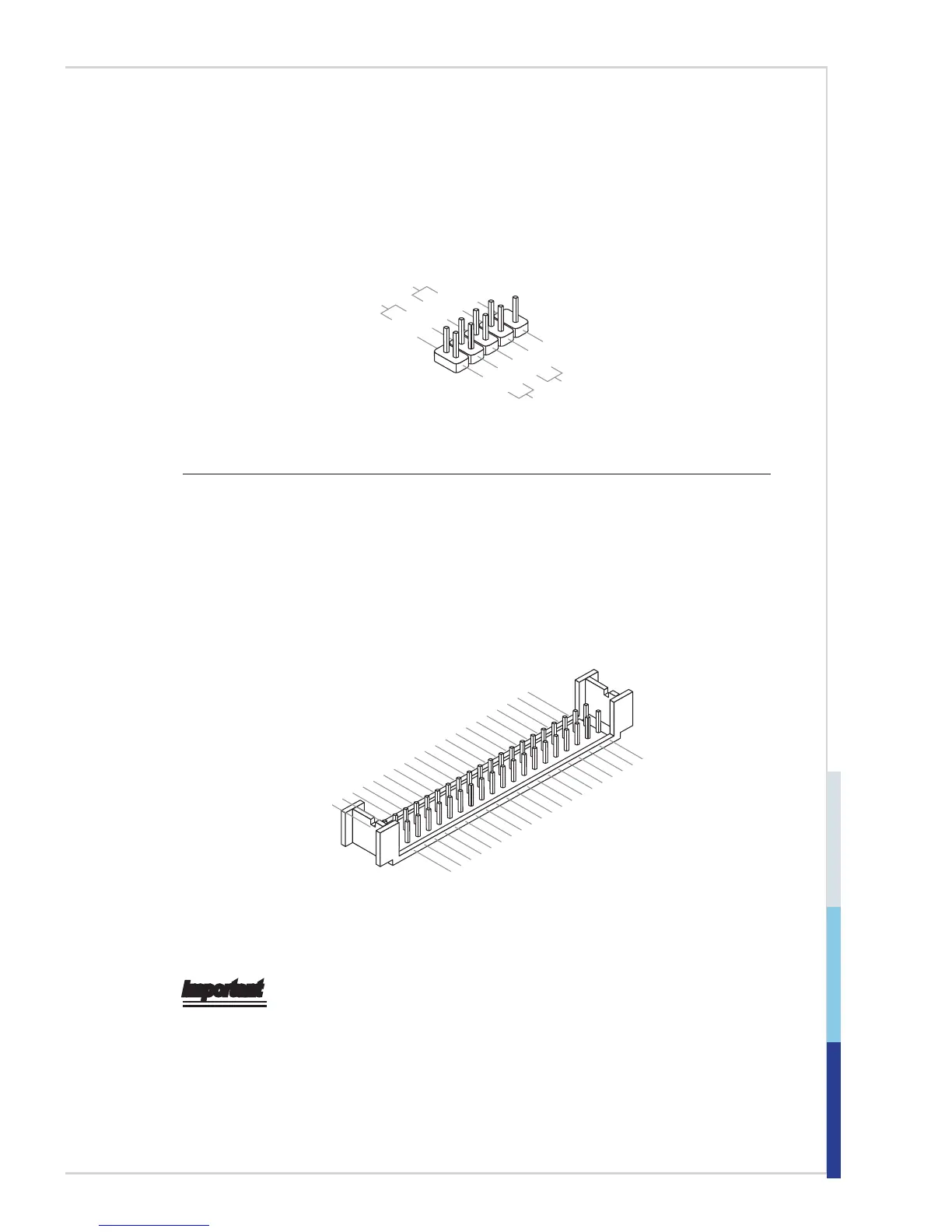

Front Panel Connector: JFP1
This front panel connector is provided for electrical connection to the front panel
switches & LEDs and is compliant with Intel Front Panel I/O Connectivity Design
Guide.
1.+
3.-
10.No Pin
5.-
Reset Switc
h
HDD LE
D
P
ower Switch
Power LED
7.+
9.Reserved
8.-
6.+
4.-
2.+
LVDS Connector: JLVDS1
The LVDS (Low Voltage Di󰀨erential Signal) connector provides a digital interface
typically used with at panels. After connecting an LVDS interface at panel to
the JLVDS1, be sure to check the panel datasheet and set the LVDS jumper to
proper power voltage.
39.LVDSB_CLK
#
27.LVDSB_DATA#1
25.LVDSB_DATA1
23.GND
21.LVDSA_DATA#3
19.LVDSA_DATA3
17.GND
15.LVDSA_DATA#1
13.LVDSA_DATA1
11.LVDS_BLON
9.L_BKLT_CTRL#
7.LVDS_DDC_CLK
5.LCD_VDD
3.LCD_VDD
1.+12V
40.
LVDSA_CLK#
28.LVDSB_DATA#0
26.
LVDSB_DATA0
24.GND
22.LVDSA_DATA#2
20.LVDSA_DATA2
18.GND
16.LVDSA_DATA#0
14.LVDSA_DATA0
12.LVDS_DETECT#_C
10.LVDS_VDD_EN
8.
LVDS_DDC_DATA
6.LCD_VDD
4.+12V
2.+12V
37.LVDSB_CLK
35.GND
33.LVDSB_DATA#3
31.LVDSB_DATA3
29.GND
38.LVDSA_CLK
36.GND
34.LVDSB_DATA#2
32.LVDSB_DATA2
30.GND
Important
Pin 12 is a detect pin. When using a customized LVDS cable, pin 12 should be a
signal ground with a low impedance. Otherwise, LVDS will not function.
