2-6
Hardware Setup MS-98I8
Connector

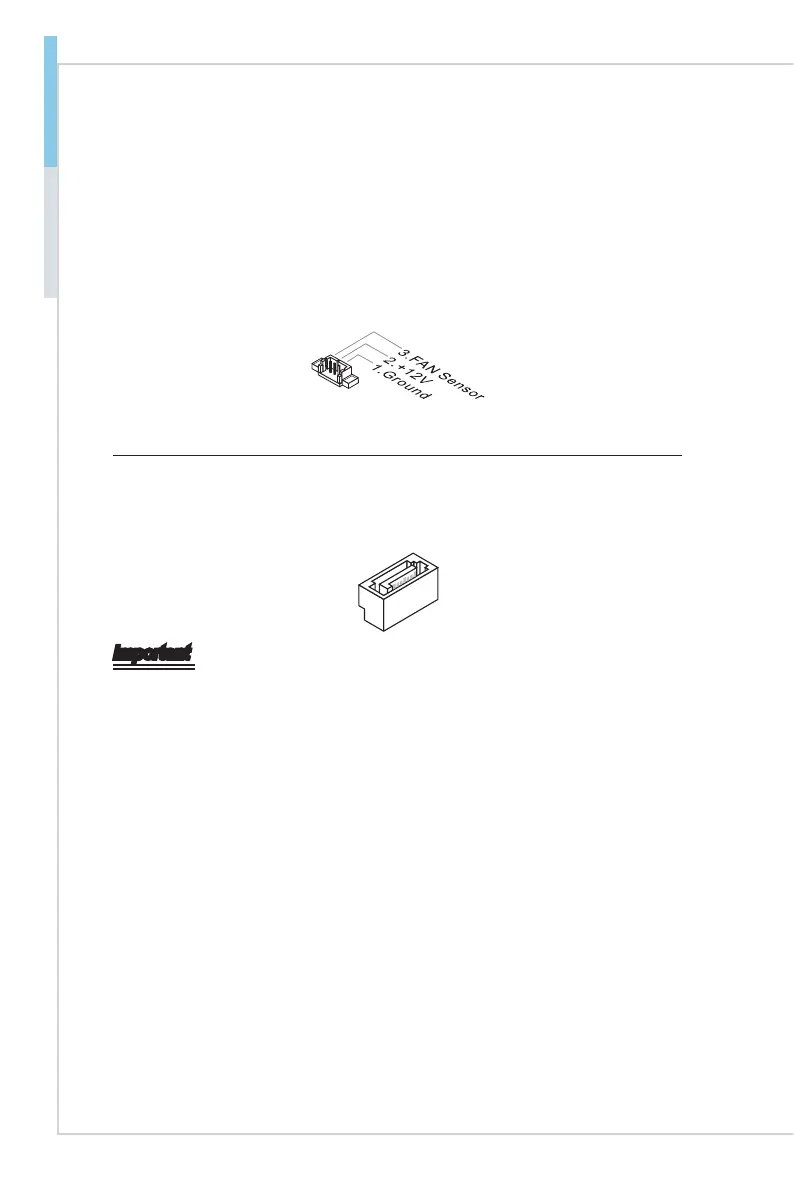

Fan Power Connector: SYSFAN1
The fan power connector supports system cooling fan with +12V. When connecting
the wire to the connectors, always note that the red wire is the positive and should
be connected to the +12V; the black wire is Ground and should be connected to
GND. If the motherboard has a System Hardware Monitor chipset onboard, you
must use a specially designed fan with speed sensor to take advantage of the
CPU fan control.
Serial ATA Connector: SATA1
This connector is a high-speed Serial ATA interface port. Each connector can
connect to one Serial ATA device.
Important
Please do not fold the SATA cable into a 90-degree angle. Otherwise, data loss
may occur during transmission.
To Next Page
