1-4 1-5
Overview
4

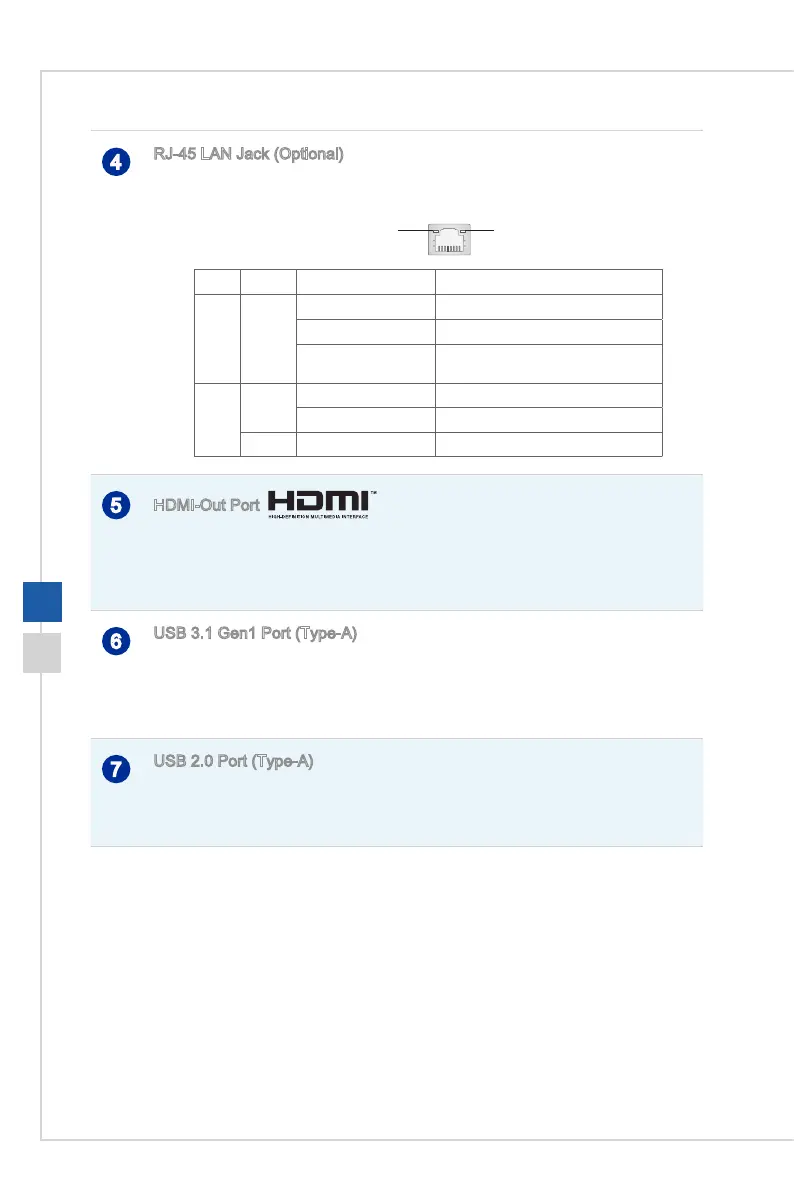

RJ-45 LAN Jack (Optional)
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN)� You can connect a network cable to it�
YellowGreen/ Orange
LED Color LED State Condition
Right Yellow O LAN link is not established�
On (steady state) LAN link is established�
On (brighter & pulsing) The computer is communicating with
another computer on the LAN�
Left Green O 10 Mbit/sec data rate is selected�
On 100 Mbit/sec data rate is selected�
Orange On 1000 Mbit/sec data rate is selected�
5
HDMI-Out Port
The High-Denition Multimedia Interface (HDMI) is an all-digital audio/video
interface capable of transmitting uncompressed streams� HDMI supports all
TV format, including standard, enhanced, or high-denition video, plus multi-
channel digital audio on a single cable�
6
USB 3�1 Gen1 Port (Type-A)
The USB (Universal Serial Bus) port is for attaching USB devices such as
keyboard, mouse, or other USB-compatible devices� It supports up to 5Gbit/s
(SuperSpeed) data transfer rate� The USB 3�1 Gen1 port is backward-
compatible with USB 2�0 devices�
7
USB 2�0 Port (Type-A)
The USB (Universal Serial Bus) port is for attaching USB devices such
as keyboard, mouse, or other USB-compatible devices� It supports up to
480Mbit/s (Hi-Speed) data transfer rate�
To Next Page
