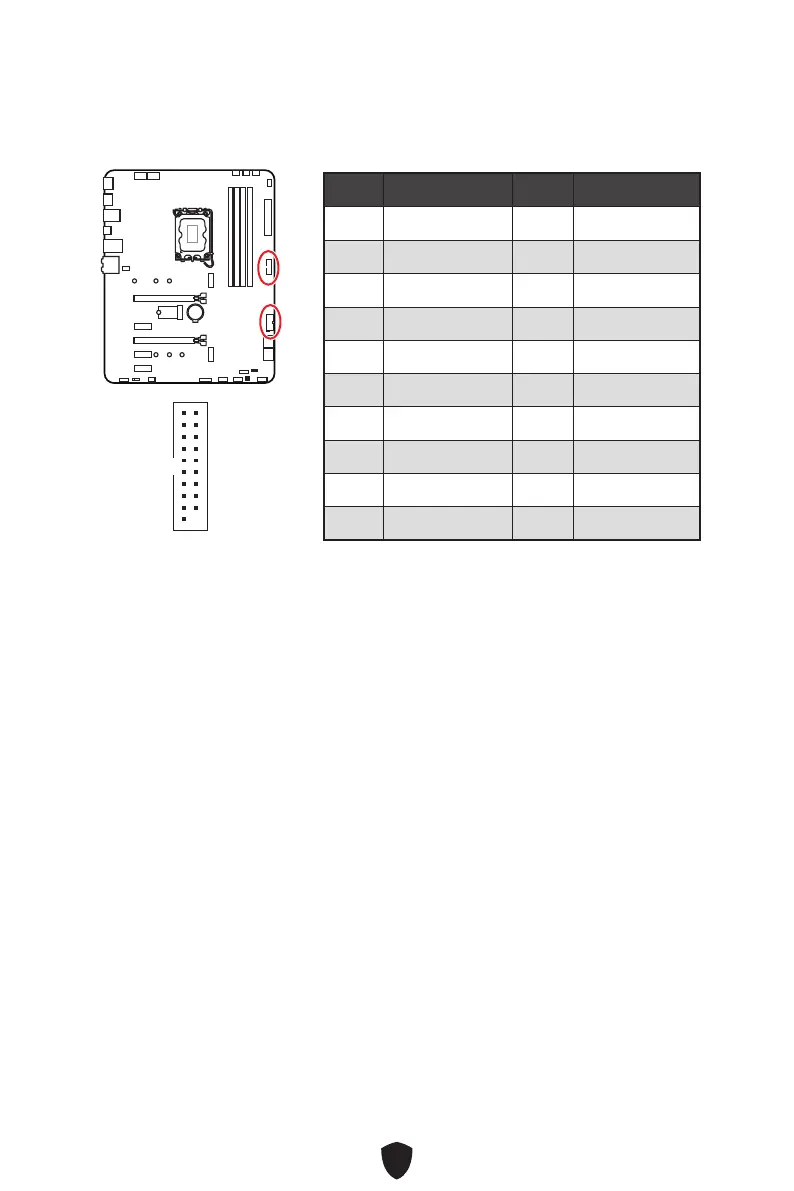

JUSB3~4 : Connecteurs USB 3.2 Gen 1
Ces connecteurs vous permettent de relier des ports USB 3.2 Gen 1 5 Gb/s sur le
panneau avant.

Important
Notez que les câbles d’alimentation et de terre doivent être branchés correctement
afin d’éviter d’endommager la carte.
Broche Nom de signal Broche Nom de signal
1 Power 2 USB3_RX_DN
3 USB3_RX_DP 4 Ground
5 USB3_TX_C_DN 6 USB3_TX_C_DP
7 Ground 8 USB2.0-
9 USB2.0+ 10 Ground
11 USB2.0+ 12 USB2.0-
13 Ground 14 USB3_TX_C_DP
15 USB3_TX_C_DN 16 Ground
17 USB3_RX_DP 18 USB3_RX_DN
19 Power 20 No Pin
1
10 11
20

MSI PRO Z790-S WIFI Specifications

General

Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium Gold
Supported processor sockets	LGA 1700
Non-ECC	Yes
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	192 GB
Supported memory clock speeds	6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max)	6600 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
HDMI version	1.4
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express
Cables included	SATA
BIOS type	-
Parallel processing technology support	Not supported
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel Z790
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64

Weight and Dimensions

Depth	304.8 mm
Width	243.8 mm
