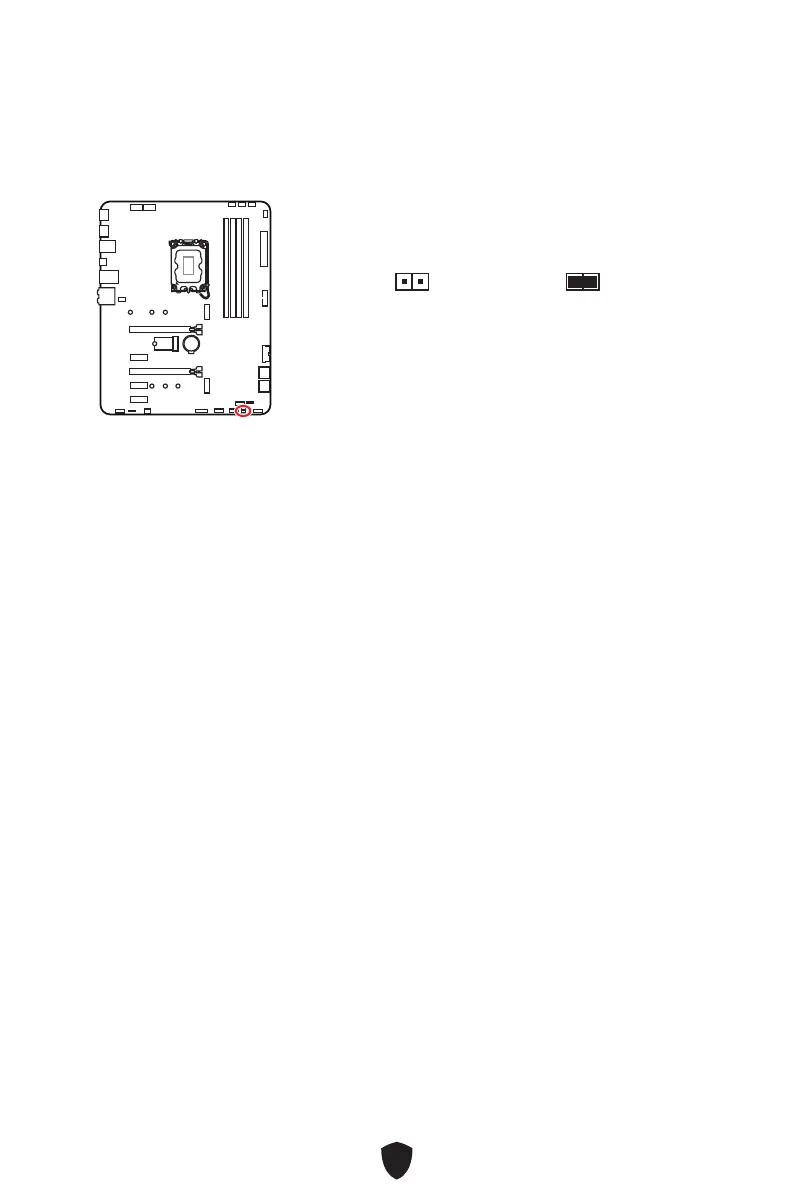

JBAT1: Clear CMOS (Reset BIOS) Jumper
There is CMOS memory onboard that is external powered from a battery located on
the motherboard to save system configuration data. If you want to clear the system
configuration, set the jumpers to clear the CMOS memory.
Keep Data
(default)
Clear CMOS/
Reset BIOS
Resetting BIOS to default values
1. Power off the computer and unplug the power cord.
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and Power on the computer.

MSI PRO Z790-S WIFI Specifications

General

Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium Gold
Supported processor sockets	LGA 1700
Non-ECC	Yes
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	192 GB
Supported memory clock speeds	6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max)	6600 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
HDMI version	1.4
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express
Cables included	SATA
BIOS type	-
Parallel processing technology support	Not supported
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel Z790
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64

Weight and Dimensions

Depth	304.8 mm
Width	243.8 mm
