Overview of Components

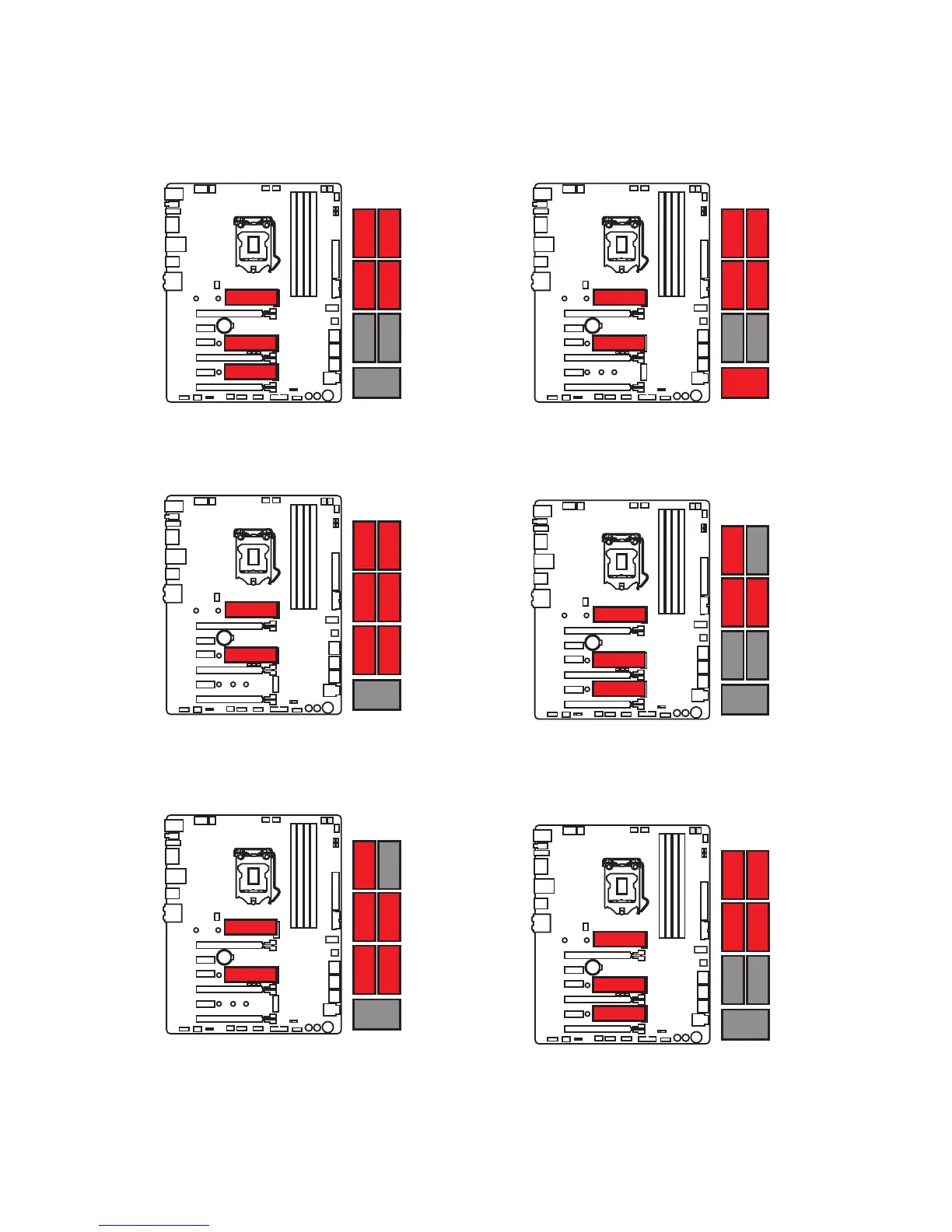

M.2 slots with examples of various combination possibilities
3xM.2 PCIe SSDs + 4xSATA HDDs
PCIe
PCIe
PCIe
SATA4 SATA2
SATA1SATA3
PCIe
PCIe
SATA4 SATA2
SATA1SATA3
2xM.2 PCIe SSDs + 1x U.2 SSD +
4xSATA HDDs
U2_1
2xM.2 PCIe SSDs + 6xSATA HDDs
PCIe
PCIe
SATA4 SATA2
SATA1SATA3SATA5
SATA6
1xM.2 SATA SSD + 1x M.2 PCIe SSD
+ 5xSATA HDDs
PCIe
SATA
SATA4 SATA2
SATA3SATA5
SATA6
2xM.2 SATA SSDs + 1xM.2 PCIe SSD+
3xSATA HDDs
1xM.2 SATA SSDs + 2xM.2 PCIe SSD+
4xSATA HDDs
SATA
PCIe
SATA
SATA4 SATA2
SATA3
PCIe
PCIe
SATA
SATA4 SATA2
SATA3
SATA1
