6

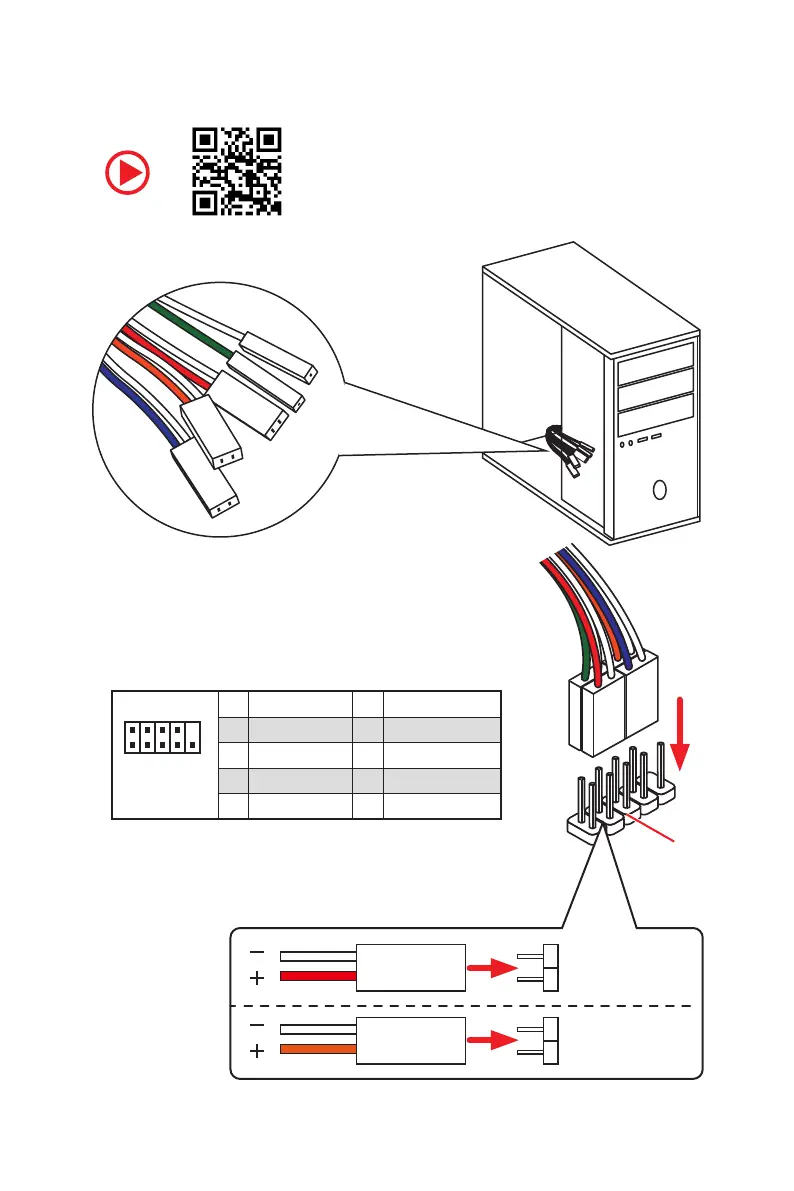

Quick Start
Conne
c
ting the Front Panel Header
http://youtu.be/DPELIdVNZUI
1
2
10
9
JFP1
1
HDD LED +
2
Power LED +
3
HDD LED -
4
Power LED -
5
Reset Switch
6
Power Switch
7
Reset Switch
8
Power Switch
9
Reserved
10
No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
5
7
Table of Contents
Unpacking
1
Safety Information
2
Quick Start
3
Preparing Tools and Components
3
Installing a Processor
4
Installing DDR4 Memory
5
Connecting the Front Panel Header
6
Installing the Motherboard
7
Installing SATA Drives
8
Installing a Graphics Card
9
Connecting Peripheral Devices
10
Connecting the Power Connectors
11
Power on
12
Table of Contents
13
Specifications
16
Block Diagram
21
Rear I/O Panel
22
LAN Port LED Status Table
22
Audio Ports Configuration
22
Realtek HD Audio Manager
23
Overview of Components
25
CPU Socket
27
DIMM Slots
28
PCI_E1~4: Pcie Expansion Slots
29
M2_1, M2_2: M.2 Slots (Key M)
30
SATA1~4: SATA 6Gb/S Connectors
31
JFP1, JFP2: Front Panel Connectors
31
CPU_PWR1, ATX_PWR1: Power Connectors
32
JUSB1~2: USB 2.0 Connectors
33
JUSB3~4: USB 3.1 Gen1 Connectors
33
CPU_FAN1,SYS_FAN1~2, PUMP_FAN1: Fan Connectors
34
JAUD1: Front Audio Connector
35
JCI1: Chassis Intrusion Connector
35
JTPM1: TPM Module Connector
36
JBAT1: Clear CMOS (Reset BIOS) Jumper
36
EZ Debug LED
37
JRGB1: RGB LED Connector
37
BIOS Setup
38
Entering BIOS Setup
38
Resetting BIOS
39
Updating BIOS
39
EZ Mode
40
Advanced Mode
42
Settings
43
Advanced
43
Boot
49
Security
50
Save & Exit
51
M-Flash
60
Oc Profile
61
Hardware Monitor
62
Software Description
63
Installing Windows 10
63
Installing Drivers
63
Installing Utilities
63
App Manager
64
Live Update 6
65
Command Center
67
Gaming App
71
X-Boost
76
Mysticlight
78
Msi Smart Tool
80
Ramdisk
82
Gaming Lan Manager
83
Dragon Eye
85
Steelseries Engine 3
86
Intel ® Extreme Tuning Utility
88
Cpu-Z
89
Tridef VR
90
Tridef Smartcam
93
RAID Configuration
94
Using Intel ® Rapid Storage Technology Option ROM
94
Degraded RAID Array
97
M.2 Pcie SSD RAID
99
Intel ® Optane™ Memory Configuration
102
System Requirements
102
Installing the Intel ® Optane™ Memory
102
Removing the Intel ® Optane™ Memory
104
Troubleshooting
105
Troubleshooting
106
Regulatory Notices
107
