MSI Z790 EDGE WIFI User Manual

45

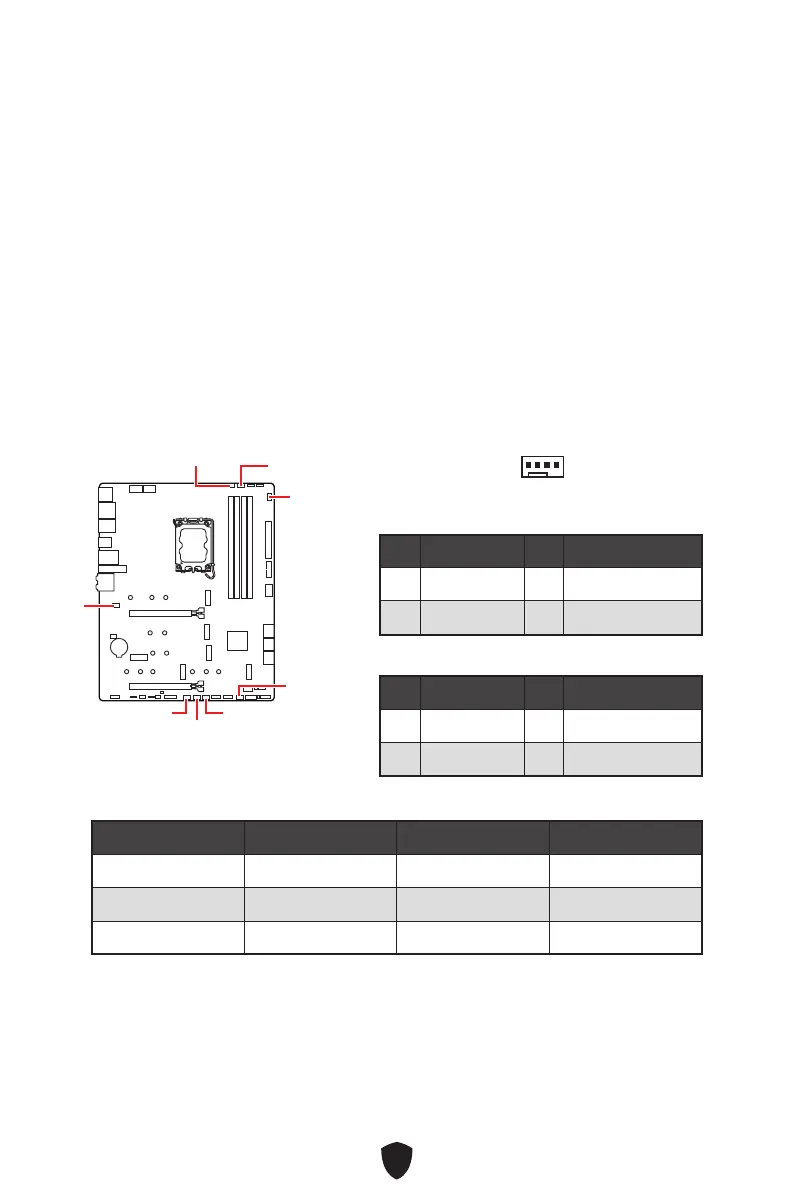

CPU_FAN1, PUMP_FAN1, SYS_FAN1~6:
Stromanschlüsse für Lüfter
Diese Anschlüsse können im PWM (Pulse Width Modulation) Modus oder
Spannungsmodus betrieben werden. Im PWM-Modus bieten die Lüfteranschlüsse
konstante 12V Ausgang und regeln die Lüftergeschwindigkeit per
Drehzahlsteuersignal.
Sie können unter BIOS > HARDWARE MONITOR die Lüfterdrehzahl ändern. Damit
können Sie DC oder PWM auf Ihren Lüftermodus einstellen. Wählen Sie den Smart
Fan Mode, die Lüftergeschwindigkeit ändert sich entsprechend der CPU- oder
Systemtemperatur. Deaktivieren Sie den Smart Fan Mode, der Lüfter dreht sich mit
maximaler Geschwindigkeit.

Wichtig
Überprüfen Sie die ordnungsgemäße Funktion der Lüfter nach dem Umschalten des
PWM-/ DC-Modus.
CPU_FAN1
SYS_FAN6
SYS_FAN2
SYS_FAN3
SYS_FAN4
SYS_FAN5
PUMP_FAN1
SYS_FAN1
1
Pin-Belegung des PWM-Modus
Pin Signalname Pin Signalname
1 Ground 2 +12V
3 Sense 4 Speed Control Signal
Pin-Belegung des DC-Modus
Pin Signalname Pin Signalname
1 Ground 2 Voltage Control
3 Sense 4 NC
Spezifikationen des Lüfteranschlusses
Anschluss Standard-lüftermodus Max. Strom Max. Leistung
CPU_FAN1 Auto Modus 2A 24W
PUMP_FAN1 PWM Modus 3A 36W
SYS_FAN1~6 DC Modus 1A 12W
