NI myRIO-1950 Physical Dimensions

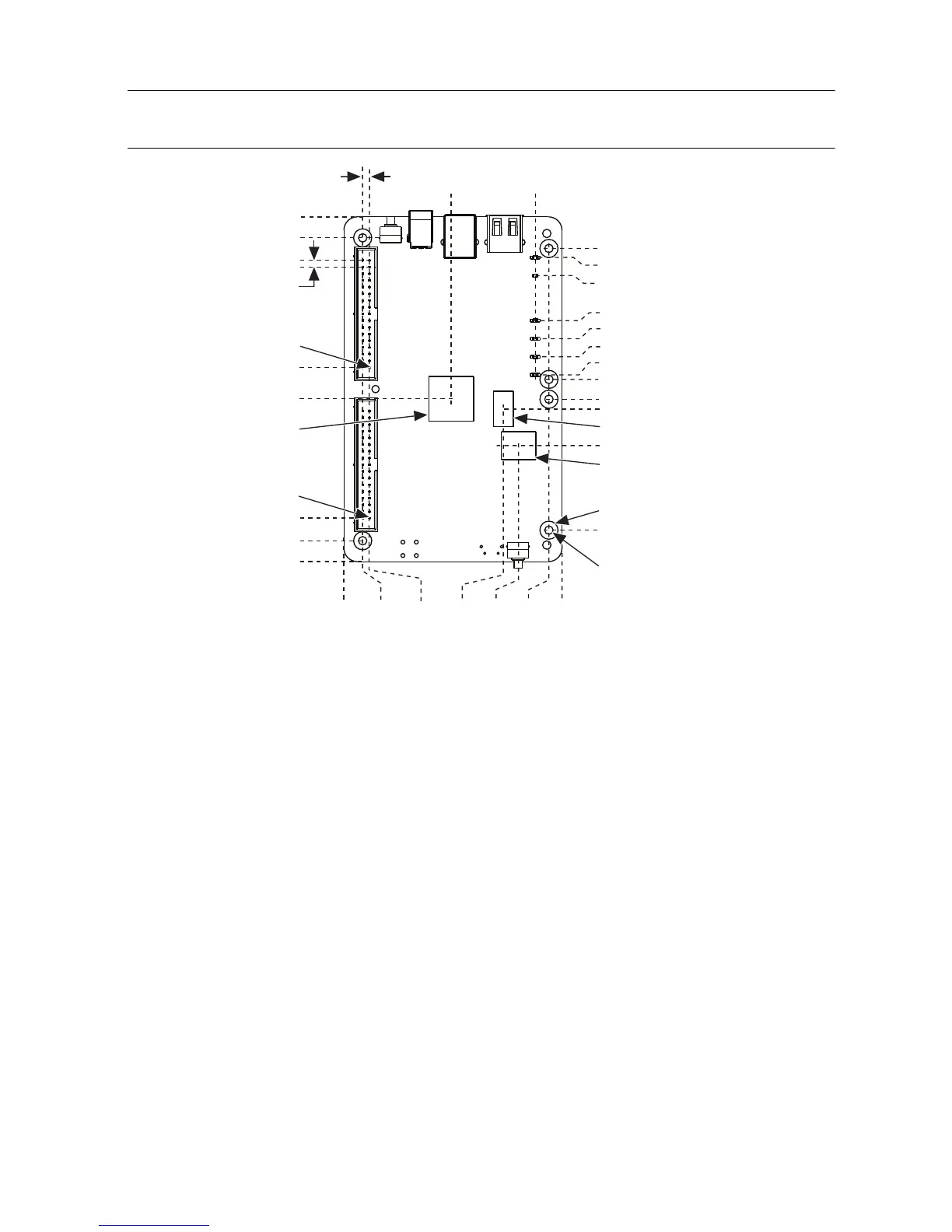

Figure 8. NI myRIO-1950 Dimensions, Front
0.0 mm
(0.0 in.)
122.8 mm (4.83 in.)
0.0 mm (0.0 in.)
8.0 mm (0.31 in.)
16.5 mm (0.65 in.)
2 x 7.1 mm
(0.28 in.)
9.7 mm
(0.38 in.)
60.4 mm
(2.38 in.)
66.2 mm
(2.61 in.)
77.7 mm
(3.06 in.)
82.7 mm
(3.26 in.)
6 x Ø 3.2 mm
(0.13 in.)
6 x maximum fastener head or
standoff Ø is 6.86 mm (0.27 in.)
12.0 mm
(0.47 in.)
Height 0.99 mm (0.039 in.)
44.0 mm (1.73 in.)
Height 1.19 mm (0.047 in.)
57.9 mm (2.28 in.)
61.6 mm (2.43 in.)
69.1 mm (2.72 in.)
70.8 mm (2.79 in.)
77.7 mm (3.06 in.)
84.5 mm (3.33 in.)
91.4 mm (3.6 in.)
108.4 mm (4.27 in.)
115.3 mm (4.54 in.)
118.7 mm (4.68 in.)
Pin 1
Height 1.60 mm
(0.063 in.)
61.7 mm (2.43 in.)
73.6 mm (2.90 in.)
32 x 2.5 mm
(0.10 in.)
130.7 mm (5.15 in.)
2.5 mm
(0.10 in.)
40.6 mm
(1.6 in.)
72.5 mm
(2.86 in.)
Pin 1

National Instruments myRIO-1950 Specifications

General

Brand	National Instruments
Model	myRIO-1950
Category	I/O Systems
Language	English
