National Instruments PXIe-8861 User Manual

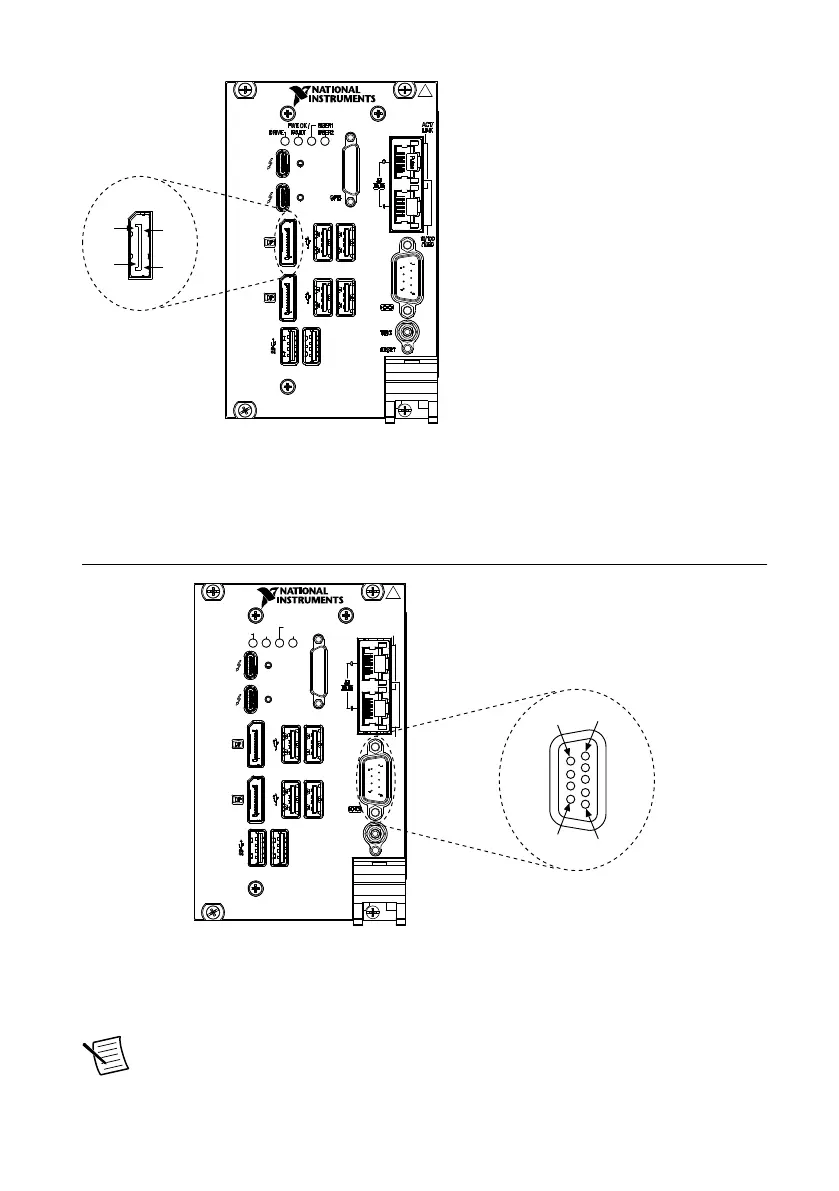

Figure 4. DisplayPort Connector Location and Pinout
1
19
20
2
PXIe-8861
Embedded Controller
1.2
RS-232 Serial Port
The following figure shows the location and pinouts for the serial port connector on the
PXIe-8861.
Figure 5. Serial Port Connector Location and Pinout
PXIe-8861
Embedded Controller
TRIG
RESET
GPIB
DRIVE
PWR OK/
FAULT
USER1
USER2
ACT/
LINK
Pulse
10/100
/1000
5
1
6
9
1.2
Ethernet
The following figure shows the dual stacked Ethernet connector location on the PXIe-8861.
Note Only Ethernet Port 0 supports the Wake on LAN feature.
18 | ni.com | PXIe-8861 User Manual

National Instruments PXIe-8861 Specifications

General

Brand	National Instruments
Model	PXIe-8861
Category	Controller
Language	English
