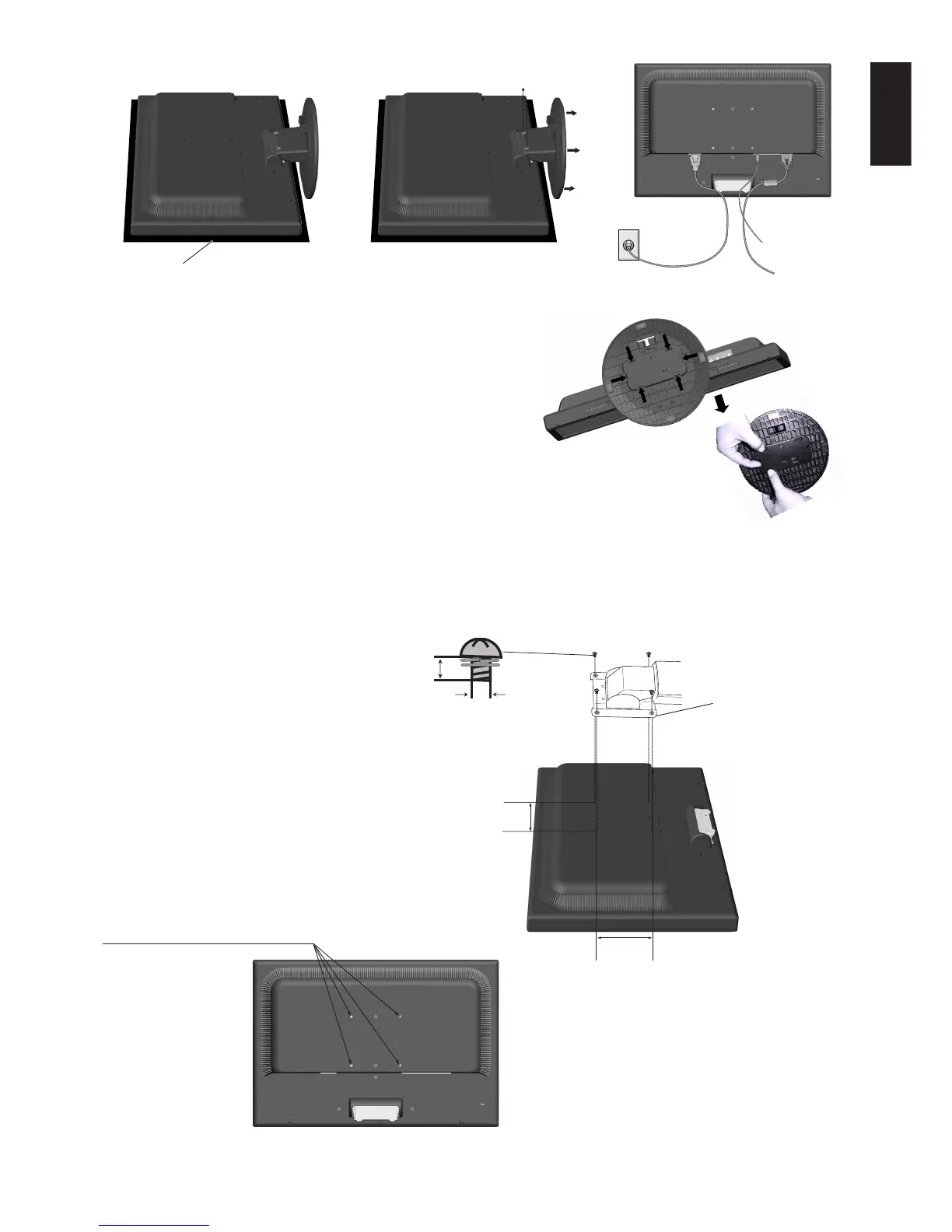

Figure R.1

Non-abrasive surface

Figure R.2 Figure R.3

Removing the Base

NOTE: Always remove the Base when shipping the LCD.

1. Place monitor face down on a non-abrasive surface (Figure R.1).

2. While using your fingers, press the 3 locking tabs of left or right side

at the same time to unlock the Base.

3. While using your fingers, press the 3 locking tabs of another side

at the same time to unlock the Base.

4. Pull out the unlocked Base.

Connecting a Flexible Arm

This LCD monitor is designed for use with a flexible arm.

Please use screws (4pcs) as shown in the picture when installing. To meet the safety requirements, the monitor must be

mounted to an arm which, guaranties the necessary stability under consideration of the weight of the monitor.

The LCD monitor shall only be used with an approved arm (e.g. GS mark).

NOTE: The mounting stand shall be able to sustain at least 21 kg and UL certified.

4-SCREWS (M4)

(MAX depth: 10 mm)

If use other screw,

check depth of hole.

Weight of LCD assembly: AS191WM: 4.3 kg (MAX)

AS221WM: 4.9 kg (MAX)

Specifications

Tighten all screws

100 mm

Thickness of Bracket

(Arm) 2.0 ~ 3.2 mm

12 mm

4 x 12 mm with lock washer

and flat washer

Locking tabs

Questions and Answers:

Need help?

Do you have a question about the NEC AccuSync AS191WM and is the answer not in the manual?

NEC AccuSync AS191WM Specifications

General

Pixel pitch	0.28 x 0.28 mm
Aspect ratio	16:10
Display diagonal	19 \
Separate H/V sync	Yes
Display resolution	1440 x 900 pixels
Video input impedance	75 Ω
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 81.1 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
DVI-I ports quantity	0
Certification	Energy Star 5.0 TCO 5.0 EPEAT Silver
Product color	Black
Compliance industry standards	RoHS
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
Power consumption (typical)	21 W
Power consumption (PowerSave)	0.4 W
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions
