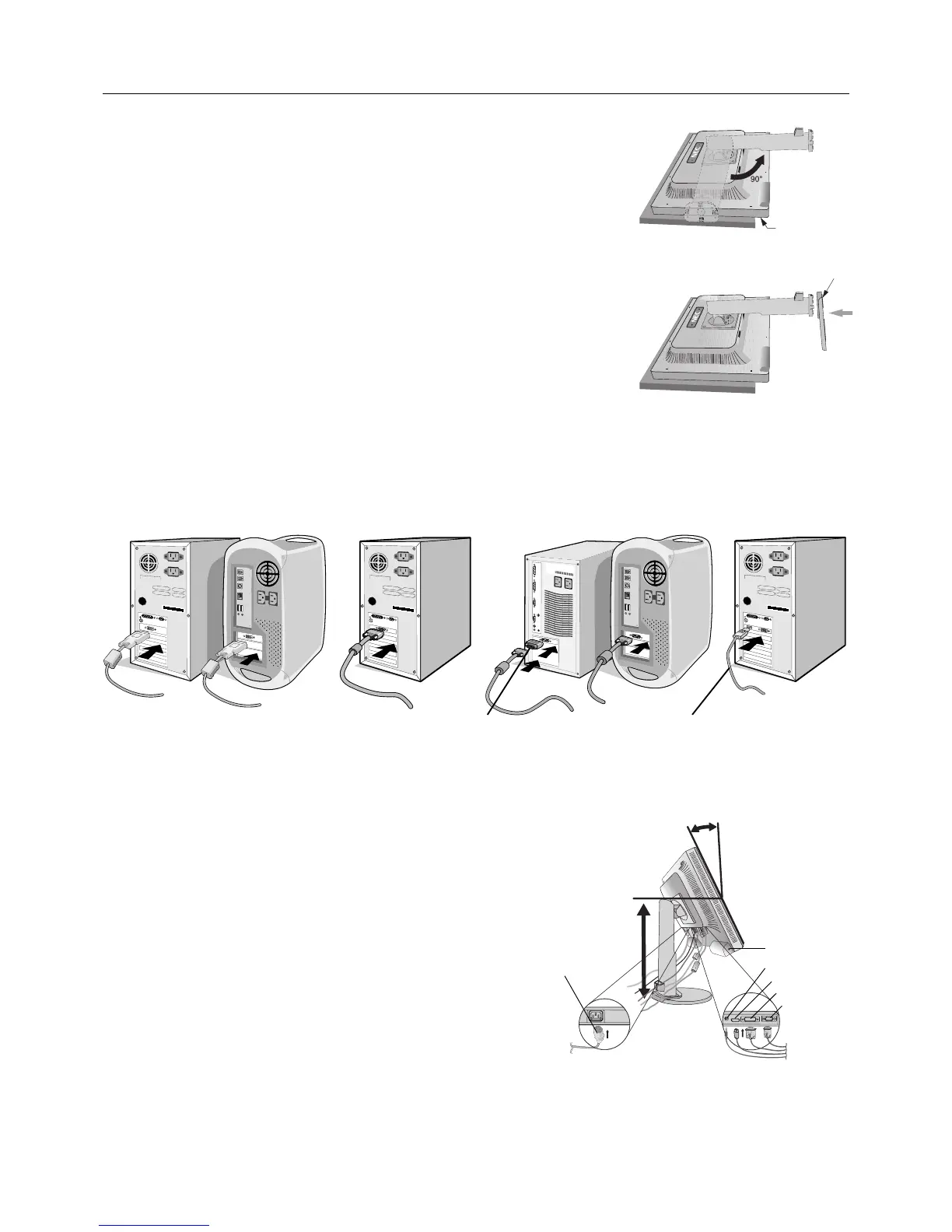

To attach the Base to the LCD stand:
1. Place the monitor face down on a non-abrasive surface (Figure 1).
NOTE: Handle with care when monitor facing down, for avoiding damage to the front control
buttons.
2. Please rotate the stand 90 degrees as shown in Figure 1.
NOTE: Handle with care when pulling the stand.
3. Attach the base to the stand and properly lock screw of base’s bottom (Figure 2).
NOTE: Reverse this procedure if you need to re-pack the monitor.
To connect the LCD monitor to your system, follow these instructions:
NOTE: Make sure to read “Recommended Use” (page 3) before installation.
1. Turn off the power of your computer.
2. For a PC or MAC with DVI digital output: Connect the DVI signal cable to the
connector of the display card in your system (Figure A.1). Tighten all screws.
For a PC with Analog output: Connect a 15-pin mini D-SUB signal cable to the
connector of the display card in your system (Figure A.2).
For a MAC: Connect a Macintosh cable adapter (not included) to the computer, then attach the 15-pin mini D-SUB signal
cable to the Macintosh cable adapter (Figure A.3).
NOTE: Some Macintosh systems do not require any Macintosh cable adapter.
For a PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display card in your system
(Figure A.4).
Figure A.1
Figure A.3
Macintosh Cable
Adapter
(not included)
Figure A.2
Figure A.4
DisplayPort cable
(not included)
NOTE: 1. Please use a DisplayPort cable with DisplayPort logo.
2. When removing the DisplayPort cable, hold down the top button to release the lock.
3. Place hands on each side of the monitor to tilt the LCD panel 20-degree angle and lift up
to the highest position.
4. Connect all cables to the appropriate connector on the back of the monitor (Figure B.1).
Connect the Headphone (not included) to the appropriate connector at the left side of
the monitor (Figure B.1).
NOTE: Incorrect cable connections may cause abnormal operation,
damage display quality/components of LCD module and/or
shorten the module’s life.
