NEC MultiSync LCD3215 User Manual

English-7
English
7
DOWN ( ) button
Activates the OSD menu when the OSD menu is turned-off.
Acts as button to move the highlighted area down to
select adjustment items within OSD menu.
8
EXIT button
Activates the OSD menu when the OSD menu is turned-off.
Acts as EXIT button within the OSD to move to previous
menu.
9
Remote control sensor and Power Indicator
Receives the signal from the remote control (when using the
wireless remote control). See also page 9.
Glows green when the LCD monitor is in active mode.
Glows red when the LCD is in POWER OFF mode.
When the LCD monitor is in POWER SAVE mode, it will
glow both green and red. When SCHEDULE is enabled, it
will blink green and glow red. See page 19. When a
component failure is detected within the monitor, the
indicator will blink red.
10
Main Power Switch
On/Off switch to turn main power ON/OFF. See also page 18.
Control Key Lock Mode
This control completely locks out access to all Control Key
functions. To activate the control key lock function, press both
and and hold down simultaneously for more than
3 seconds. To resume user mode, press both and and
hold simultaneously for more than 3 seconds.
1
POWER button ( )
Switches the power on/off. See also page 18.
2
MUTE button
Switches the audio mute ON/OFF.
3
INPUT button
Acts as SET button within OSD menu. Toggle switches
between [RGB1], [RGB2], [RGB3], [DVD/HD], [VIDEO(S)] or
[VIDEO].
4
PLUS (+) button
Acts as (+) button to increase the adjustment with OSD menu.
Increases the audio output level when the OSD menu is
turned off.
5
MINUS (-) button
Acts as (-) button to decrease the adjustment with OSD menu.
Decreases the audio output level when the OSD menu is
turned off.
6
UP ( ) button
Activates the OSD menu when the OSD menu is turned-off.
Acts as button to move the highlighted area up to select
adjustment items within OSD menu.

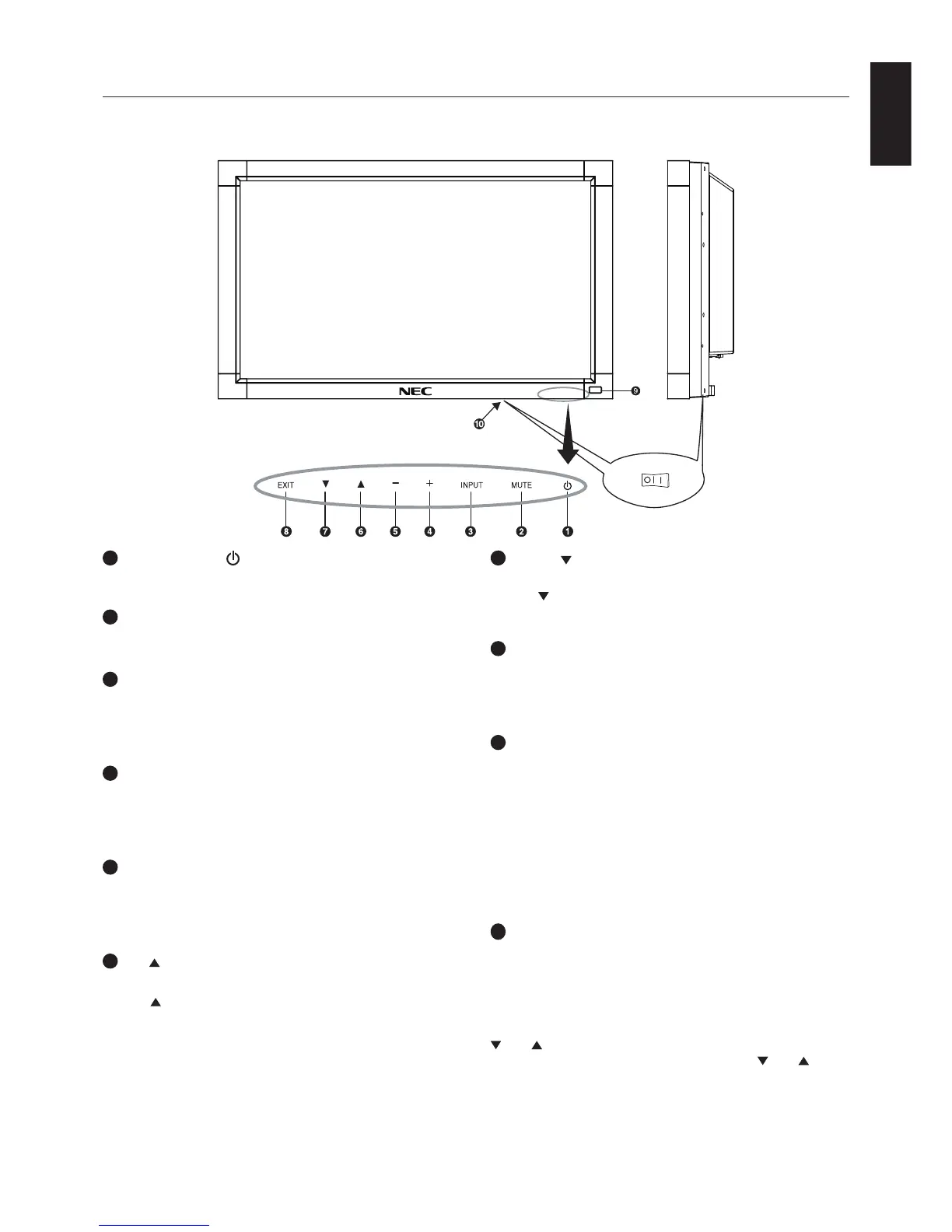

Control Panel
Parts Name and Functions
OFF ON

NEC MultiSync LCD3215 Specifications

General

Pixel pitch	0.511 x 0.511 mm
Aspect ratio	16:9
Response time	9 ms
Display diagonal	32 \
Display resolution	1360 x 768 pixels
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Display brightness (typical)	500 cd/m²
Audio input	Yes
DVI-D ports quantity	1
DVI-I ports quantity	0
Product color	Black
Market positioning	-
Panel mounting interface	400 x 200 mm
Power consumption (typical)	115 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth (without stand)	133 mm
Width (without stand)	789 mm
Height (without stand)	476.3 mm
Weight (without stand)	13100 g
